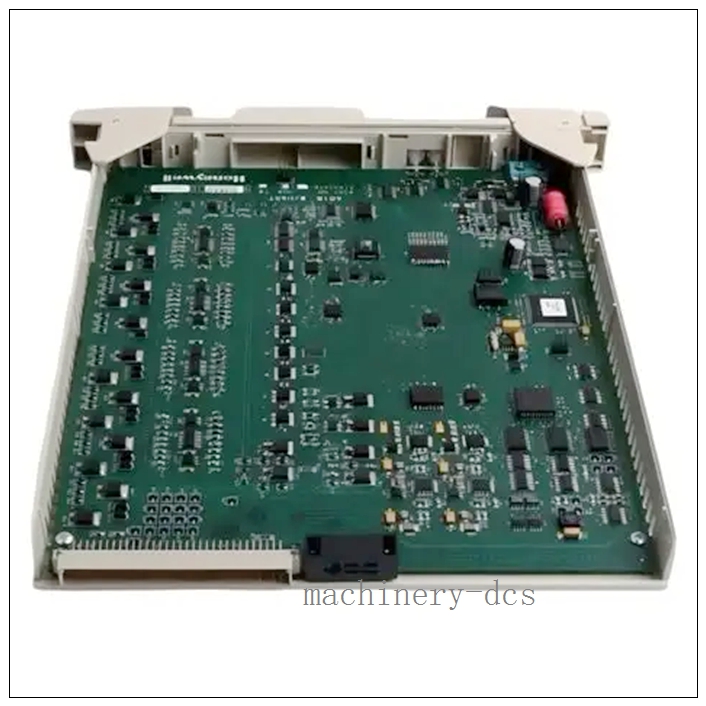

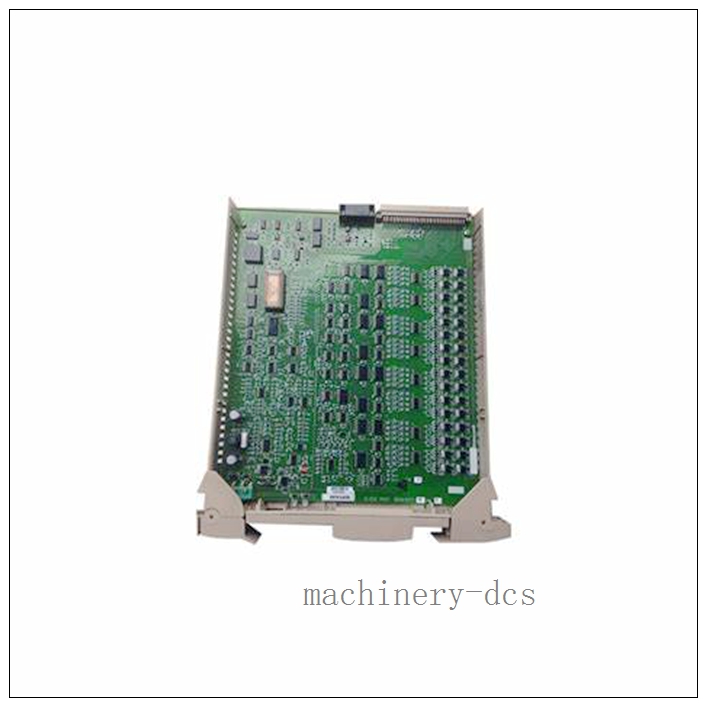

Honeywell MC-PHAO01 51403476-150 16-Channel HART-enabled High-Performance Analog Output Module
Detailed Product Information
The Honeywell MC-PHAO01 is a high-density, HART 5 and 6 compliant analog output module purpose-built for Honeywell Experion PKS and C300 distributed control systems. It packs 16 independent analog output channels into a single compact unit, eliminating the need for extra I/O rack space and solving the common pain point of overcrowded marshalling cabinets in large-scale industrial automation projects. The module features 16-bit high-resolution digital-to-analog conversion, which delivers ultra-fine valve positioning control and effectively minimizes process oscillations, directly improving product quality and energy efficiency in high-stakes chemical and refining operations. It continuously monitors the integrity of every 4-20mA output loop and the health status of connected smart field devices, automatically detecting open circuits, high-resistance connections and device-specific alerts to help maintenance teams shift from reactive to predictive maintenance strategies. When deployed in a redundant configuration, it supports fully bumpless transition, ensuring seamless, uninterrupted handover if a hardware fault occurs without disrupting critical process control.
Technical Specifications
- Manufacturer: Honeywell
- Part Number: MC-PHAO01 (51403476-150)
- Product Type: HART-enabled High-Density Analog Output Module
- Output Channels: 16 isolated independent analog output channels
- Supported Signal Ranges: 4–20 mA, 0–20 mA, 0–10 VDC, 1–5 VDC
- Load Resistance: 0 to 750 ohms for 4-20mA current output
- Measurement Accuracy: ±0.05% of full span
- Resolution: 16-bit high-precision digital-to-analog conversion
- HART Communication: Fully compliant with HART 5 and HART 6 protocols
- Power Supply: 24 V DC nominal input via system backplane
- Maximum Power Consumption: 5 W
- Operating Temperature Range: -20°C to 70°C (-4°F to 158°F)
- Net Weight: 690g
- Hot-Swap Capability: Yes, supports live insertion/removal without system shutdown
- Redundancy Support: Bumpless redundant transition for fault-tolerant configurations
- Warranty: 12-month original manufacturer warranty
- Origin: USA
MC-PHAO01
Compatibility & Installation Pitfalls
Compatibility
- Natively interoperable with Honeywell Experion PKS and C300 distributed control system platforms
- Fully compatible with Honeywell dedicated I/O racks, backplanes and matched redundant power supply units
- Seamlessly supports all standard 4-20mA field actuators, control valves, positioners and HART-enabled smart field devices
- Works with Honeywell DCS engineering software for full configuration, HART device parameterization and advanced diagnostic operations
- Matches with industry standard 2.5 mm² shielded field wiring without signal attenuation or control drift
Installation Pitfalls
- Never install the MC-PHAO01 in a slot designated for analog input modules. Mismatched slot configuration will cause backplane communication errors and prevent all output channels from being recognized by the controller.
- Do not connect field loads with resistance exceeding 750 ohms to the 4-20mA output channels. Overloaded loops will cause output signal distortion, trigger overcurrent protection and even damage the output drive circuits.
- Avoid routing analog output signal cables in the same cable tray as high-power variable frequency drive or AC motor power cables. Severe electromagnetic interference will introduce signal noise and degrade the module’s ±0.05% full-scale control accuracy.
- Never perform hot-swap replacement while critical process control loops relying on this module are in automatic operation without pre-engaging the maintenance bypass. This action may cause momentary signal loss and trigger unplanned process trips.
- Do not mix MC-PHAO01 modules with drastically different firmware revisions in the same control rack. Inconsistent firmware versions will cause asynchronous HART communication timing and unexpected smart device parameter access failures.
Standard Operating Procedure
- Pre-installation verification: Inspect the MC-PHAO01 module for physical damage on circuit boards and connectors, confirm the I/O rack backplane 24V DC power output is stable within the rated operating range.
- Mechanical mounting: Align the module with the rack guide rails, slide it smoothly into the designated analog output slot, and secure the front panel locking screws to ensure full and reliable electrical contact with the backplane.
- Field wiring termination: Connect all field actuators, control valves and HART smart devices to their corresponding channel terminals, torque every connection to the manufacturer specified value, and apply clear permanent labels for each channel with its corresponding process tag number.
- Power-on configuration: Access the Honeywell DCS engineering workstation, assign unique channel tags, configure signal type, range, output scaling parameters and enable HART communication for each connected smart field device.
- Functional validation: Send calibrated reference output values to every channel one by one, confirm the measured output signal at the field device end falls within the specified ±0.05% accuracy range, verify loop fault detection and HART device diagnostic functions work correctly under simulated fault conditions.
- Commissioning handover: Export and save the final configuration profile to secure backup, complete the loop check and calibration log, and confirm all analog output points are operating normally before releasing the system to full automatic process control.
Typical Application Scenarios
- Petrochemical refining operations: Delivers high-precision 4-20mA control signals to process control valves, supporting fine-tuned closed-loop control for distillation columns, reactors and heat exchangers to maximize product yield and energy efficiency.
- Chemical processing plants: Leverages its native HART communication capability to access real-time diagnostic data from smart valve positioners, enabling predictive maintenance and reducing unplanned downtime for critical production loops.
- Oil and gas production facilities: Deploys in hazardous process zones to control choke valves, flow control actuators and safety shutdown devices, with its wide operating temperature range adapting to extreme outdoor and onshore installation conditions.
- Power generation and utilities: Provides accurate analog output signals to boiler control valves, turbine governing actuators and feedwater control systems, ensuring stable and precise process regulation for large-scale power generation units.
- Pharmaceutical manufacturing facilities: Delivers highly accurate control signals to precision dosing pumps and process control valves, meeting strict regulatory requirements for process control accuracy and batch production consistency.
Recommended Supporting Components
- Honeywell Experion PKS dedicated I/O rack with matched redundant power supply unit
- Honeywell certified HART-enabled smart valve positioners, control actuators and 4-20mA field devices
- Shielded twisted-pair analog signal cables for interference-free field signal transmission
- Honeywell official DCS engineering configuration software and HART device management toolkit
- Flame-retardant 2.5 mm² industrial field wiring terminals with certified strain relief
Related Part Number Recommendations
- MC-PAOY22: 16-channel non-HART analog output module, for cost-effective standard 4-20mA output applications without smart device communication requirements
- MC-PAIH03: 16-channel high-performance analog input module, for complementary high-accuracy process signal acquisition
- MC-PDIX02: 16-channel digital input module, for discrete status signal collection from field switches and safety interlock devices
- MC-TAMT04: dedicated temperature monitoring module, optimized for high-precision RTD and thermocouple signal processing
- 51403476-150: Original factory part number identifier for MC-, for spare part ordering and full product traceability
