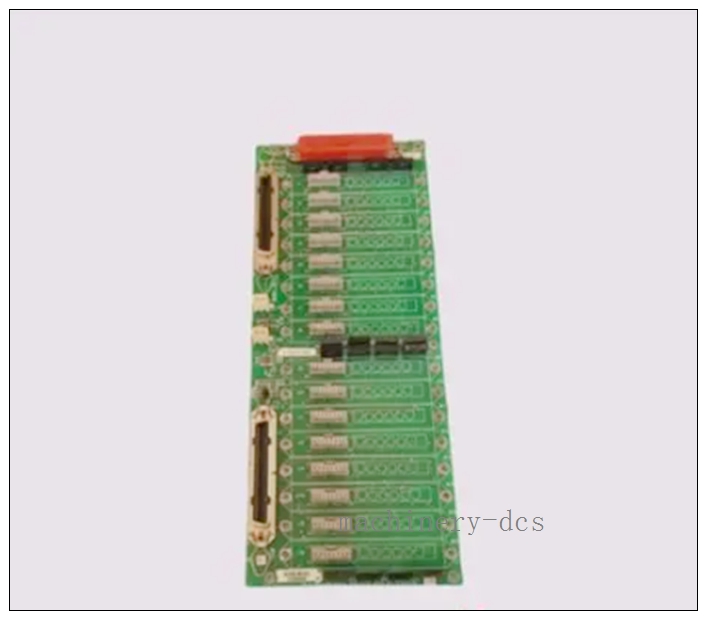

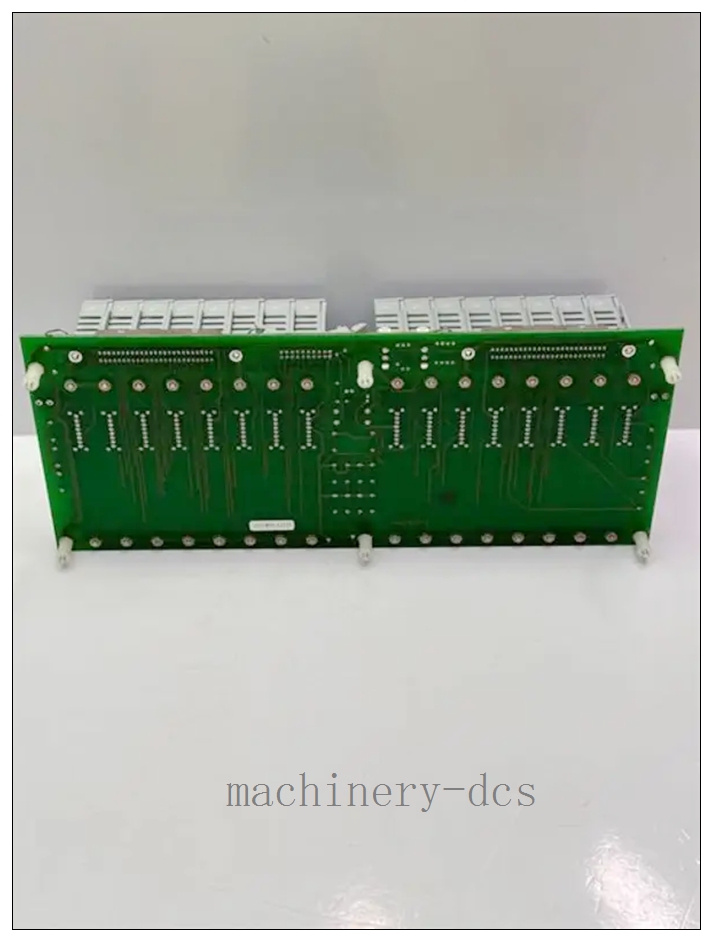

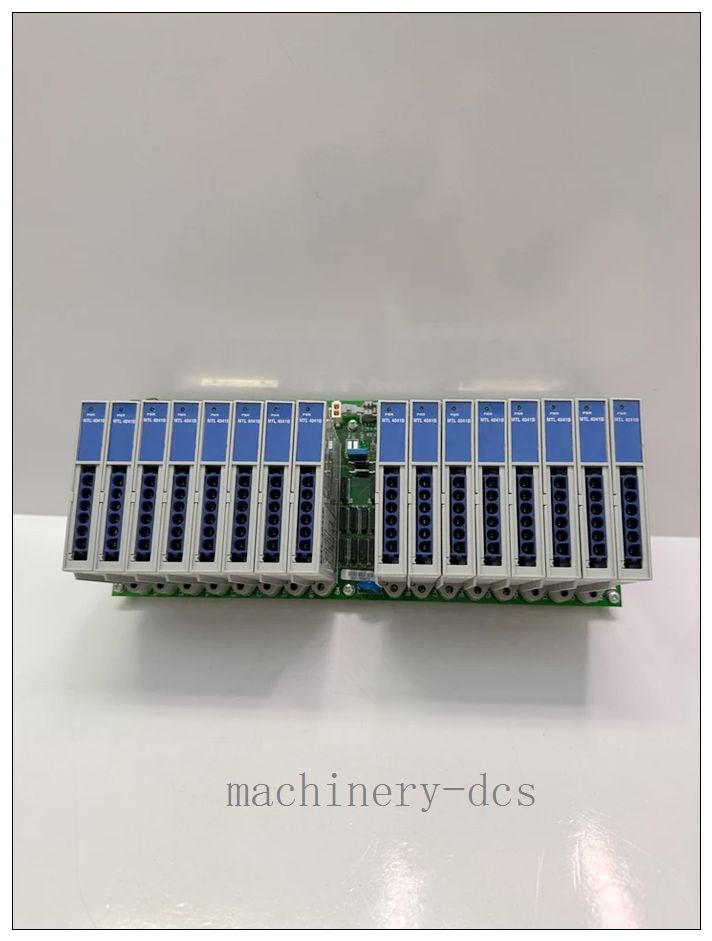

Honeywell MC-GAIH13 51304718-175 Redundant 16-Channel High-Level Analog Input Field Termination Assembly (FTA)
Detailed Product Information
The Honeywell MC-GAIH13 51304718-175 is a heavy-duty industrial Field Termination Assembly purpose-built for high-level analog input applications with full redundancy support. It provides 16 channels of high-precision analog input termination, designed specifically to connect directly to field devices such as process transmitters and industrial sensors. This FTA features a medium heavy-duty reinforced industrial grade design, which is superior to the -100 and -125 variants and offers enhanced performance compared to standard non-reinforced FTAs. It is engineered to deliver highly reliable signal transmission and preserve full data integrity even in the most demanding critical industrial environments, making it ideal for mission-critical process control loops that cannot tolerate signal loss or data corruption. The entire 51304718 series shares identical core circuit topology with full pin-to-pin electrical interchangeability, allowing technicians to perform emergency field replacement of lower-grade variants without any additional wiring or configuration modifications.
MC-GAIH13 51304718-175
Technical Specifications
- Manufacturer: Honeywell
- Part Number: MC-GAIH13 51304718-175
- Product Type: Redundancy-capable High-Level Analog Input Field Termination Assembly (FTA)
- Number of Input Channels: 16 high-level analog input channels
- Conformal Coating: Medium-thick reinforced conformal PCB coating for enhanced protection
- EMI Filtering: Three-stage HART-lossless differential EMI filtering
- Surge Protection: High-energy TVS surge suppression
- Working Ambient Temperature: 0°C to 48.9°C (32 °F to 120 °F)
- Operating Ambient Temperature: 0°C to 38.9°C (32 °F to 102 °F)
- Operating Relative Humidity: 5% to 90% non-condensing
- Shipping Temperature: -28.9°C to 48.9°C (-20 °F to 120 °F)
- Connection Type: Compression terminal connections for secure, reliable field wiring
- Compliance: CE marked for full compliance with international industrial standards
- Net Weight: 2000g
- Condition: Brand new in stock
- Warranty: 12 months official manufacturer warranty
- Origin: USA
Compatibility & Installation Pitfalls
Compatibility
- Natively interoperable with Honeywell Experion PKS DCS and matched high-level analog input UCN IOP modules
- Fully compatible with Honeywell redundant control system architectures and standard DCS marshalling cabinet mounting rails
- Seamlessly supports all standard 4-20mA high-level analog field transmitters, industrial sensors and HART smart field devices
- Shares full pin-to-pin electrical interchangeability with all other variants in the 51304718 series for emergency field replacement
- Matches with industry standard 2.5 mm² shielded twisted-pair field wiring without signal attenuation or measurement drift
Installation Pitfalls
- Never install the MC-GAIH13 51304718-175 in a termination slot designated for non-redundant FTA modules. Mismatched slot configuration will break the redundant signal path and disable the module’s high-availability operation capability.
- Do not connect field signals with voltage levels exceeding the module’s maximum rated input tolerance directly to the input terminals. Uncontrolled overvoltage transients will permanently damage the internal signal conditioning circuits.
- Avoid routing analog input signal cables connected to this FTA in the same cable tray as high-power variable frequency drive or AC motor power cables. Severe electromagnetic interference will degrade the module’s measurement accuracy and cause unexpected signal noise.
- Never perform wiring modification or FTA replacement while critical process control loops relying on this module are in automatic operation without pre-engaging the configured maintenance bypass. This action may cause momentary signal loss and trigger unplanned process trips.
- Do not use uncertified non-reinforced conformal coated FTA variants as a long-term replacement for the MC-GAIH13 51304718-175 in cabinets with sustained elevated humidity, heavy dust and mild-moderate corrosive chemical vapors. This will lead to premature circuit corrosion and unexpected field failures.
MC-GAIH13 51304718-175
Standard Operating Procedure
- Pre-installation verification: Inspect the MC-GAIH13 51304718-175 FTA for physical damage on circuit boards and terminals, confirm the DCS marshalling cabinet environment meets the module’s temperature and humidity operating requirements.
- Mechanical mounting: Secure the FTA firmly to the standard marshalling cabinet mounting rails, ensure the unit is fixed stably without any loose movement that could cause terminal connection issues during equipment operation.
- Field wiring termination: Connect all field transmitters and sensors to their corresponding compression terminals on the FTA, torque every connection to the manufacturer specified value, and apply clear permanent labels for each channel with its corresponding process tag number.
- System side connection: Route the pre-fabricated FTA-to-controller communication cable between the MC- and the matched analog input IOP module, confirm all connectors are fully seated and locked in place.
- Functional validation: Inject calibrated standard reference signals to every channel one by one, confirm the measured value displayed on the DCS HMI falls within the specified accuracy range, verify all channel signal transmission paths are fully intact.
- Commissioning handover: Export and save the final channel mapping documentation to secure backup, complete the loop check and wiring verification log, and confirm all analog input points are operating normally before releasing the system to full operational service.
Typical Application Scenarios
- Petrochemical refining operations: Deploys in marshalling cabinets with sustained elevated humidity, heavy dust and mild-moderate corrosive chemical vapors, providing 16-channel high-reliability signal termination for critical process transmitters.
- Chemical processing plants: Leverages its three-stage EMI filtering and high-energy surge suppression design to ensure stable signal transmission for process loops located in high electromagnetic interference industrial zones.
- Oil and gas production facilities: Supports redundant high-availability signal acquisition architectures, delivering uninterrupted process signal termination for onshore wellhead and pipeline monitoring control systems.
- Power generation and utilities: Adapts to the harsh operating environment in thermal power plant DCS marshalling rooms, providing reliable signal termination for boiler temperature, pressure and flow process transmitters.
- Industrial manufacturing facilities: Serves as a robust signal termination hub for continuous production process control loops, supporting 24/7 non-stop operation to maximize production uptime.
Recommended Supporting Components
- Honeywell Experion PKS DCS high-level analog input UCN IOP module with redundancy support
- Honeywell certified 4-20mA HART smart process transmitters and industrial field sensors
- Shielded twisted-pair analog signal cables for interference-free field signal transmission
- Honeywell official pre-fabricated FTA-to-IOP communication cables with certified pinout matching
- Flame-retardant 2.5 mm² industrial field wiring terminals with certified strain relief
Related Part Number Recommendations
- 51304718-100: Standard non-reinforced 16-channel analog input FTA, for cost-effective deployment in mild industrial environments
- 51304718-125: Light-duty reinforced 16-channel analog input FTA, for general industrial environments with moderate dust and humidity
- 51304718-200: Heavy-duty reinforced 16-channel analog input FTA, for extremely harsh industrial environments with severe corrosive vapors
- 51304718-250: Ultra-heavy-duty reinforced 16-channel analog input FTA, for the most demanding extreme industrial operating conditions
- CC-PAIH01: Honeywell redundant 8-channel HART high-performance analog input IOTA module, for complementary high-accuracy redundant process signal acquisition
