Description
Honeywell FC‑PSU‑UNI2450U Universal Power Supply Unit
Title
Honeywell FC‑PSU‑UNI2450U Universal 24VDC Power Supply for FSC / Safety Manager SIS System
Meta‑Description
Honeywell FC‑PSU‑UNI2450U is universal AC‑to‑24VDC power supply unit for Honeywell FSC and Safety Manager SIS racks, universal wide‑range AC input, 5A 24VDC output, supports N+1 redundant parallel operation, DBM diagnostic bus interface for SIS fault monitoring, SIL2 capable, used to power safety controller, I/O modules and field safety loops in petrochemical ESD systems.
Product Core Overview
FC‑PSU‑UNI2450U is rack‑mount / DIN‑rail universal power supply unit for Honeywell Safety Manager / FSC safety‑instrumented system. It converts worldwide AC mains input into regulated 24 VDC power to feed SIS controller, backplane I/O modules and field‑side safety devices.
This power supply supports N+1 redundant parallel operation with active load‑sharing to eliminate single‑point‑of‑failure for safety racks. Integrated DBM diagnostic bus communicates power‑supply health, input‑fail, output‑overload, over‑temperature status to SIS controller for alarm and event logging. Built‑in comprehensive electronic protection: over‑voltage, over‑current, short‑circuit and over‑temperature protection. Conformal coated PCB for harsh cabinet environment. Suitable for safety‑critical ESD and interlock applications in oil‑gas and chemical plants.
Important: This is external power supply feeding FSC rack backplane, not slot‑plug‑in backplane module.

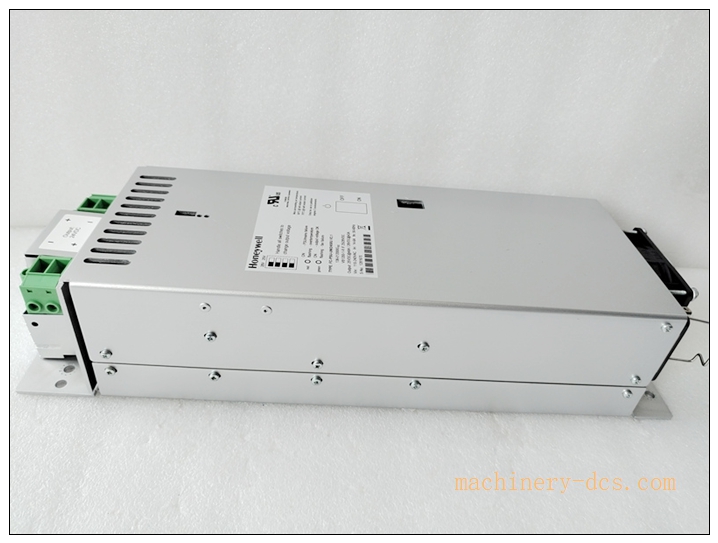

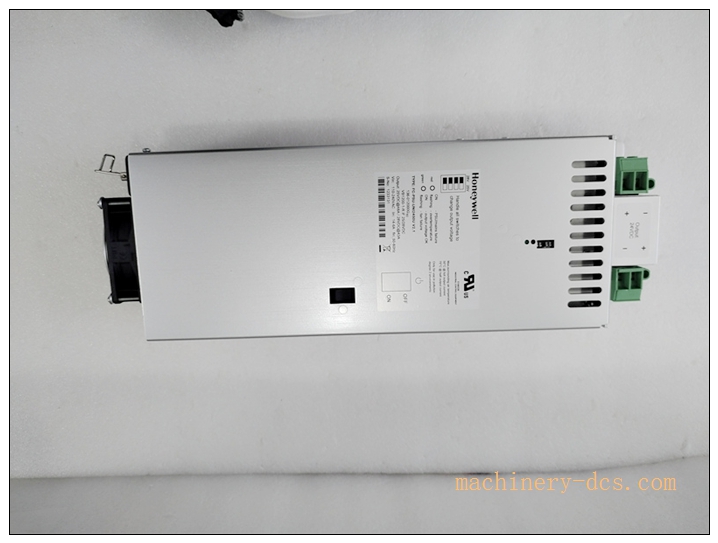

FC-PSU-UNI2450U
Main Technical Specifications
| Item | Parameter |
|---|---|
| Part Number | FC‑PSU‑UNI2450U |
| Module Type | Universal AC‑DC Power Supply Unit |
| Compatible System | Honeywell FSC / Safety Manager SIS |
| Input Voltage | 100‑240 VAC (operating range 93‑253 VAC), 47‑63 Hz |
| Output | 24 VDC regulated, 5 A max, 120 W max power |
| Parallel Function | N+1 redundant, active load‑sharing supported |
| Diagnostics | DBM diagnostic bus interface, dry‑contact fault relay, LED status indicators (OK / Fault) |
| Protection | OVP over‑voltage, OCP over‑current, SCP short‑circuit, OTP over‑temperature auto‑derating / shutdown |
| Safety Certification | CE, UL508, IEC 61508 SIL2 capable, ATEX Zone 2 (FA variant) |
| Operating Temperature | −5 °C ~ +70 °C (derate above 60 °C) |
| Storage Temperature | −40 °C ~ +85 °C |
| Relative Humidity | 5‑95 % non‑condensing |
| Mounting | DIN‑rail or panel‑mount installation |
| Conformal Coating | Yes, PCB conformal coating for industrial environment |
Quality Control Procedures
- Visual & Mechanical Incoming Inspection: Inspect enclosure, PCB conformal coating, terminal blocks, labeling and serial‑number marking. Serial‑number recorded for full‑lifecycle traceability.
- Input‑output Electrical Test: Full‑load, half‑load and no‑load test; verify output voltage accuracy, ripple performance under full AC input‑voltage range.
- Protection‑function Verification: Trigger over‑voltage, over‑current, short‑circuit and over‑temperature conditions; confirm protection shutdown and auto‑recovery characteristics.
- Redundant Parallel Load‑sharing Test: Two units run in parallel; validate even current distribution under varying load conditions.
- DBM Diagnostic‑bus & Relay‑alarm Test: Simulate power‑supply faults, verify fault status correctly transmitted to SIS controller and dry‑contact relay changes state.
- Environmental Stress Screening: Temperature‑cycle test across operating temperature range.
- EMC Compatibility Test: Industrial electromagnetic‑interference test.
- Final End‑of‑Line Validation & Archiving: Complete full‑function test suite; test records archived bound to unit serial‑number before factory release.

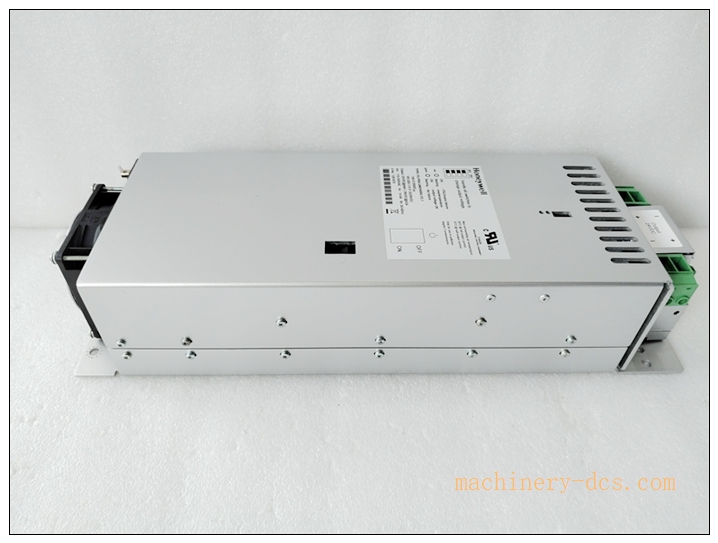

FC-PSU-UNI2450U
Related Brand Model Recommendations
- FC‑SDIL‑160824VDC: 16‑channel loop‑monitored safety digital‑input module.
- FC‑SDO‑0824: 8‑channel safety solid‑state digital‑output module.
- FC‑BKM‑001: Battery & key‑switch module for FSC/Safety Manager rack.
- Matching Controller: Honeywell Safety Manager / FSC safety processor unit.
- System Accessories: FSC rack chassis, DBM diagnostic‑bus cable, power distribution bus‑bar, surge‑protection SPD devices.
Frequently Asked Questions (FAQ)
Q1: Can FC‑PSU‑UNI2450U run in redundant N+1 configuration? A: Yes. Multiple units can be connected in parallel with active load‑sharing to implement N+1 redundancy, removing single‑point‑failure risk for SIS rack power supply.
Q2: What is DBM diagnostic bus? A: DBM (Diagnostic Bus Module) interface transmits power‑supply health information (input loss, overload, overtemperature) to Safety Manager / FSC controller; fault events will be logged in SIS event log and trigger system alarms.
Q3: Can I hot‑swap this power‑supply unit? A: Only under redundant N+1 configuration. If only single power supply feeds SIS rack, power must be shut down before replacement. Follow Honeywell SIS maintenance manual strictly.
Q4: What safety level does FC‑PSU‑ achieve? A: SIL‑2 capable per IEC 61508. To achieve SIL‑3 system‑level requirement, redundant power architecture is required as per system safety manual.
Q5: Is this module plugged into FSC rack slot? A: No. It is standalone DIN‑rail / panel‑mount power supply, external to FSC rack chassis, provides 24VDC power to rack backplane.
Q6: Can I repair unit on‑site? A: No. Unauthorized disassembly voids certification and warranty. Return defective unit to authorized service centre.
Installation & Configuration Guide
Pre‑Installation
- Inspect unit for transit damage. Confirm part‑number FC‑PSU‑ and serial‑number match purchase‑order.
- Confirm SIS rack total power consumption, define power‑supply quantity (single or N+1 redundant).
- Prepare AC input power cable, 24VDC output power cable, DBM diagnostic‑bus cable, power distribution bus‑bar, SPD surge‑protection device.
- Review SIS safety drawing, confirm power‑derating requirement for cabinet ambient temperature.
Mechanical Installation
- Mount FC‑PSU‑ on DIN‑rail or cabinet panel, maintain minimum ventilation clearance around unit for heat dissipation.
Important: For redundant configuration, install multiple power‑supply units with independent AC input sources for maximum fault tolerance.
Electrical Wiring
- Wire AC input side, connect surge‑protection SPD device as per site specification.
- Wire 24 VDC output to SIS rack power‑input terminal, avoid daisy‑chain wiring; use power bus‑bar for parallel‑redundant configuration.
- Connect DBM diagnostic‑bus cable between power‑supply and FSC / Safety Manager rack.
- Complete insulation‑resistance check for AC‑input and DC‑output circuits before power‑on. Implement good cabinet chassis grounding.
System Configuration & Commissioning
- Apply AC input power, observe power‑supply LED status: OK LED should illuminate normally. Measure 24 VDC output voltage within specification range.
- Connect Safety Builder configuration software to SIS controller, confirm SIS system correctly receives FC‑PSU‑ health status via DBM bus.
- Simulate power‑supply fault conditions (input loss, overload), verify SIS generates correct alarm and event log.
- Under full rack load condition, check output voltage and module temperature; confirm derating requirements are satisfied.
- Save full‑project configuration backup file, place power‑supply and SIS rack into normal safety‑interlock operation.
