Honeywell DC-PDOD51 (51454820-175) C200/C300 32-Channel Isolated 24VDC Digital Output Module
Product Description
The DC-PDOD51 (part code 51454820-175) is a hot-swappable digital output electronic module for Honeywell Experion C200 / C300 DCS control system. It provides 32-channel 24VDC solid-state source output, controlled by C-series controller backplane commands. It drives field 24VDC loads including solenoid valves, contactor coils, indicator lamps and ESD auxiliary interlock signals. Each channel has electronic overcurrent protection, and the module implements 1000Vrms galvanic isolation between DCS logic side and field wiring side to protect the DCS rack from field surge and back EMF damage. It supports configurable safe-state strategy: hold last value or force to predefined safe state upon fault. This module has conformal coated PCB option for corrosive plant environments, widely used in petrochemical, oil & gas and power plant Experion DCS as critical on-off interlock spare module.
DC-PDOD51
Technical Specifications
- Part Number: DC-PDOD51, 51454820-175
- Manufacturer: Honeywell
- Series: Experion C200/C300 DCS
- Device Type: 32-CH Isolated 24VDC Solid-State Digital Output Module
- Output Type: Source (high-side switch)
- Channels: 32 digital output channels
- Nominal Field Voltage: 24VDC, max 30VDC
- Rated Current: 100mA per channel
- Max turn-on/off time: 10ms
- Off-state leakage: Max 5μA
- Isolation: 1000Vrms system-to-field galvanic isolation
- Protection: Per-channel electronic overcurrent protection
- Output mode: Latched, pulsed, PWM configurable
- Safe state: Hold last value / safe value shed configurable
- PCB: Conformal coating available
- Power Supply: Powered by C-series backplane; external 24VDC field power required
- Operating Temperature: -40°C ~ +70°C
- Storage Temperature: -40°C ~ +85°C
- Relative Humidity: 5%~95%, non-condensing
- Mounting: C-series standard DIN rail I/O rack, hot-swappable
- Weight: Approx. 0.38 kg
- Certifications: CE
Key Features
- 32-channel high density 24VDC source solid-state output, saves cabinet rack space
- 1000Vrms galvanic isolation between DCS backplane and field wiring
- Per-channel electronic overcurrent protection, prevents field short circuit damaging module
- Flexible output modes: latched, pulse and PWM for different field control requirements
- Configurable safe-state logic for emergency interlock and shutdown application
- Conformal coated PCB version available for dusty, corrosive industrial environments
- Hot-swappable design for maintenance without DCS system shutdown
- Channel diagnostic status feedback to Experion controller for fault alarm

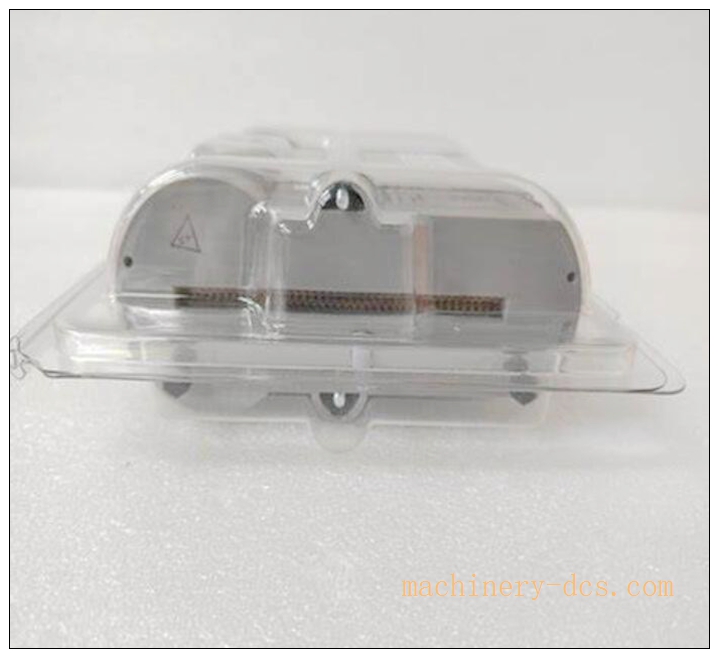

DC-PDOD51
Application Scenarios
- Petrochemical plant emergency shutdown ESD auxiliary solenoid valve control
- Thermal power plant boiler auxiliary pump, fan interlock and alarm lamp output
- Oil & gas pipeline valve, solenoid and annunciator on-off control
- Chemical reactor safety interlock and field actuation control
- Fertilizer plant process emergency trip and alarm signal output
- Water treatment plant pump and valve interlock control
- Pulp & paper mill machinery emergency interlock system
- Experion C200/C300 DCS spare replacement and system retrofit
Matching / Auxiliary Components
- Honeywell C200 / C300 controller and I/O rack backplane
- C-series I/O terminal personality module
- 24VDC isolated field power supply
- Shielded twisted pair field wiring cables and terminal blocks
- Surge protection barrier for field output circuit
- Experion PKS engineering station and Control Builder software
- DIN rail rack mounting accessories
- Spare terminal cover and retaining clips
Related Honeywell Experion C-series I/O Models (9 pcs)
- DC-PDOD51 32CH 24VDC Digital Output Module
- CC-PDIL01 32CH Digital Input Module
- CC-PAIX01 Analog Input Module
- CC-PAOY01 Analog Output Module
- CC-PRTD01 RTD Temperature Input Module
- CC-PTUI01 Thermocouple Input Module
- CC-PCNT01 Pulse Counter Module
- CC-PDOB01 Relay Output Module
- CC-PCF90 C300 Controller Module
