GE IS200WETBH1BAA Mark VI Speedtronic Wet Terminal Board
Product Description

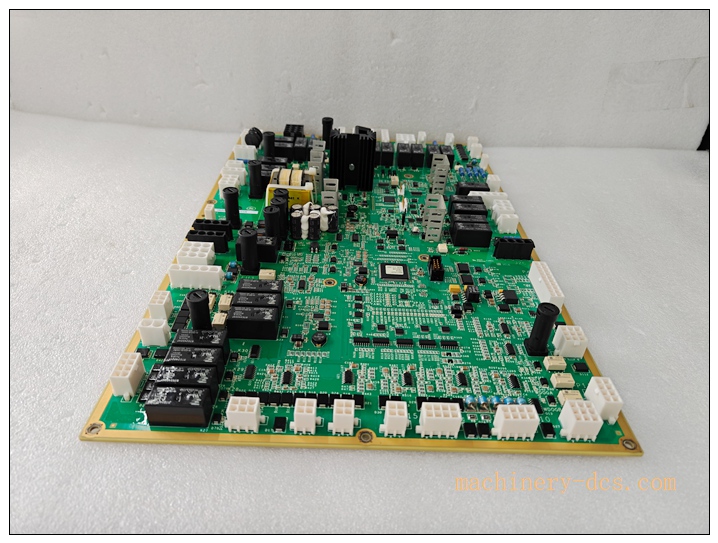

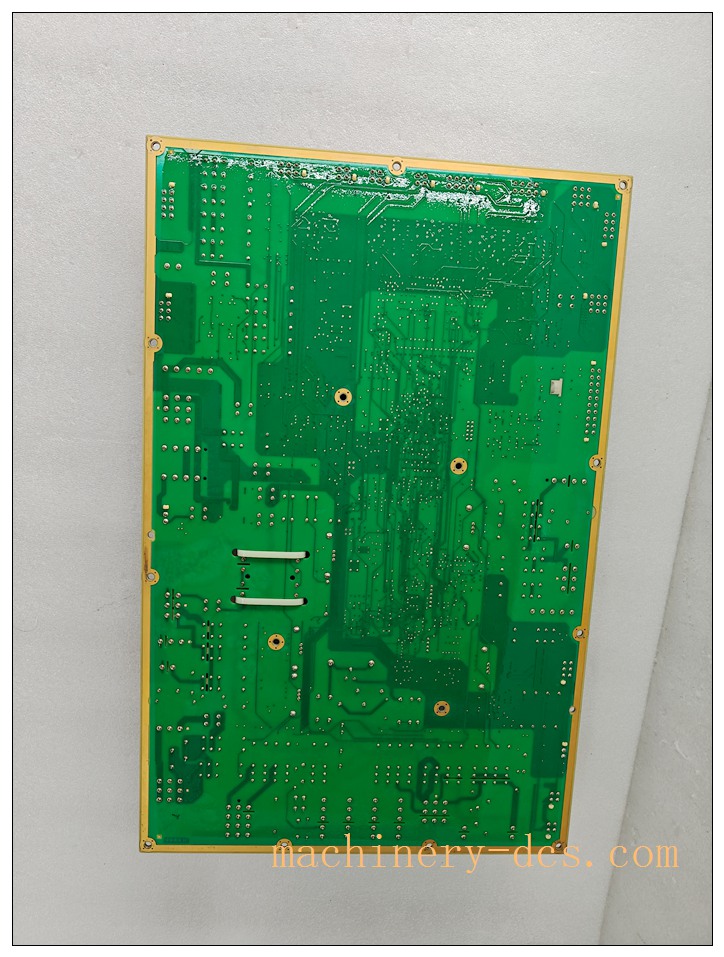

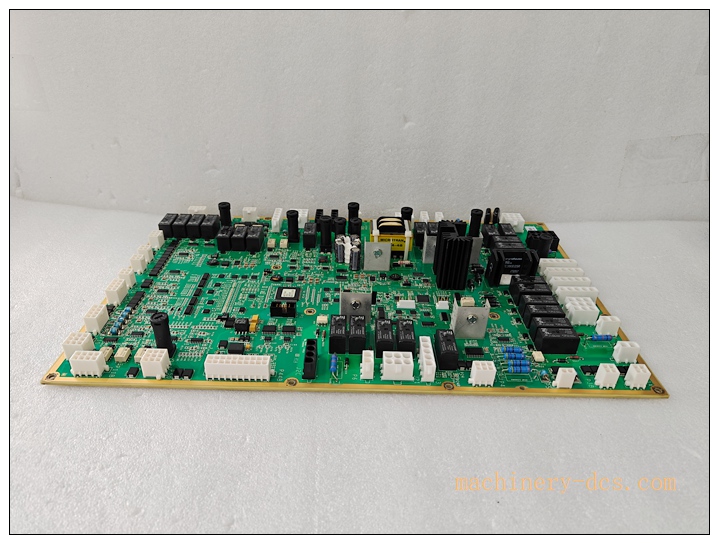

The IS200WETBH1BAA is a wet terminal board for GE Speedtronic Mark VI turbine control system. Unlike passive dry terminal boards, this wet board integrates field sensor power supply, relay circuits, fuses, voltage regulators and signal conditioning hardware on one PCB. It serves as the electrical interface between field instruments and Mark VI front-side I/O processor cards, delivering conditioned power and sensor signals for flame detection, vibration monitoring, shaft voltage measurement and analog/digital field signals. The board is densely populated with relays, transformers, fuses and protection components, with conformal coating for cabinet environmental protection. It supports simplex and TMR triple modular redundant architectures, designed for continuous, high-reliability operation in power plant turbine control cabinets.
IS200WETBH1BAA
Technical Specifications
- Part Number: IS200WETBH1BAA
- Manufacturer: GE (GE Vernova)
- Series: Speedtronic Mark VI
- Product Type: Wet Terminal Board (WETB)
- Input Power: 24 VDC
- On-board Components: 1 transformer, 30+ relays, 10 fuses, voltage regulators, heat sinks
- Connectors: Multiple pin headers and multi-position female jack connectors for internal rack wiring
- PCB Protection: Conformal coating against dust, humidity and airborne contaminants
- Operating Temperature: -30°C ~ +65°C
- Storage Temperature: -40°C ~ +85°C
- Relative Humidity: 5%–95%, non-condensing
- Mounting: Rear chassis mounting inside Mark VI I/O rack
- Supported Architecture: Simplex, TMR triple modular redundancy
- Weight: Approx. 1.4 kg
- Approvals: CE, UL
Key Features
- Wet-type termination board with integrated field power supply and relay circuits
- Built-in fusing and surge protection for field instrument circuits
- Signal conditioning for flame, vibration, shaft voltage and standard analog inputs
- High-density PCB populated with relays, regulators and protection components
- Conformal coating enhances reliability in dusty and humid control cabinet environments
- Compatible with simplex and TMR triple redundant turbine protection systems
- Centralized field wiring termination for simplified maintenance and troubleshooting
- Robust industrial design for long-term continuous operation in power generation sites
Application Scenarios
- Gas turbine and steam turbine Mark VI control cabinets
- Combined cycle power plant turbine monitoring and flame detection
- Generator shaft voltage and vibration signal acquisition
- Turbine flame sensing and combustion monitoring
- Petrochemical large turbine and compressor control systems
- Power plant boiler auxiliary safety monitoring
- Heavy rotating machinery triple redundant protection
- Turbine overspeed and trip related signal conditioning
IS200WETBH1BAA
Matching / Auxiliary Components
- Mark VI I/O processor cards (TERA, TCQA, VIBS modules)
- Mark VI system rack and backplane
- Shielded field cables for vibration probes, flame detectors and transmitters
- Proximity probes, thermocouples, RTD and flame sensors
- Internal rack wiring harness connecting WETB to front I/O packs
- Mark VI controller modules
- ControlST / ToolboxST configuration and diagnostic software
- Redundant 24VDC rack power supply
