GE IS200STAIS2ACB Mark VI Speedtronic STAI Compact Analog I/O Terminal Board

Description

GE IS200STAIS2ACB Mark VI Speedtronic STAI Compact Analog I/O Terminal Board

Product Description

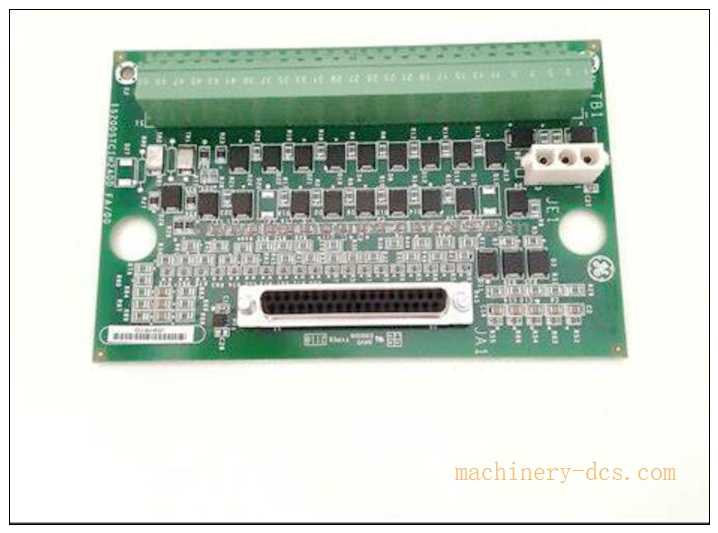

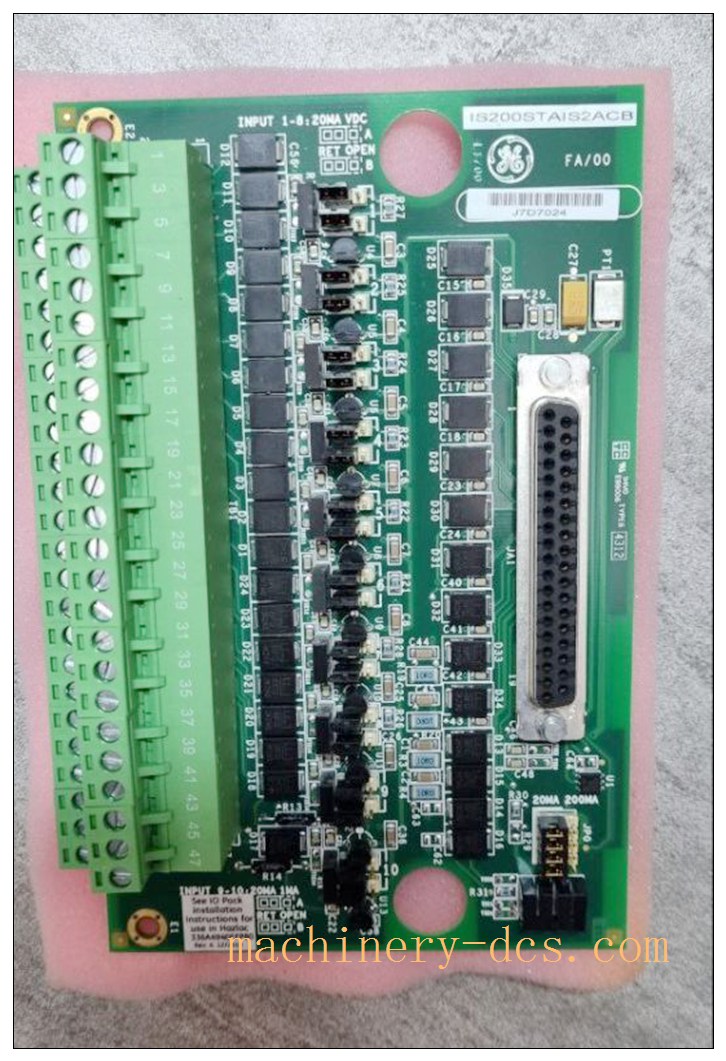

The IS200STAIS2ACB is a compact STAI analog I/O termination board developed for GE Mark VI Speedtronic turbine control systems. It serves as the field wiring interface between analog field instruments and Mark VI I/O packs, handling signal termination, filtering and conditioning for multiple analog input and output signals. Equipped with screw terminal blocks and high-density D-sub connector, it routes conditioned analog signals to the core I/O processing module. The PCB is conformal coated to resist humidity, dust and airborne contaminants inside power plant control cabinets. This DIN-rail mount compact board supports simplex and TMR triple modular redundant configurations, widely used for gas & steam turbine measurement and closed-loop control in power generation facilities.

Technical Specifications

• Part Number: IS200STAIS2ACB
• Manufacturer: GE (GE Vernova)
• Series: Speedtronic Mark VI
• Product Type: Compact Analog I/O Terminal Board (STAI)
• Mounting: 35mm DIN rail or surface panel mount
• Signal Support: 4–20mA, 0–20mA, ±10V analog signals
• Terminals: 2 × 24-position screw terminal blocks
• Connector: High density D-sub connector for I/O pack connection
• PCB Protection: Conformal coating
• Supply Voltage: 24VDC ±10%
• Max Power Consumption: 5W
• Operating Temperature: -30°C ~ +65°C
• Storage Temperature: -40°C ~ +85°C
• Relative Humidity: 5%–95%, non-condensing
• Weight: Approx. 0.58 kg
• Supported Architecture: Simplex, TMR triple modular redundancy

IS200STAIS2ACB

Key Features

1. Compact STAI analog I/O termination board for Mark VI turbine control platform
2. Supports both analog input and analog output signal wiring & conditioning
3. Screw-type terminal blocks for secure field instrument wiring
4. Onboard EMI filtering and surge suppression to protect I/O electronics
5. Conformal coated PCB improves reliability in dusty, humid cabinet environments
6. DIN rail mounting saves cabinet installation space
7. Compatible with simplex and triple redundant TMR turbine control systems
8. D-Sub connector enables stable signal transmission with matched Mark VI I/O packs

Application Scenarios

• Gas turbine and steam turbine Mark VI control cabinets
• Combined cycle power plant turbine monitoring & control
• Generator auxiliary analog signal acquisition
• Pressure, temperature, flow and vibration transmitter signal interface
• Petrochemical large turbine and compressor control systems
• Power plant boiler auxiliary parameter measurement
• Heavy rotating machinery TMR safety monitoring
• Industrial power island process analog signal conditioning

Matching / Auxiliary Components

• Mark VI analog I/O processing pack
• Mark VI system rack and backplane
• Shielded twisted pair field analog instrument cables
• 4-20mA / ±10V pressure, temperature and flow transmitters
• D-sub signal cables connecting terminal board to I/O pack
• Mark VI controller and IONet communication modules
• ControlST / ToolboxST configuration software
• Redundant 24VDC rack power supply
