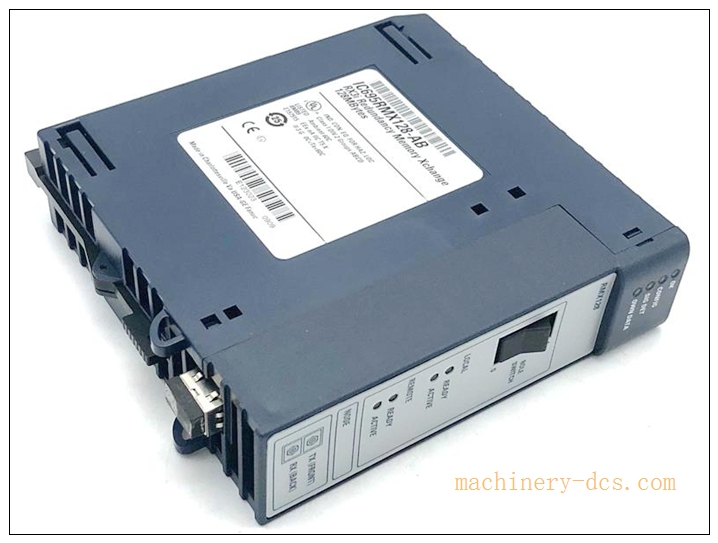

GE Emerson IC695RMX128‑BE PACSystems RX3i Redundancy Memory Xchange Module

Description

GE Emerson IC695RMX128‑BE PACSystems RX3i Redundancy Memory Xchange Module

Product Details

The IC695RMX128‑BE is a redundancy memory xchange module for PACSystems RX3i platform, manufactured by Emerson (Former GE Fanuc Intelligent Platforms). It is equipped with 128 MB shared SDRAM, adopting LC‑type single‑mode fiber‑optic interface with 2.12 Gbaud transmission speed for deterministic reflective‑memory data synchronization. This module serves as dedicated high‑speed link between primary and standby CPUs in hot‑standby redundancy system, and also works as network node for reflective‑memory network with maximum 256 supported nodes per loop. It occupies one single slot on RX3i universal backplane, supports hot‑swap operation. Multiple front‑panel LED indicators display local/remote status, link health and fault information. It undertakes real‑time mirroring of CPU memory data, realizes bumpless switch‑over during main CPU failure, widely used as original spare‑part for high‑availability industrial control racks.

Applications

‑ Oil & gas critical process control with hot‑standby PLC redundancy ‑ Petrochemical DCS & safety‑related control systems ‑ Power plant and auxiliary equipment high‑reliability automation ‑ Water‑wastewater treatment large‑scale distributed control ‑ Manufacturing production line non‑stop mission‑critical control ‑ Reflective‑memory multi‑node distributed data sharing network ‑ Retrofit and spare‑part replacement for PACSystems RX3i redundant racks

IC695RMX128-BE

Related Series Models (6+)

1. IC695RMX228
2. IC695CMX128
3. IC695CPU310
4. IC695CPU315
5. IC695CPU320
6. IC695ETM001
7. IC695CPE330

Key Features

1. 128 MB high‑speed shared SDRAM for redundancy memory mirroring and reflective‑memory networking.
2. LC fiber‑optic communication at 2.12 Gbaud, delivers deterministic low‑latency data synchronization.
3. Supports hot‑swap insertion and removal without shutting down the whole system.
4. Realizes bumpless hot‑standby CPU switch‑over to avoid production downtime upon main controller failure.
5. Supports up to 256 nodes in one reflective‑memory loop for multi‑controller data sharing.
6. Multiple LED status indicators for local‑remote operation, link status and fault visual diagnosis.
7. Standard single‑slot RX3i universal backplane installation, easy integration and maintenance.
8. Industrial‑grade hardware, stable continuous operation under complex factory electromagnetic interference environment.

Main Functions

1. Perform high‑speed memory mirroring between primary and standby RX3i CPUs for hot‑standby redundancy system.
2. Operate as network node on reflective‑memory fiber network, synchronize shared data across all connected nodes automatically.
3. Enable bumpless control transfer when primary CPU encounters fault, ensure uninterrupted process operation.
4. Transmit real‑time control database, tag values and status data between redundant racks via fiber‑optic link.
5. Continuously monitor fiber link quality and module internal operating status.
6. Visualize module operation, link error and fault condition via front‑panel LED indicators for on‑site troubleshooting.
7. Support hot‑swap maintenance without interrupting running control logic.
8. Cooperate with RX3i CPU series to complete high‑availability redundant control architecture configuration.
