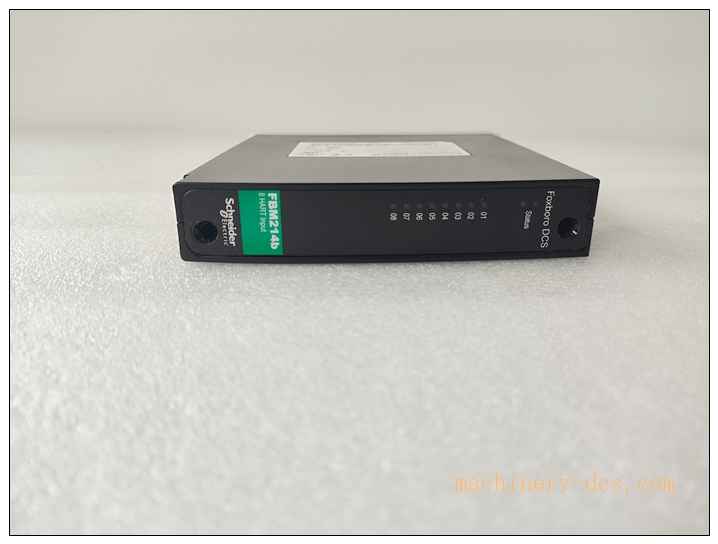

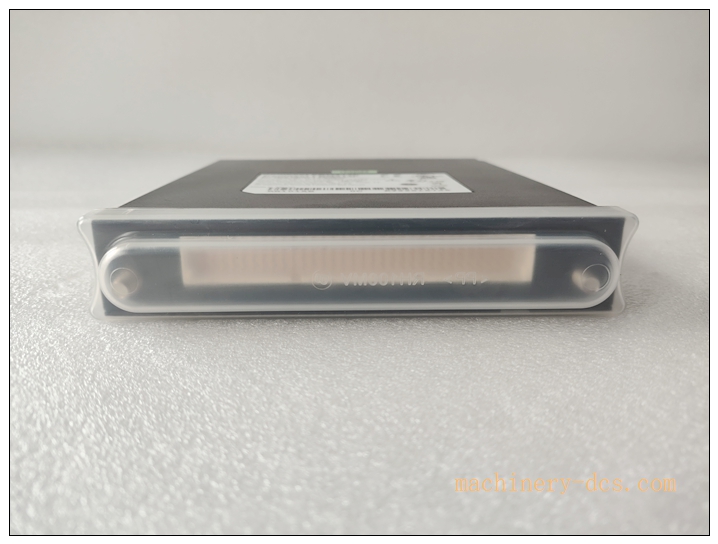

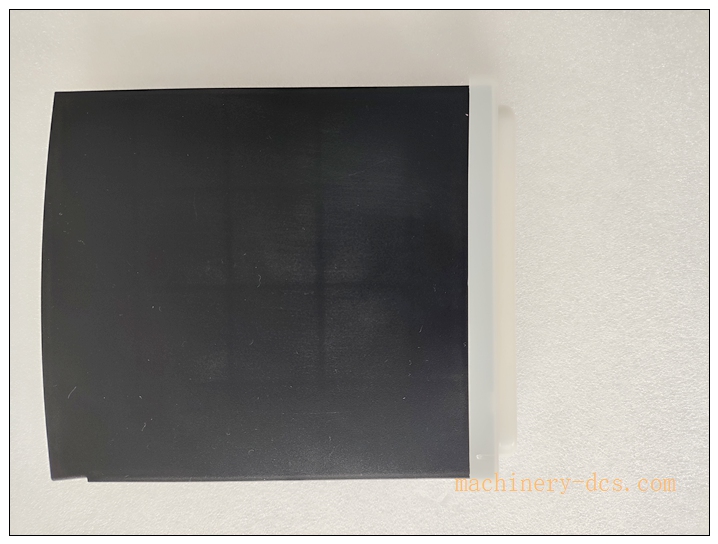

Foxboro FBM214b I/A Series 8-Channel HART Analog Input Module
Product Description
The FBM214b is a fieldbus module from Foxboro I/A Series DCS platform, an enhanced 8-channel HART communication analog input module. It receives 4–20mA loop signals with superimposed HART FSK digital data from smart field transmitters, supporting mixed connection of conventional 4-20mA analog devices and HART-enabled instruments. Each channel integrates dedicated HART modem to realize bidirectional digital communication, enabling the DCS to retrieve measurement values, device status, diagnostic alarms and perform remote configuration. With galvanic isolation design, it protects the control rack from ground loop interference and electrical transients, built for continuous heavy-duty process automation and asset management in critical industrial plants.
FBM214B RH101AB
Technical Specifications
- Part Number: FBM214b
- Manufacturer: Foxboro (Invensys / Schneider Electric)
- Series: I/A Series FBM Fieldbus Module
- Channel Quantity: 8 isolated analog input channels
- Signal Type: 4–20 mA DC + HART FSK digital signal
- HART Version: HART 5 / HART 7
- Loop Supply: 24 VDC ±10%, 37mA max per channel
- A/D Conversion: Sigma-delta, high precision sampling
- Accuracy: ±0.15% of full scale
- Galvanic Isolation: Group isolation between field side and module logic
- Operating Temperature: -40°C ~ +70°C
- Humidity: 5%~95%, non-condensing
- Environmental Grade: ISA-S71.04 Class G3 harsh industrial environment
- Mounting: Rack mount for I/A Series FBM rack
- Communication: Fieldbus to I/A Series controller backplane
Key Features
- 8 channels supporting both standard 4-20mA and HART smart transmitters, mixed wiring allowed
- Independent per-channel HART modem for bidirectional digital communication
- Galvanic isolation eliminates ground loop noise and protects DCS hardware
- Supports HART universal, common practice and device-specific commands
- Retrieve process variable, device health, diagnostic alerts remotely without field access
- Rugged aluminum housing for high vibration, corrosive industrial cabinet environments
- High-precision sigma-delta ADC ensures stable and accurate measurement
- Seamless integration with I/A Series controller and workstation asset management software
FBM214B RH101AB
Application Scenarios
- Petrochemical and refinery process monitoring & control
- Oil & gas onshore and offshore production DCS systems
- Power plant boiler and auxiliary process control
- Pharmaceutical batch process automation
- Pulp and paper mill measurement and control
- Water treatment plant instrument signal acquisition
- Chemical plant smart transmitter asset management
- Metallurgy continuous process monitoring
Matching / Auxiliary Components
- I/A Series FBM rack and backplane
- Termination assembly (TB) terminal boards for FBM214b
- HART pressure, temperature, flow and level transmitters
- Shielded twisted-pair field instrument cables
- I/A Series controller and workstation
- Fieldbus communication cables for FBM rack
- HART configuration software / asset management tool
- Rack power supply module for I/A Series system
