Foxboro FBM207B P0916JS 16-Channel Contact Sense Input Interface Module

Description

Foxboro FBM207B P0916JS 16-Channel Contact Sense Input Interface Module

Detailed Product Information

The Foxboro FBM207B P0916JS is a rugged, high-reliability contact sense input interface module designed for industrial automation systems, belonging to the Foxboro Compact 200 Series I/O subsystem. It is purpose-built to deliver accurate, stable discrete signal detection for field contact sensors and solid-state switches in harsh industrial process environments. The module supports both single-unit operation and redundant paired deployment, which effectively eliminates single points of failure and drastically improves system availability for mission-critical continuous production control loops. Its compact, rugged construction is fully certified for Class G3 harsh industrial environments, making it suitable for installation in unconditioned industrial control enclosures with heavy dust, wide temperature fluctuations and moderate corrosive atmospheres.

P0916JS

Technical Specifications

• Manufacturer: Foxboro
• Part Number: FBM207B P0916JS
• Product Type: Contact Sense Input Interface Module
• Number of Discrete Input Channels: 16 independent contact sense inputs
• Input Voltage Rating: 24 V DC contact sense
• Isolation Performance: Each individual input channel is fully galvanically isolated from other channels and system ground
• Supported Field Devices: Each channel accepts a pair of mechanical contacts or solid-state switches
• Supported Built-in Functions: Discrete Input processing, Ladder Logic execution, Pulse Counting and Sequence of Events (SOE) recording
• Configurable Feature: Adjustable input filter time to suppress field signal bounce and electrical noise interference

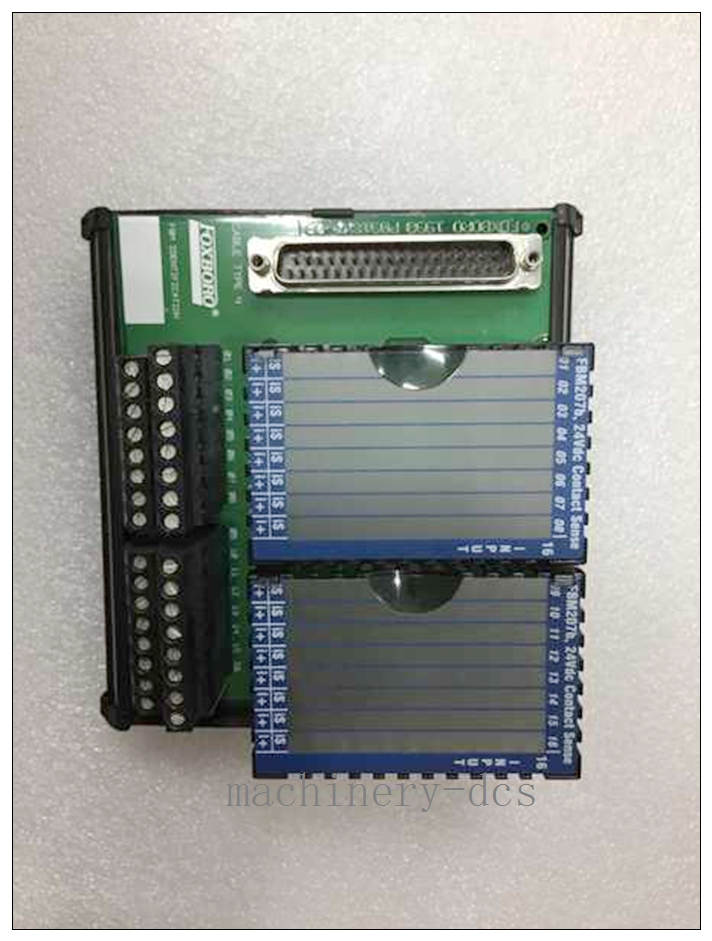

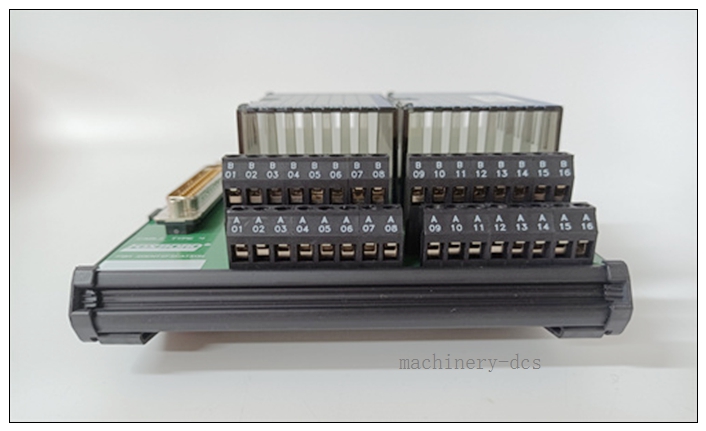

• Supporting Accessories: Matched dedicated Termination Assemblies (TAs) for local or remote field wiring connection, with per-channel internally loop powered device support
• Operating Environment Certification: Class G3 harsh industrial environment rated
• Condition: Brand new in stock
• Warranty: 2 years official manufacturer warranty
• Origin: USA

Compatibility & Installation Pitfalls

Compatibility

1. Natively interoperable with Foxboro Compact 200 Series I/O subsystem and matched modular baseplate backplanes
2. Fully compatible with Foxboro I/A Series distributed control systems and Experion DCS engineering software
3. Seamlessly integrates with standard 24V DC mechanical contact sensors, limit switches, proximity sensors and solid-state relays
4. Matches with Foxboro dedicated termination assemblies for local or remote field wiring connection
5. Supports redundant paired deployment with another FBM207B module for high-availability system architectures

Installation Pitfalls

1. Never install the FBM207B in a non-designated slot on the Compact 200 Series baseplate. Mismatched slot configuration will break the backplane signal path and cause partial or total discrete input signal loss.
2. Do not connect field signals with voltage levels exceeding the 24V DC rated input directly to the input channels. Uncontrolled overvoltage transients will break the galvanic isolation and permanently damage the module’s internal circuits.
3. Avoid routing discrete input signal cables connected to this module in the same cable tray as high-power variable frequency drive or AC motor power cables. Severe electromagnetic interference will cause false contact state triggering and unexpected signal bounce.
4. Never perform hot-swap replacement while critical safety interlock loops relying on this module are in active operation without pre-engaging the redundant FBM207B partner. This action will cause momentary signal loss and trigger unplanned safety trips.
5. Do not deploy modules with drastically different firmware revisions in the same redundant pair. Inconsistent firmware versions will cause asynchronous discrete signal timing and unexpected state mismatch during redundant switchover.

Standard Operating Procedure

1. Pre-installation verification: Inspect the module for physical damage on circuit boards and input terminals, confirm the Compact 200 Series baseplate 24V DC power output is stable within the acceptable operating range.
2. Mechanical mounting: Align the module with the designated slot on the modular baseplate, slide it smoothly into place, and secure the mounting lugs to ensure full and reliable electrical contact with the backplane.
3. Field wiring termination: Connect all field contact sensors and switches to their corresponding designated channels on the termination assembly, secure all cable connections properly and apply clear permanent labels for each channel with its corresponding device tag number.
4. Power-on configuration: Access the Foxboro I/A Series DCS engineering workstation, register the new module to the control system, configure input filter time, discrete logic parameters and SOE recording settings as required.
5. Functional validation: Manually trigger each field contact device one by one, confirm the contact state change is correctly detected and displayed on the DCS HMI, test the redundant FBM pair bumpless switchover function under simulated fault conditions.
6. Commissioning handover: Export and save the final discrete input configuration profile to secure backup, complete the loop check and wiring verification log, and confirm all 16 contact sense input points are operating normally before releasing the system to full operational service.

Typical Application Scenarios

• Petrochemical refining operations: Serves as the discrete signal acquisition module for safety interlock systems, monitoring the state of emergency stop buttons, limit switches and safety valve feedback contacts.
• Chemical processing plants: Leverages its full per-channel galvanic isolation design to eliminate ground loop interference, ensuring accurate and reliable discrete signal detection in high-electromagnetic-interference industrial environments.
• Power generation and utilities: Deploys in thermal power plant DCS control cabinets, providing reliable state monitoring for boiler auxiliary equipment, motor status feedback and interlock contact signals.
• Oil and gas production facilities: Adapts to the harsh operating environment in onshore and offshore control cabinets, supporting 24/7 non-stop operation for wellhead safety interlock and process status monitoring systems.
• Industrial manufacturing facilities: Acts as a high-density discrete input hub for production line sequential control systems, executing ladder logic, pulse counting and sequence of events recording functions for process sequence tracking.

Recommended Supporting Components

• Foxboro Compact 200 Series modular baseplate with matched DIN rail mounting accessories and redundant power supply unit
• Foxboro certified dedicated termination assembly for local or remote field wiring connection
• Shielded industrial discrete signal cables for interference-free 24V DC contact signal transmission
• Foxboro official I/A Series DCS engineering configuration software and discrete signal diagnostic toolkit
• Portable digital multimeter for on-site channel continuity check and routine maintenance operations

Related Part Number Recommendations

• FBM201: Foxboro standard discrete input module, for basic non-isolated discrete signal acquisition scenarios
• FBM202: Foxboro 32-channel high-density discrete input module, for industrial systems that require more discrete input channels
• FBM204: Foxboro isolated discrete input module, for high-voltage rated discrete signal input applications
• FBM207C: Foxboro enhanced contact sense input module, with extended operating temperature range for extreme environment deployment
• FBM208: Foxboro discrete output module, for discrete control signal output to solenoid valves and motor starter coils
