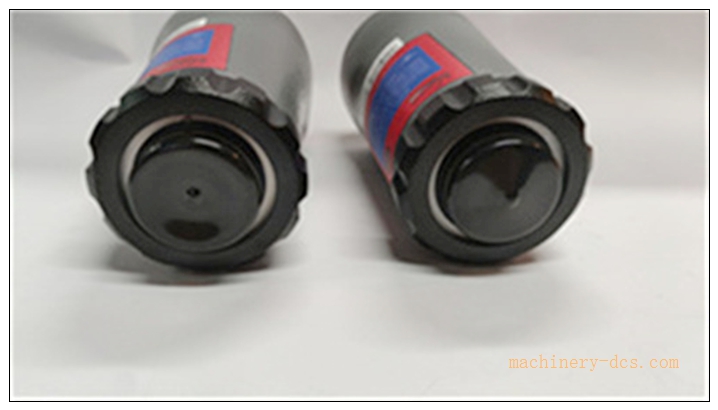

FIREYE SC2L‑95UVS2‑1CEX InSight Enhanced UV Flame Scanner, ATEX Ex‑d IIC T6 Explosion‑Proof Housing
FIREYE SC2L‑95UVS2‑1CEX InSight Enhanced UV Flame Scanner, ATEX Ex‑d IIC T6 Explosion‑Proof Housing - Image 2

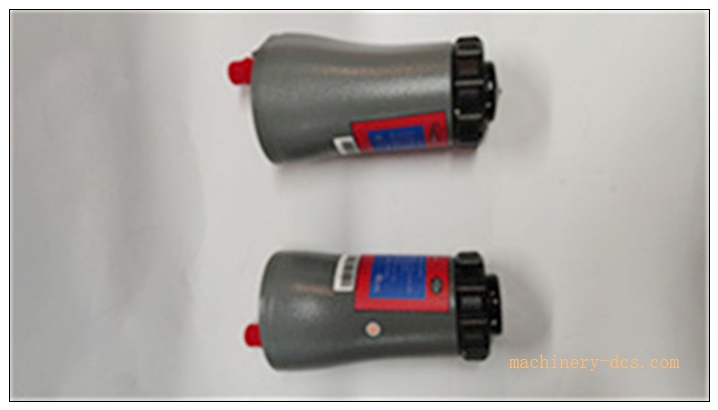

FIREYE SC2L‑95UVS2‑1CEX InSight Enhanced UV Flame Scanner, ATEX Ex‑d IIC T6 Explosion‑Proof Housing - Image 3

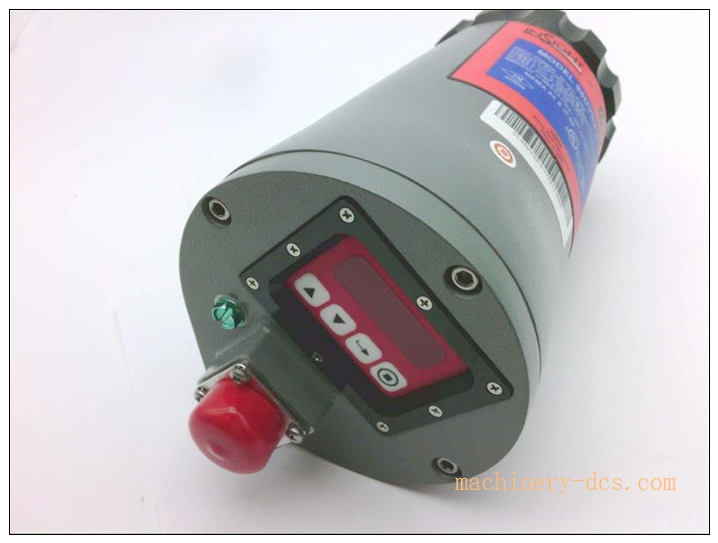

FIREYE SC2L‑95UVS2‑1CEX InSight Enhanced UV Flame Scanner, ATEX Ex‑d IIC T6 Explosion‑Proof Housing - Image 4

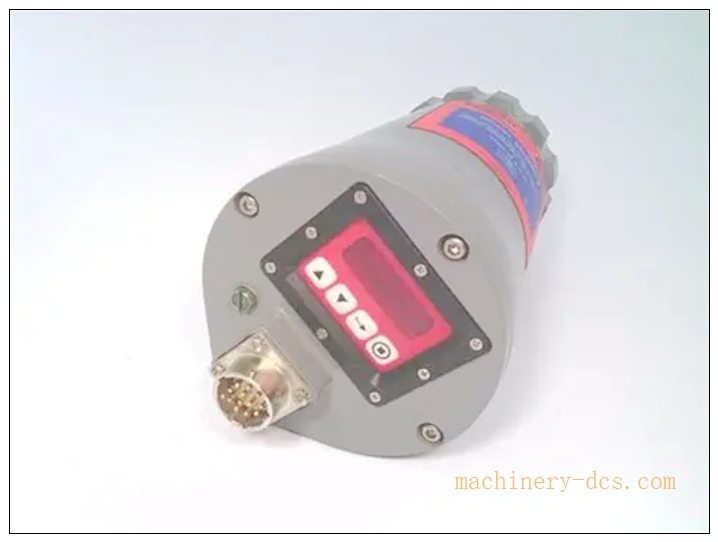

FIREYE SC2L‑95UVS2‑1CEX InSight Enhanced UV Flame Scanner, ATEX Ex‑d IIC T6 Explosion‑Proof Housing - Image 5

FIREYE SC2L‑95UVS2‑1CEX InSight Enhanced UV Flame Scanner, ATEX Ex‑d IIC T6 Explosion‑Proof Housing

  1. 95UVS4‑1CEX (Direct upgraded successor UV flame scanner)
  2. 95UVS2‑1CG (UV scanner, general‑purpose non‑Ex‑d housing)
  3. 95IRS2‑1CEX (Infra‑red IR flame scanner, Ex‑d housing)
  4. 95UVS2E‑1CEX (Enhanced sensitivity UV variant)
  5. SC2L‑95IRS2‑1CEX (IR complete assembly with sight pipe)
  6. EP‑2601 (FIREYE burner controller)
  7. 59‑497 series (Scanner connecting cable assembly)



Add To Quote
Category: SKU: FIREYE SC2L‑95UVS2‑1CEX Brand:

Description

FIREYE SC2L‑95UVS2‑1CEX InSight Enhanced UV Flame Scanner, ATEX Ex‑d IIC T6 Explosion‑Proof Housing



Product Details

SC2L‑95UVS2‑1CEX (base model 95UVS2‑1CEX) is microprocessor‑based ultraviolet flame scanner of FIREYE InSight series for industrial burner flame safeguard system. Origin: USA. Lifecycle status: EOL discontinued, successor replacement model: 95UVS4‑1CEX; OEM new production stopped, market supply includes NOS surplus and fully‑tested refurbished spare‑parts。

‑ Detection principle: Ultraviolet UV sensor, for gas / light‑oil burner flame detection ‑ Enclosure: ATEX EExd IIC T6 flame‑proof explosion‑proof housing, CE certified, for hazardous area installation ‑ Power supply: 24 VDC ‑ Interface: 3/4‑inch NPT wiring termination, multi‑wire signal output, connect to FIREYE controller unit ‑ Built‑in self‑diagnosis: sensor fault, window contamination, circuit fault detection ‑ Operating temperature: ‑40℃ ~ +85℃, IP66 ‑ Weight: approx 4.3 kg ‑ Function: Real‑time flame intensity measurement, flame on / off judgement, send status & fault signal to burner control system

Note: SC2L suffix stands for complete assembly including sight pipe fitting; base part number 95UVS2‑1CEX is scanner main body. Cannot work standalone; must match FIREYE main control unit.



Applications

‑ Power‑plant boiler, combined‑cycle auxiliary boiler, gas burner flame monitoring ‑ Petrochemical plant heater, furnace, thermal‑cracking unit burner safety safeguard ‑ Hazardous classified area combustion equipment UV flame detection (ATEX zone1/zone2) ‑ Refinery, waste‑incinerator burner flame protection ‑ Retrofit & spare‑part replacement for existing FIREYE InSight 95 series installations ‑ Spare inventory for thermal‑equipment maintenance department

95UVS2-1CEX

Related Series Models (6+)

  1. 95UVS4‑1CEX (Direct upgraded successor UV flame scanner)
  2. 95UVS2‑1CG (UV scanner, general‑purpose non‑Ex‑d housing)
  3. 95IRS2‑1CEX (Infra‑red IR flame scanner, Ex‑d housing)
  4. 95UVS2E‑1CEX (Enhanced sensitivity UV variant)
  5. SC2L‑95IRS2‑1CEX (IR complete assembly with sight pipe)
  6. EP‑2601 (FIREYE burner controller)
  7. 59‑497 series (Scanner connecting cable assembly)



Key Features

  1. Micro‑processor UV flame scanner for industrial burners, ATEX EExd IIC T6 flame‑proof enclosure suitable for explosive hazardous area.
  2. High‑sensitivity ultraviolet detection, reliable discriminate real flame against background light and hot‑surface false signal interference.
  3. Comprehensive self‑diagnosis: detect lens fouling, sensor damage, internal circuit failure, output fault alarm signal.
  4. SC2L version complete unit integrates sight‑pipe assembly for direct boiler‑wall mounting.
  5. 24VDC powered, compatible with FIREYE InSight series burner safety controllers.
  6. Wide operating temperature range, robust mechanical housing adapts to high‑vibration industrial furnace environment.
  7. Output flame intensity analog value and flame present / loss digital status for burner trip interlock logic.
  8. Manufactured in USA; EOL obsolete, 95UVS4‑1CEX as migration replacement; only NOS or fully‑tested refurbished spare‑parts available.



Main Functions

  1. Detect ultraviolet radiation generated by gas / light‑oil burner combustion, judge flame presence or flame‑out condition.
  2. Transmit flame intensity value, flame‑on / flame‑loss status signal to FIREYE burner safety controller.
  3. Trigger safety interlock when flame loss occurs, cooperate with control system to cut fuel supply and avoid explosion hazard.
  4. Continuously monitor scanner health status: lens contamination, sensor failure, circuit fault, report diagnostic alarms.
  5. Explosion‑proof housing permits installation in zone 1 / zone 2 hazardous process area.
  6. SC2L integrated sight‑pipe assembly simplifies field boiler‑burner mounting installation.
  7. Cooperate with FIREYE main controller to realize full‑set burner flame safeguard protection.
  8. Serve as UV flame‑detection sensing unit for industrial combustion safety system.
