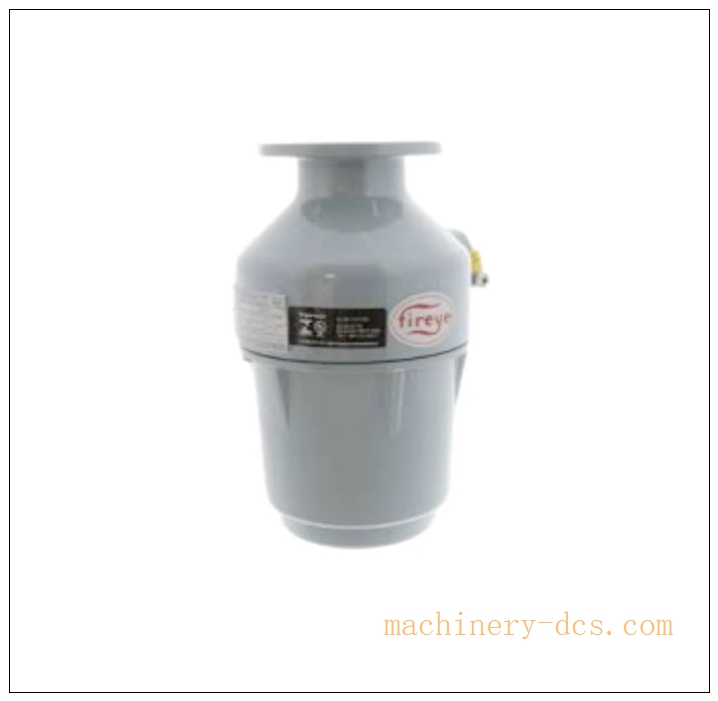

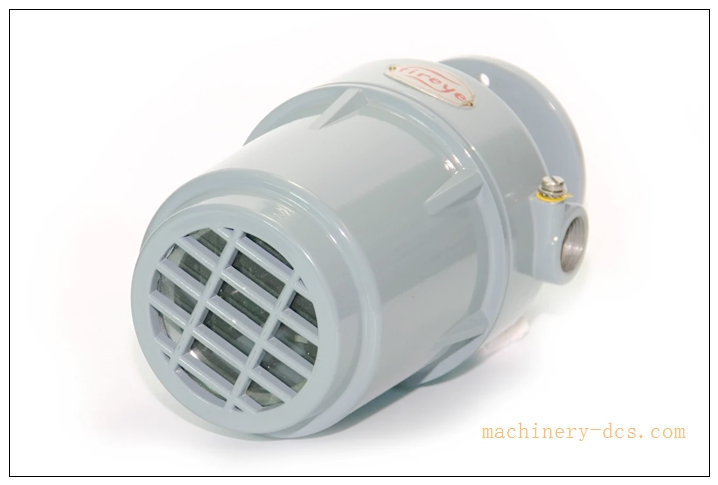

FIREYE 65UV5‑1004ECEX Simplicity Integrated UV Flame Scanner, ATEX Ex‑d IIC T6 Flame‑Proof Enclosure



Product Details

65UV5‑1004ECEX belongs to Fireye Simplicity series integrated UV flame scanner, CEX suffix = ATEX Ex‑d flame‑proof explosion‑proof housing; “E” means 1‑second flame‑failure response time (FFRT)ManualsLib. Origin: USA. Lifecycle status: EOL discontinued, OEM new production stopped; market supply includes NOS surplus and fully‑tested refurbished spare‑parts.

‑ Sensing principle: UV ultraviolet tube sensor, equipped with electromechanical self‑check shutter for automatic sensor self‑testManualsLib ‑ Enclosure: ATEX Ex‑d IIC T6 flame‑proof housing, IP66 / NEMA4X, for Zone 1 hazardous area installation ‑ Power supply: 24 VDC ‑ Internal: Built‑in flame relay (fixed threshold), no external flame amplifier required; 4‑20 mA analog output proportional to flame intensityManualsLib ‑ Termination: Internal terminal block wiring (CEX housing, no integral cable), require certified explosion‑proof cable glands ‑ FFRT: 1‑second fast flame‑loss trip response (E version); non‑E version is 4‑second responseManualsLib ‑ Indicator: Internal LED observation window for flame‑on / fault status ‑ Purge air requirement: 4‑15 SCFM clean dry cooling‑purge air for lens protectionFireye ‑ Operating temperature: ‑40℃ ~ +85℃, weight approx 3.0 kg ‑ Mounting: 1‑inch BSP sight‑pipe mounting thread; 3/4‑inch BSP port for purge‑air connection



Applications

‑ Power‑plant boiler, auxiliary gas‑fired burner flame safeguard ‑ Petrochemical heater, furnace, reformer in ATEX Zone 1 hazardous classified area ‑ Refinery, waste‑incinerator gas / light‑oil combustion safety monitoring ‑ Output 4‑20 mA flame‑strength signal to DCS/SCADA system ‑ Retrofit & spare‑part replacement for existing Simplicity 65UV5‑CEX installations ‑ Spare inventory for thermal‑equipment maintenance department

65UV5-1004ECEX

Related Series Models (6+)

  1. 65UV5‑1004CEX (4‑second FFRT Ex‑d housing version, non‑E)
  2. 65UV5‑1004E (General‑purpose Ex‑nA housing, non‑Ex‑d)
  3. 95UVS1E‑1CEX / 95UVS2‑1CEX (InSight series UV scanner, successor platform)
  4. 95UVS4‑1CEX (New‑generation UV flame scanner)
  5. 65IRS5‑1004ECEX (Simplicity IR flame scanner, Ex‑d housing)
  6. EP‑2601 (Fireye burner safety controller)
  7. SC2L‑assembly (Complete sight‑pipe mounting kit)



Key Features

  1. Simplicity series integrated UV flame scanner with ATEX Ex‑d IIC T6 flame‑proof housing, suitable for Zone 1 explosive hazardous‑area installation.
  2. Electromechanical shutter self‑check mechanism continuously validates UV sensor health, avoids false flame signal risk.
  3. Built‑in flame relay with fast 1‑second flame‑failure response for safety‑critical burner trip interlock.
  4. 4‑20 mA analog output delivers real‑time flame intensity for DCS trending and diagnostics.
  5. CEX housing uses internal terminal‑block wiring, must match ATEX‑approved cable glands for field installation.
  6. Requires continuous clean dry purge‑air to prevent lens contamination from furnace flue‑gas and dustFireye.
  7. Minimal configuration, out‑of‑box operation without complex programming.
  8. Manufactured in USA; EOL obsolete, only NOS or fully‑tested refurbished spare‑parts available.



Main Functions

  1. Detect ultraviolet radiation from natural‑gas / light‑oil flames, determine flame‑present or flame‑out status.
  2. Internal relay contact output for burner safety interlock; trigger fuel shut‑off within 1‑second upon flame loss.
  3. Convert flame‑signal strength into 4‑20 mA analog signal and transmit to upper‑level DCS/SCADA monitoring system.
  4. Mechanical shutter implements automatic sensor self‑test, reports sensor fault or lens fouling alarms.
  5. Ex‑d explosion‑proof enclosure permits direct installation inside Zone 1 hazardous process area.
  6. Purge‑air interface protects optical window against high‑temperature flue‑gas and soot deposition.
  7. Cooperate with Fireye burner safety controller to realize complete burner flame‑safeguard protection logic.
  8. Serve as UV flame‑detection sensing unit for industrial combustion safety system.
