Emerson DeltaV VE3005 MD Controller Module, Part Number KJ2003X1‑BA2, Alternate drawing No.12P2093X102
Product Detailed Information

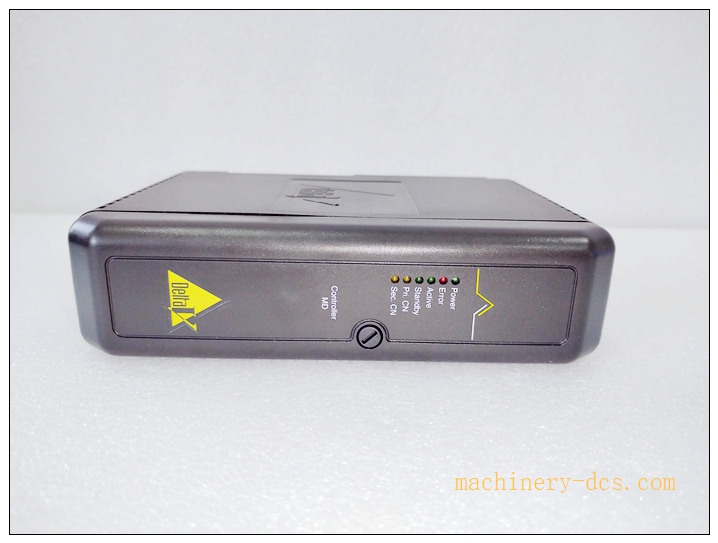

VE3005 is the MD‑type controller module for Emerson DeltaV DCS system. It executes control logic, PID loops, sequence logic, data acquisition and peer‑to‑peer communication for process‑critical plant control. The module connects to DeltaV local I/O bus to interact with S‑series I/O modules, supports redundant controller deployment for high‑availability requirements. Front‑panel LED array provides module health, run, fault and communication status indication. Hot‑swap is supported under controlled plant conditions. OEM manufacturing has been ended; new‑old‑stock, fully‑tested refurbished and field‑recovered spare modules are widely deployed for legacy plant life‑extension maintenance projects。

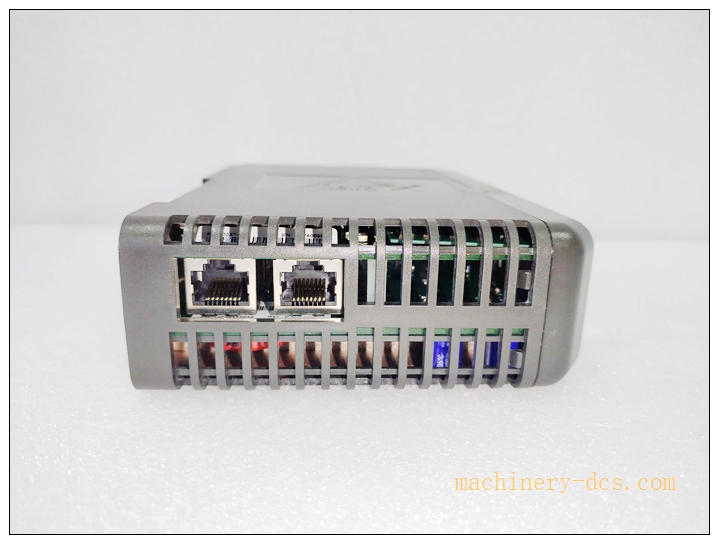

VE3005
Technical Parameters
| Item | Specification |
|---|---|
| Manufacturer | Emerson (Fisher‑Rosemount) |
| Model | VE3005, KJ2003X1‑BA2, drawing No.12P2093X102 |
| Product Status | OEM End‑of‑Manufacture, spare‑part‑only supply |
| Module Type | DeltaV MD Controller Module |
| Backplane Power | +5 VDC, 1.4 A draw from DeltaV local bus |
| Power Consumption | Typical ≤15 W, supply 24 VDC nominal |
| Communication Interface | DeltaV Local I/O Bus; redundant control network; Ethernet for system communication |
| Control Capacity | Supports PID, sequential function charts, custom calculation blocks; connects to S‑series I/O family |
| Redundancy | Supports 1‑to‑1 controller hot‑standby redundancy with identical paired modules |
| Indicators | Front‑panel multi‑LED: Run, Fault, Com, Active/Standby status |
| Mounting | Pluggable rack‑mount inside DeltaV controller carrier chassis |
| Hot‑Swap | Hardware hot‑swap capable under controlled operating conditions |
| Operating Temperature | 0 ℃ ~ +60 ℃ indoor cabinet installation |
| Storage Temperature | ‑40 ℃ ~ +85 ℃ |
| Humidity | 5‑95 % RH non‑condensing |
| Weight | ≈0.36 kg |
| Certifications | CE, UL, CSA industrial safety approvals |
| Configuration Tool | DeltaV Engineering Studio / DeltaV Explorer engineering software |
Compatibility & Installation Traps
Compatibility
- DeltaV controller carrier rack, DeltaV power supply units, S‑series local I/O bus infrastructure
- Matched identical VE3005(KJ2003X1‑BA2) module for hot‑standby redundant controller configuration
- DeltaV S‑series I/O modules (KJ32xx, KJ31xx series) and corresponding terminal bases
- DeltaV engineering workstation for project download, firmware management and fault diagnosis
Critical note: Redundant hot‑standby system requires strictly identical hardware part‑number and matching firmware revision. Mismatched firmware causes synchronization failure, bumpless switch‑over failure and logic inconsistency. VE3005 MD controller cannot be substituted by other DeltaV controller variants without full project re‑validation. Spare module does not retain user control application program.
Installation Traps
- Redundancy firmware matching risk: Primary and standby controller firmware must be exactly identical. Different firmware revisions trigger sync fault, incomplete logic mirroring and unexpected process disturbance during switch‑over.
- Hot‑swap operational limitation: Physical hot‑swap is hardware‑supported. Removing active primary controller triggers automatic switch‑over to standby unit. Never perform hot‑swap during critical process transient phases; safety bypass permit is mandatory.
- Backplane bus contact contamination risk: Bent pins, dust or oxidation on backplane connector cause intermittent bus communication drop‑out, sporadic I/O read‑write faults. Inspect carrier backplane before inserting new module.
- Thermal ventilation requirement: Maintain cabinet ventilation clearance around controller module. Blocked air flow leads to over‑temperature alarm, automatic controller shutdown and process trip.
- ESD vulnerability: Backplane connector and internal logic circuits are static‑sensitive. ESD wrist‑strap is mandatory for all module handling activities; invisible ESD damage generates random intermittent faults without visible PCB damage.
- Protective‑earth equal‑potential requirement: Controller rack and all related I/O racks must share same protective‑earth reference. Unequal‑potential grounding creates ground‑loop noise and unstable network / local bus communication.
- Part‑number validation: Confirm full marking VE3005 / KJ2003X1‑BA2. Other DeltaV controller models have different logic execution capacity and redundancy characteristics and cannot direct drop‑in replacement.
- Mandatory post‑replacement commissioning: After module swap, download complete controller project, align firmware version, verify redundancy synchronization status, execute manual primary‑standby switch‑over test.

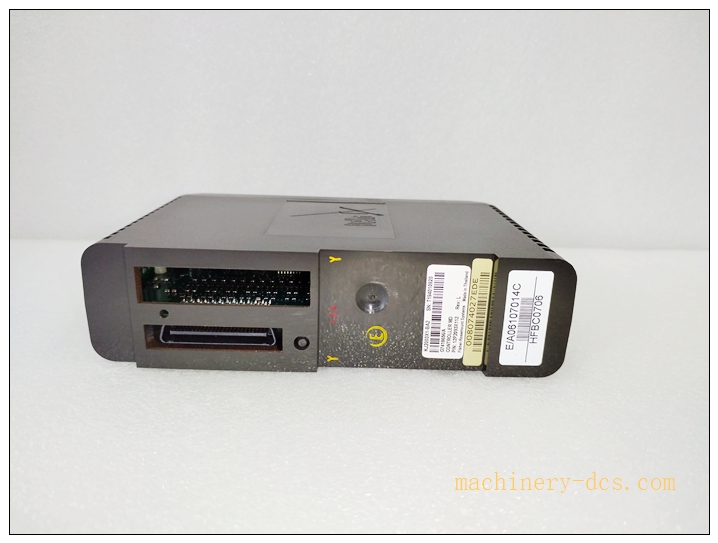

VE3005
Standard Operating Procedure (SOP)
- Pre‑work: Execute plant lock‑out‑tag‑out for DeltaV control cabinet. Evaluate process operating condition; avoid replacement during critical process transient. Apply safety bypass permit for safety‑related interlock logic. Wear certified ESD anti‑static wrist strap.
- Data backup: Export complete DeltaV controller project source file. Record controller firmware revision, network IP parameters, redundancy configuration settings; export system event log and fault history.
- Module removal: Record front‑panel LED status. Release module latch handle, pull (KJ2003X1‑BA2) module straight out of controller carrier slot. Inspect carrier backplane connector for bent pins, dust and oxidation.
- Incoming inspection: Visually inspect spare module for PCB mechanical damage, front‑panel LED integrity. Verify full part‑number marking and hardware / firmware revision.
- Mechanical mounting: Smoothly insert new module fully into controller carrier slot; close latch to ensure full backplane electrical contact.
- Cabling: Confirm controller network and local‑bus cabling remain intact. Verify cabinet protective‑earth bonding connection.
- Power‑on commissioning: Keep DeltaV rack energized. Wait for full controller boot‑up sequence. Upgrade or downgrade firmware so paired redundant controllers achieve exact firmware match. Download backed‑up controller project configuration. Clear historical fault buffer. Confirm redundancy synchronization status shows “In‑Sync”.
- Functional validation: Confirm RUN LED steady‑ON, communication status healthy. Execute manual primary‑standby switch‑over test, validate bumpless switch‑over without process disturbance. Verify local‑bus I/O data refresh, network communication, PID loop operation and alarm reporting. Cross‑check process tag values on DeltaV operator HMI workstation. Confirm no persistent controller‑fault, sync‑fault or bus‑communication‑fault alarms.
- Documentation: Update plant maintenance log; archive project source file, firmware‑version, switch‑over test‑result records. Properly package defective removed controller module. Release lock‑out‑tag‑out permit only after full acceptance‑test successfully completed.
Application Scenarios
‑ Power generation, oil‑gas, petrochemical and chemical process DeltaV DCS control systems ‑ Execute PID regulation, sequence control, interlock logic for critical process units ‑ Redundant high‑availability control architecture to minimize unplanned plant shutdown risk ‑ Legacy Emerson DeltaV platform preventive maintenance & life‑extension retrofit projects
Matching & Supporting Components
- DeltaV controller carrier rack, DeltaV system power supply
- Identical (KJ2003X1‑BA2) controller for hot‑standby redundant deployment
- DeltaV S‑series I/O modules and matched terminal base assemblies
- DeltaV Engineering Studio configuration software
- ESD‑shielded anti‑static storage bag for spare‑module storage
Brand‑Related Alternative & Recommended Models
- Other DeltaV MD‑series controller variants: must verify exact part‑number, firmware compatibility and control capacity before substitution
- New‑generation DeltaV PK‑Controller family: recommended solution for full‑system migration new‑build projects
