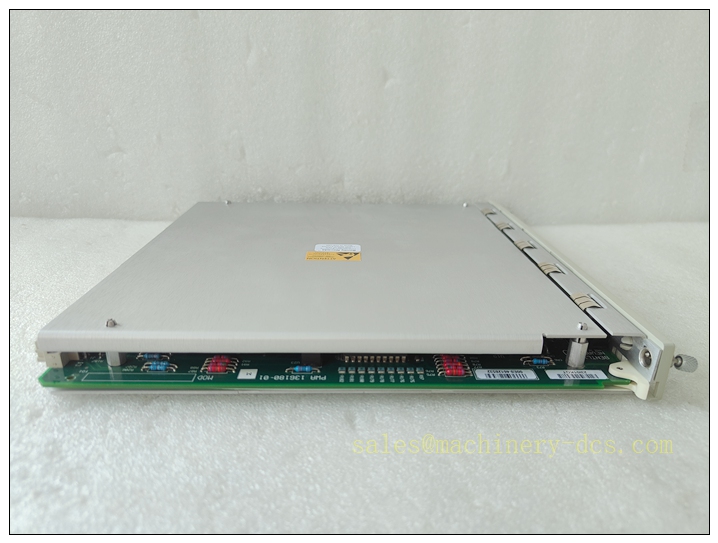

Bently Nevada 3500/92-04-01-00 Communication Gateway Module, Modbus TCP / RS485 Interface for 3500 Machinery Protection Rack

Description

Bently Nevada 3500/92-04-01-00 Communication Gateway Module, Modbus TCP / RS485 Interface for 3500 Machinery Protection Rack

Product Description

The 3500/92-04-01-00 is a rack-mounted communication gateway for the Bently Nevada 3500 TSI machinery protection platform. It collects real-time measurements, alarm states, transducer health and module diagnostic data across the rack backplane and delivers these values to external DCS, PLC, SCADA or historian systems via standard Modbus TCP over Ethernet and Modbus RTU over RS485 serial port. It also supports Bently proprietary protocol for rack configuration and diagnostics from a service PC. This variant suffix definition: 04 = Ethernet + RS485 Modbus I/O submodule; 01 = low memory configuration; 00 = no hazardous area agency options. It differs functionally from the 3500/91 TDI/EGD modules; it is designed for control-system Modbus integration rather than high-speed transient waveform capture or EGD data exchange. Widely applied on steam turbines, gas turbines, centrifugal compressors and generators in power, oil & gas and petrochemical plants.

Technical Parameters

Recommended Related Models (8 units)

1. 3500/42 SIL2-04-00: 4-channel Proximitor/Seismic SIL2 machinery monitor
2. 3500/91-01-01-01: TDI Transient Data Interface for waveform capture
3. 161204-01: 3500/91 EGD Ethernet Gateway for EGD protocol
4. 3500/22M: Keyphasor speed & phase reference module
5. 3500/50: Tachometer speed monitor module
6. 3500/05-01-01-00-00-00: 13-slot 3500 rack & backplane
7. 3500/15: Rack DC power supply module
8. 100M2833: 10ft USB configuration service cable

3500/92-04-01-00

Compatibility & Installation Traps

Compatibility

• Primary host: Bently Nevada 3500 machinery protection rack
• Compatible monitors: 3500/42, 3500/22M, 3500/50 and other standard 3500 monitor cards
• Software: Official Bently 3500 Rack Configuration Software, Modbus master DCS/PLC
• Note: This is a Modbus gateway; it cannot replace 3500/91 TDI for orbit/Bode transient capture or EGD gateway for EGD protocol. Different 3500/92 suffix variants with different I/O submodules are not drop-in compatible and require Modbus register reconfiguration.

Critical Installation Traps

1. Modbus Register Mapping Requirement: The replacement gateway must be loaded with the site-specific configurable Modbus register table. Mismatched register mapping causes wrong vibration, position or alarm values in DCS.
2. Firmware Rack Compatibility: 3500/92 firmware must match the firmware revision of all monitor modules in the rack. Version incompatibility leads to missing channels or intermittent register timeouts.
3. Network Segregation for Modbus Traffic: Do not connect the Ethernet port to office LAN. Broadcast congestion can cause Modbus TCP timeouts during machine load transients.
4. RS485 Bus Termination Rules: The Modbus serial bus requires proper end-of-line termination. Missing or duplicate termination creates unstable polling and sporadic DCS value freezing.
5. ESD Sensitivity: Backplane interface, Ethernet PHY and serial transceiver circuits are ESD-sensitive. Module replacement must be performed on a grounded ESD workstation with wrist strap.
6. Slot Assignment Limits: Install only in designated communication slots. Improper slot placement prevents backplane data collection and results in all Modbus registers reading invalid.
7. No Protection Trip Control: This gateway only transfers data; Modbus write commands cannot override the hardware protection voting and trip logic of the monitor modules.
8. Hot Swap Risk on SIL Loops: While hardware supports hot-swap, replacing it on an active SIL-rated protection rack removes Modbus visibility to DCS. Execute approved bypass and work permit procedures.

Standard Operating Procedure (SOP)

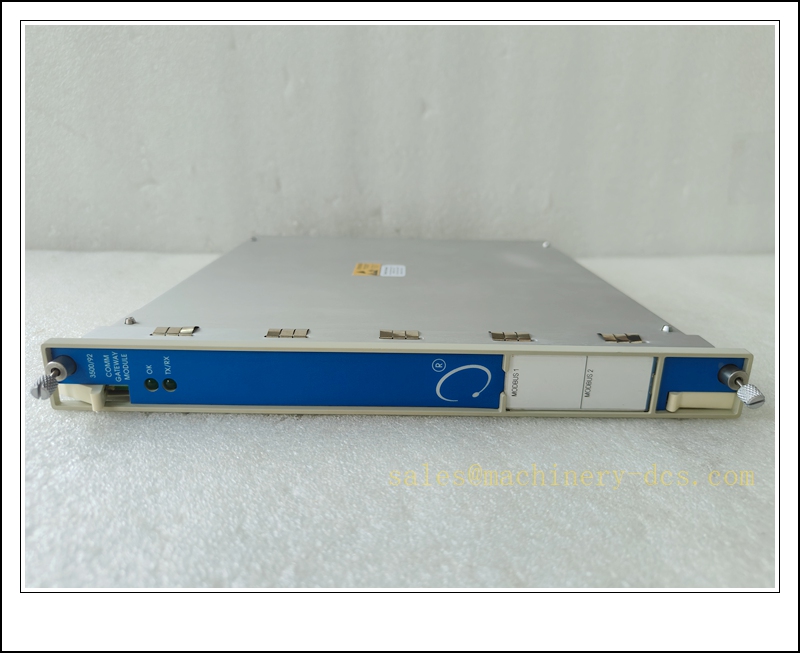

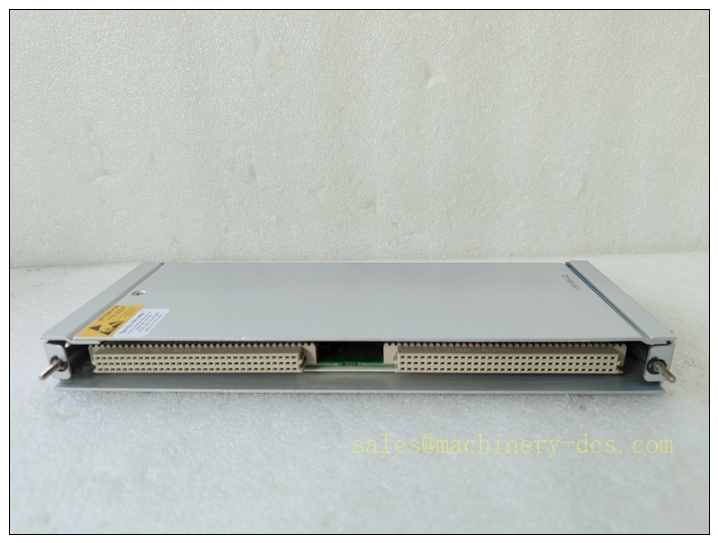

1. Pre-installation inspection: Inspect front panel, RJ45/serial connectors and backplane edge connector for bent pins, corrosion or burn damage. Confirm full part number 3500/92-04-01-00.
2. Configuration backup: Export the complete rack configuration, channel list, alarm thresholds and custom Modbus register map using 3500 configuration software.
3. System preparation: Notify control room that Modbus communication to DCS will be interrupted; machinery protection trip logic remains active. Obtain work permit.
4. Energy isolation: If hot swap is not approved, de-energize the 3500 rack power supply and apply lockout/tagout. Allow internal capacitors to discharge.
5. Mechanical replacement: Release ejector latches and extract the faulty gateway. Insert the replacement 3500/92-04-01-00 fully into the assigned communication slot and seat the backplane connector.
6. Power-up and self-test: Restore rack power. Observe front-panel LEDs. Run module self-test and verify backplane communication to all monitor cards.
7. Communication and register validation: Load saved rack and Modbus register configuration. Verify Ethernet/ link, poll all Modbus registers from DCS and cross-check readings against local rack display.
8. Process qualification: Confirm vibration, thrust, speed and alarm status update correctly. Ensure no spurious protection alarms are triggered. Restore normal plant Modbus monitoring.
9. Decommissioning: Pack the defective module in anti-static shielding bags, label fault symptoms for failure analysis and archive the latest Modbus register configuration file.

Application Scenarios

• Modbus TCP / Modbus RTU data integration between Bently 3500 TSI rack and plant DCS, PLC and SCADA
• Publishing vibration, shaft position, speed, gap voltage, alarm status and module health status to control systems
• Remote rack configuration and diagnostic access over Ethernet using Bently configuration software
• API 670 turbine supervisory monitoring for steam turbines, gas turbines, compressors and generators
• Preventive maintenance spare for Modbus communication failures, link dropout and register mapping faults
• Legacy control system retrofit projects where serial Modbus is required alongside Ethernet
• Power generation, oil & gas and petrochemical rotating machinery protection systems

3500/92-04-01-00

Supporting Components

• ESD wrist strap, anti-static shielding bags and conductive work mat
• 3500 rack ejector latches and screwdriver set
• 3500/15 rack power supply
• 3500/42, 3500/22M spare monitor modules
• 3300 XL proximity probes and extension cables
• 100M2833 USB configuration cable and 3500 configuration software
• Shielded Ethernet cable and twisted-pair field cable
• Site wiring drawings, Modbus register documentation and safety work permits
