Bently Nevada 3500/91-01-01-01 Transient Data Interface Module, 3500 Machinery Protection System

Description

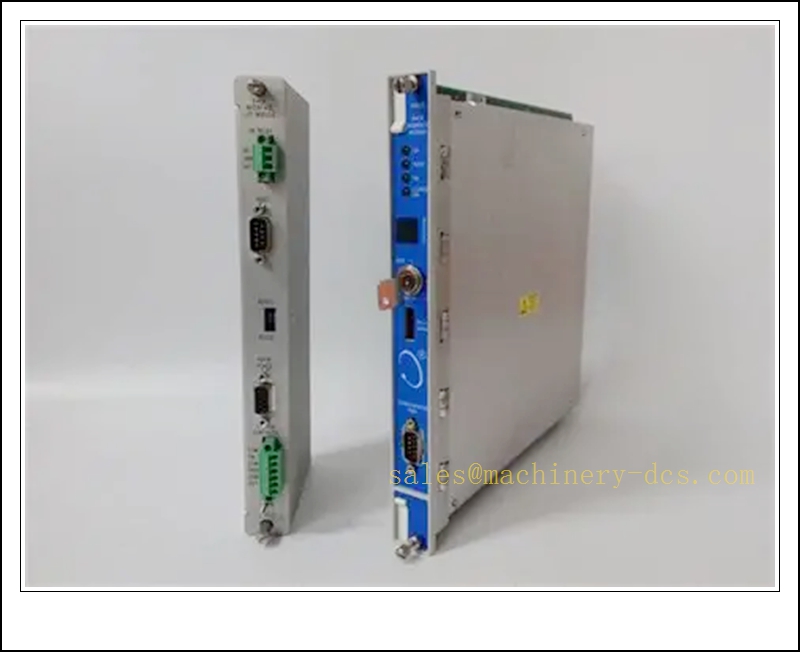

Bently Nevada 3500/91-01-01-01 Transient Data Interface Module, 3500 Machinery Protection System

Product Description

The 3500/91 Transient Data Interface (TDI), part number 3500/91-01-01-01, is a rack-based communication and high-speed waveform capture module within the Bently Nevada 3500 machinery protection platform. It acts as the gateway between the 3500 rack backplane and external monitoring systems, supporting high-resolution transient waveform, peak amplitude and time-synchronous data transmission for rotating machinery. It streams dynamic vibration, shaft position and speed data to condition monitoring software, portable analyzers or host DCS systems. This module is widely deployed on turbines, compressors, pumps and generators, providing critical transient capture during machine trips, startup and load transients. It remains a key spare for predictive maintenance and machinery protection retrofit.

Technical Parameters

Recommended Related Models (8 units)

1. 3500/91-02-01-01: Alternate TDI variant with different firmware/port configuration
2. 3500/22M: Keyphasor and I/O module for speed reference signal
3. 3500/42M: Vibration and position monitor module
4. 3500/50: Tachometer / Speed monitor
5. 3500/15: Rack power supply module for 3500 chassis
6. 3500/05: 3500 system rack chassis
7. 3500/93: Display Interface Module
8. 3300 XL Proximity Probe: Shaft vibration/position sensor matched to 3500 monitors

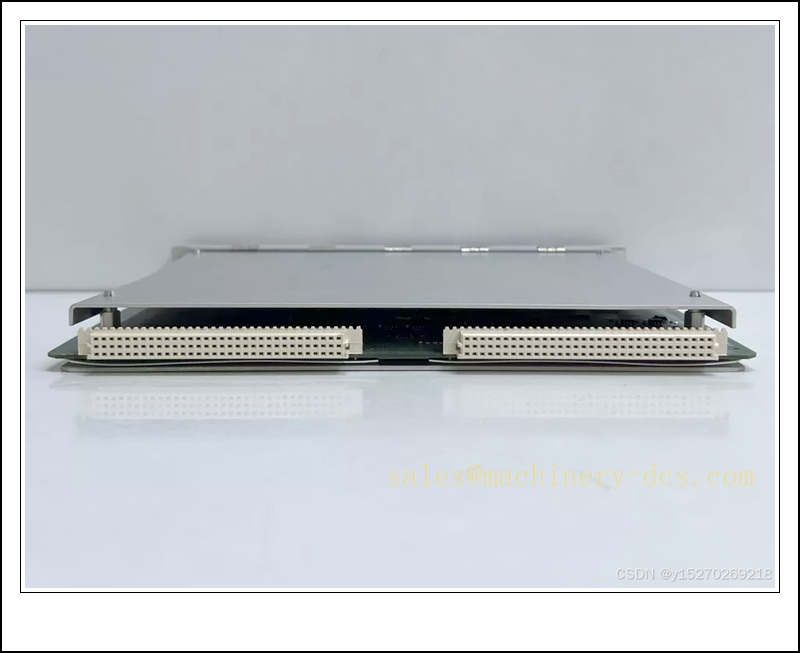

Bently 350091 190782-01.3

Compatibility & Installation Traps

Compatibility

• Primary host system: Bently Nevada 3500 series machinery protection rack
• Associated modules: 3500/42M, 3500/50, 3500/22M and other 3500 monitor cards
• Software: Bently Nevada System 1, 3500 Configuration Software
• Note: This is a proprietary 3500 rack module; it cannot be used standalone or substituted with generic Ethernet data acquisition cards. Different suffix versions of 3500/91 are not interchangeable without reconfiguring the rack.

Critical Installation Traps

1. Configuration File Matching: The replacement TDI must use the exact rack configuration file from the original unit. Mismatched configuration causes missing transient channels, lost orbit data or communication dropouts to System 1.
2. Ethernet Network Isolation: The TDI high-speed transient traffic is bandwidth-intensive. Do not share the TDI Ethernet port with regular office LANs; network congestion will corrupt waveform capture during machine transients.
3. Keyphasor Time Sync Dependency: Transient and orbit data rely on valid Keyphasor signal from 3500/22M. Missing or noisy Keyphasor signals result in invalid Bode and polar plots, even if the TDI itself is healthy.
4. ESD Sensitivity: High-speed digital circuitry and Ethernet transceivers are ESD-sensitive. All module replacement must be performed on a grounded ESD workstation with wrist strap.
5. Backplane Slot Assignment: The 3500 rack requires TDI to be installed in designated communication slots. Improper slot placement prevents backplane data access and disables transient capture.
6. Cable and Connector Care: Damaged RJ45 ports or poor Ethernet crimps create intermittent high-speed data loss, which may only manifest during large machine transients and is hard to replicate on bench tests.
7. Hot Swap Restrictions: Confirm rack version. Some 3500 rack revisions support hot swap, while older configurations require rack power shutdown to avoid resetting monitor channels.
8. Firmware Revision Compatibility: TDI firmware must be compatible with the firmware version of all other monitor modules in the same rack. Version incompatibility triggers backplane communication faults.

Standard Operating Procedure (SOP)

1. Pre-installation inspection: Inspect module front panel, PCB and backplane connector for burn marks or physical damage. Confirm full part number 3500/91-01-01-01 against the site spare list.
2. Configuration backup: Export and save the complete 3500 rack configuration, channel lists, transient capture triggers and network settings using Bently 3500 configuration software.
3. System preparation: Verify machinery protection voting logic remains intact. If hot swap is not approved, obtain isolation permit and prepare to suspend transient recording.
4. Energy isolation: If required, de-energize the 3500 rack power supply and apply lockout/tagout. Allow internal capacitors to discharge before module removal.
5. Mechanical replacement: Release the module ejector latches and extract the faulty TDI. Insert the replacement 3500/91 fully into the assigned rack slot and seat the backplane connector.
6. Power-up and self-test: Restore rack power. Observe front panel LEDs. Run module self-test and verify backplane communication to all monitor cards.
7. Network and function validation: Load the saved rack configuration to the new TDI. Verify Ethernet link to System 1 host, confirm real-time static data and trigger test transient captures, orbits and Bode plots.
8. Process qualification: Perform machine static and dynamic tests, validate transient capture on Keyphasor and vibration channels. Confirm no spurious alarms before returning to normal machinery monitoring.
9. Decommissioning: Pack the defective TDI in anti-static shielding bags and label with fault symptoms for failure analysis.

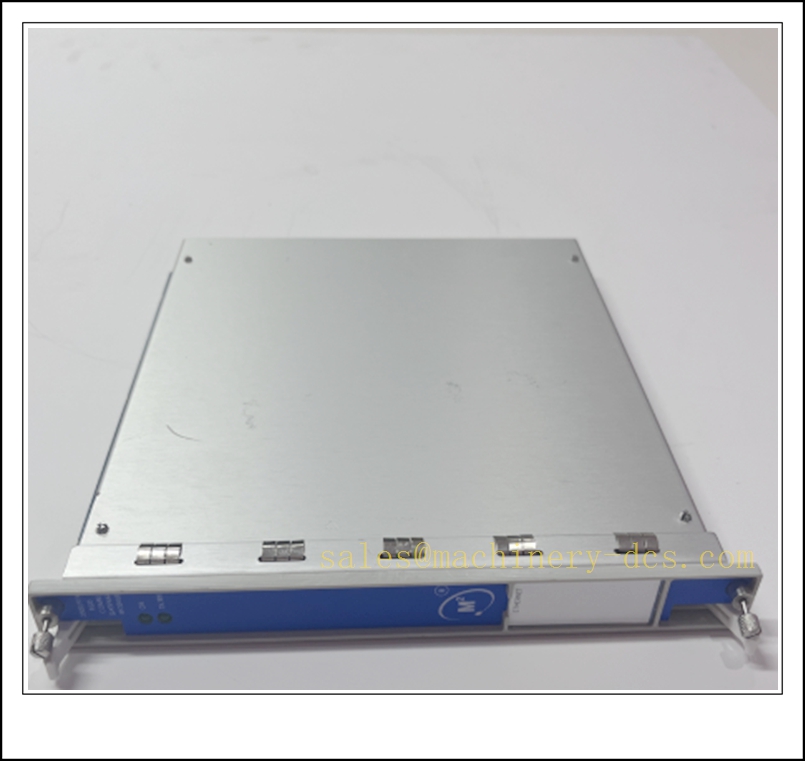

Bently 3500/91-01-01-01

Application Scenarios

• High-speed transient waveform, orbit and Bode plot data acquisition for Bently Nevada 3500 machinery protection racks
• Time-synchronized dynamic vibration and shaft position data streaming to System 1 condition monitoring platform
• Transient event capture during turbine/compressor startup, load changes and machine trip events
• Continuous machinery health monitoring for gas turbines, steam turbines, centrifugal compressors, generators and critical pumps
• Preventive maintenance spare stocking for 3500 machinery protection systems
• Troubleshooting of missing transient records, intermittent Ethernet communication and backplane data faults
• Power, oil & gas and petrochemical plant machinery protection system lifecycle maintenance
• Commissioning of multi-channel high-speed vibration monitoring and post-event root cause analysis

Supporting Components

• ESD wrist strap, anti-static shielding bags and conductive work mat
• 3500 rack ejector latches and screwdriver set
• 3500/15 rack power supply unit
• Industrial shielded Ethernet cable and managed switch for transient data network
• Bently Nevada 3500 configuration software and communication adapter
• 3500 rack chassis and backplane repair kit
• 3500/22M Keyphasor module and transducer cable assembly
• 3300 XL proximity probe and extension cable set
