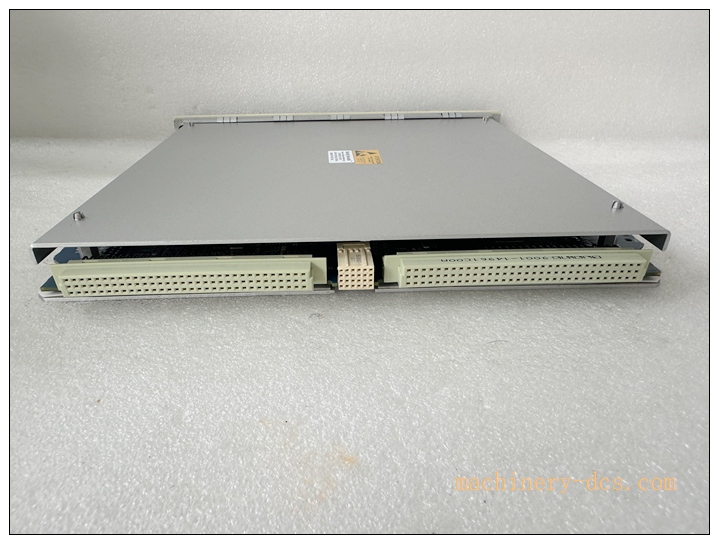

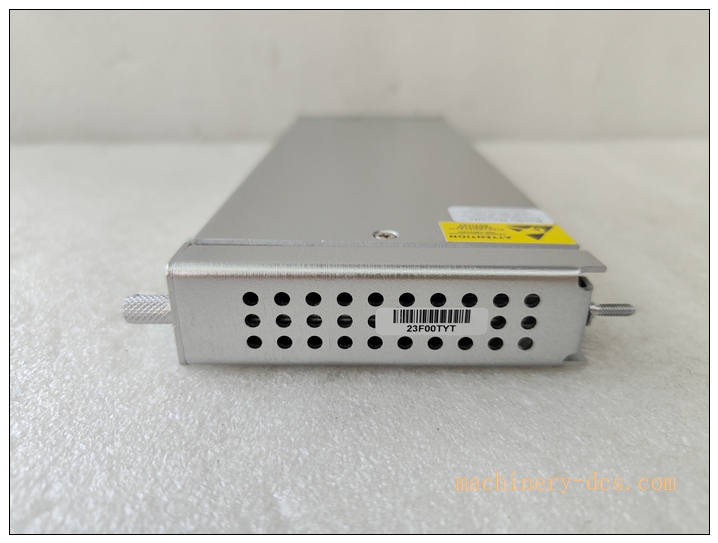

Bently Nevada 3500/22‑01‑01‑00 Standard Transient Data Interface Module, 10/100Base‑T Ethernet for 3500 Machinery Protection Rack
Product Introduction
The 3500/22‑01‑01‑00 (commonly known as 3500/22M TDI) is the mandatory rack interface & data gateway for Bently Nevada 3500 machinery protection system. It combines the functions of old‑generation 3500/20 Rack Interface Module and transient data communication processor. Installed in Slot #1 (adjacent to rack power supply), it communicates with all M‑series monitor boards via rack backplane bus, collecting steady‑state parameters as well as high‑speed transient vibration waveform data. It uploads full‑rack machinery information to System 1® condition monitoring diagnostic software through 10/100Mbps Ethernet port. The front USB port supports local rack configuration via 3500 rack software. It carries the rack‑OK relay for overall rack health alarm output. TDI is not part of the protection trip path, replacement will not affect the normal protection & shutdown logic of vibration/thrust monitors. Every single 3500 rack requires one TDI or RIM module. It is a high‑demand spare for turbine & compressor monitoring cabinet maintenance.
Specific Application Information
- Rack master interface: Synchronize backplane timing bus for all monitoring modules inside the 3500 rack.
- Transient waveform capture: Collect high‑resolution vibration waveform, Keyphasor phase data for post‑trip fault analysis.
- System 1 software connection: Real‑time upload of vibration, thrust, speed, temperature data to Bently Nevada System1 diagnostic platform.
- Rack global status monitoring: Detect module loss, communication failure, rack power fault and trigger Rack‑OK relay alarm.

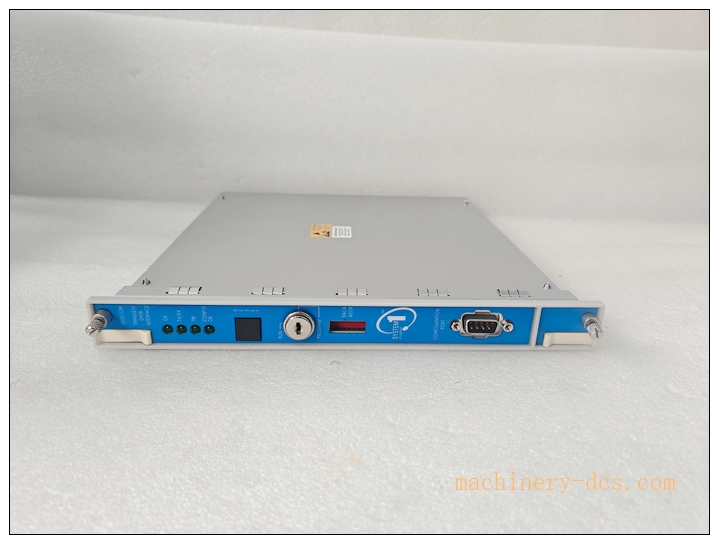

- Local configuration access: Front USB port for laptop connection to configure all monitor parameters, alarm setpoints.
- Static process data transmission: Send steady‑state machinery readings to upper HMI / DCS via network.
- Event & alarm timestamping: IRIG‑B time sync support for unified time mark of all machinery alarms and transient records.
- TDI ordering code explanation:
- 01 = Standard TDI main board
- 01 = I/O sub‑board with 10/100TX Ethernet
- 00 = No hazardous area agency certification
3500/22-01-01-00
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | 3500/22‑01‑01‑00 (3500/22M) |
| Manufacturer | Bently Nevada (Baker Hughes) |

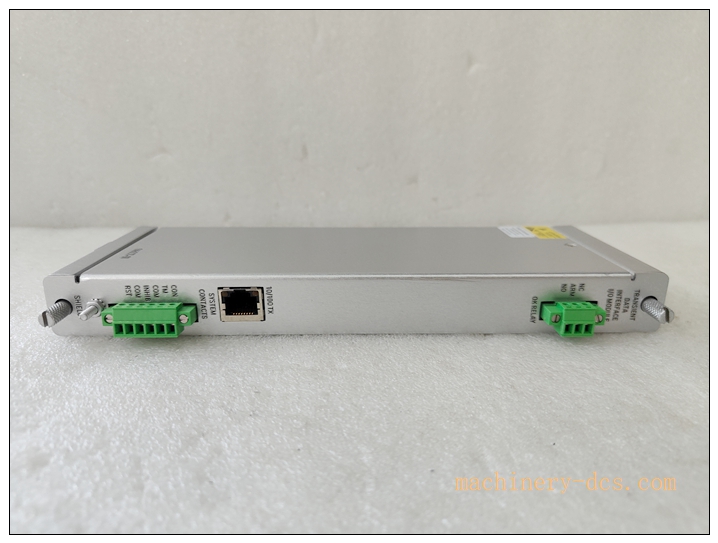

| Communication | 10Base‑T / 100Base‑TX Ethernet, Front USB configuration port |
| Power Supply | Powered by 3500 rack backplane |
| Typical Power Consumption | 5 W |
| Installation | Slot 1 of 3500 rack (next to power supply) |
| Rack‑OK Relay | Built‑in dry contact for overall rack health status |
| Supported Monitors | 3500/40M, 3500/42M, 3500/45, 3500/25 and other M‑series cards |
| Operating Temperature | -30°C ~ +65°C |
| Weight | Approx. 0.9 kg |
| Certification | CE compliant, API 670 compliant |
Main Features
✅ All‑in‑one rack interface: Replace legacy separate RIM + external TDXnet communication processor. ✅ Dual data acquisition: Collect both steady‑state values and high‑speed transient vibration waveforms. ✅ Ethernet + USB dual access: Remote network data upload and on‑site local commissioning. ✅ Rack‑OK health relay: Central alarm for entire rack module & power status. ✅ Backplane timing synchronization: Provide unified clock for vibration & Keyphasor phase measurement. ✅ Hot‑swappable: Module replacement without rack power shutdown. ✅ Independent from protection trip loop: TDI failure will not disable monitor protection and relay trip output. ✅ System1 diagnostic ready: Native protocol for Bently Nevada machinery predictive maintenance platform.
Application Scenarios
- Oil & Gas Refineries: Centrifugal compressor and steam turbine 3500 rack data gateway for System 1.
- Thermal Power Plants: Steam turbine, boiler feed pump and ID fan machinery monitoring system.
- LNG Terminals: Refrigerant compressor vibration waveform capture and fault diagnosis.
- Chemical Plants: High‑speed rotating equipment condition monitoring & predictive maintenance.
- Offshore Platforms: Gas compressor skid 3500 rack communication interface.
- Pipeline Pump Stations: Large pump vibration data upload to central monitoring system.
- Machinery Retrofit Projects: Upgrade old 3500 racks from 3500/20 RIM to newer TDI architecture.
Supporting Components
- 3500 rack chassis and backplane
- 3500/15 rack power supply module
- Vibration / thrust monitor modules (3500/40M, 3500/42M)
- 3500/25 Keyphasor speed module
- 3500/32 relay output module
- System1 condition monitoring software, 3500 rack configuration tool
- Industrial Ethernet switch for System1 network connection
- USB commissioning cable
- Terminal blocks for Rack‑OK relay wiring to DCS / alarm panel
3500/22-01-01-00
Related Series Models (Bently Nevada 3500 Family, 8 Models)
- 3500/22‑01‑01‑00 — Standard TDI (Target Item)
- 3500/20 — Legacy Rack Interface Module (RIM)
- 3500/25 — Keyphasor Speed & Phase Monitor
- 3500/40M — 4‑Channel Proximitor Monitor
- 3500/42M — Seismic Vibration & Position Monitor
- 3500/32 — 4‑Channel Relay Output Module
- 3500/92 — Modbus TCP Communication Gateway
- 3500/15 — Rack Power Supply Module
