Bently Nevada 3500/15 127610-01 AC Power Supply Module

Description

Bently Nevada 3500/15 127610-01 AC Power Supply Module

Executive Brief

The Bently Nevada 3500/15 127610-01 is a dedicated half-height AC power supply module for the Bently Nevada 3500 Series Machinery Protection Systems, engineered to deliver stable, isolated 24 VDC power for continuous operation of the entire monitoring rack. It is a core power component that guarantees uninterrupted 24/7 operation of rotating machinery protection systems in critical industrial scenarios. Brand new original units are in stock globally, with a standard 12-month manufacturer warranty.

127610-01

Core Technical Specifications

1. Manufacturer: Bently Nevada (Baker Hughes)
2. Exact Part Number: 127610-01
3. Model: 3500/15
4. Product Category: AC Power Supply Module
5. Product Origin: USA
6. Form Factor: Half-height module, fits designated half-height slots on the left side of 3500 Series racks
7. Universal AC Input: Rated 110–220 VAC, input range 85–264 VAC (RMS), peak 120–373 VAC
8. Conventional High-voltage AC Input: Rated 220 VAC, input range 175–264 VAC (RMS), peak 247–373 VAC
9. Conventional Low-voltage AC Input: Rated 110 VAC, input range 85–132 VAC (RMS), peak 120–188 VAC
10. Input Frequency: 47–63 Hz
11. Output Parameters: 24 VDC output, 150 W rated output power, maximum 15 A output current
12. Physical Dimensions: 120.7 mm × 50.8 mm × 251.5 mm (4.75 in × 2.0 in × 9.9 in)
13. Weight: Approx. 1.39 kg (3.06 lb)
14. Operating Temperature Range: -30 °C to +65 °C (-22 °F to +149 °F)
15. Storage Temperature Range: -40 °C to +85 °C (-40 °F to +185 °F)
16. Protection Rating: IP20
17. Rack Installation: Each 3500 rack can accommodate 1 or 2 power supplies, supporting mixed AC and DC redundant configuration

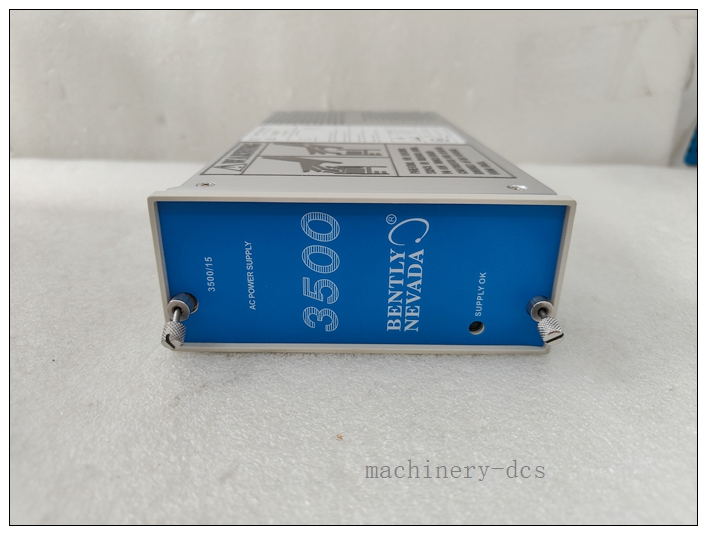

18. Status Indicator: Built-in “Supply OK” LED to indicate normal operating status of the power supply
19. Warranty: 12 months official manufacturer warranty for brand new original units

Key Features & Advantages

• Ultra-wide AC Input Adaptability: Supports universal 85–264 VAC wide voltage input, automatically adapting to different industrial power grid environments worldwide without manual configuration.
• Redundant Configuration Support: Each 3500 rack can install 1 or 2 power supplies, supporting hot-standby redundant operation to eliminate power supply single point of failure.
• High-efficiency Isolated Output: Stable 24 VDC 150 W isolated output provides clean and reliable power for all modules in the 3500 system, effectively suppressing power grid interference.
• Compact Half-height Design: Half-height form factor saves valuable rack space, allowing more functional monitoring modules to be installed in the same 3500 system rack.
• Harsh Environment Adaptability: -30 °C to +65 °C wide operating temperature range enables stable operation in extremely cold or high-temperature industrial field environments.
• Real-time Status Feedback: Built-in “Supply OK” LED directly displays the power supply operating status on the front panel, making on-site maintenance and fault diagnosis extremely convenient.

Typical Application Scenarios

1. Petrochemical Rotating Machinery Protection: Core power supply unit for 3500 machinery protection systems on large compressors, pumps and turbines in refineries and chemical plants.
2. Power Generation Turbine Monitoring: Stable power supply for 3500 protection systems on steam turbines and gas turbines in thermal power and combined cycle power plants.
3. Offshore Oil & Gas Platforms: Reliable power supply for 3500 monitoring systems on offshore oil and gas production facilities, adapting to harsh marine operating conditions.
4. Mining & Metallurgical Equipment Monitoring: Power supply unit for 3500 protection systems on large motors, rolling mills and mining equipment in metallurgical and mining sites.
5. Pipeline & Compressor Station Monitoring: Continuous power supply for 3500 machinery protection systems on long-distance natural gas pipeline compressor stations.

Related Supporting Product Model Display

1. Bently Nevada 3500 System Rack: Standard 3500 series system frame, providing dedicated half-height installation slots for 3500/15 power supply modules.
2. Bently Nevada 3500/16 DC Power Supply Module: DC input power supply unit, which can form mixed AC-DC redundant power configuration with 3500/15 in the same rack.
3. Bently Nevada 3500/42M Vibration & Position Monitor: Core monitoring module powered by 3500/15, for continuous vibration and shaft position monitoring of rotating machinery.
4. Bently Nevada 136719-01 Internal Barrier Ground / Power Module: Intrinsically safe power distribution accessory, working with 3500/15 to provide safe power for hazardous area I/O modules.

Frequently Asked Questions

Q1: What is the maximum output power of Bently Nevada 3500/15 127610-01?
A1: Its rated output power is 150 W, providing sufficient 24 VDC power for all modules in a standard 3500 system rack.

Q2: Can multiple 3500/15 power supplies be installed in one 3500 rack?
A2: Yes, each 3500 rack can accommodate 1 or 2 power supplies, supporting redundant hot-standby operation.

Q3: What is the operating temperature range of this power supply module?
A3: It supports an extended industrial operating temperature range from -30 °C to +65 °C, adapting to extremely harsh industrial site environments.

Q4: What is the form factor of 3500/15 127610-01?
A4: It is a half-height module, designed to be installed in the dedicated half-height slots on the left side of the 3500 series rack.

Q5: Does this module support universal wide AC voltage input?
A5: Yes, the universal AC version supports 85–264 VAC RMS input, automatically adapting to different industrial power grid conditions.
