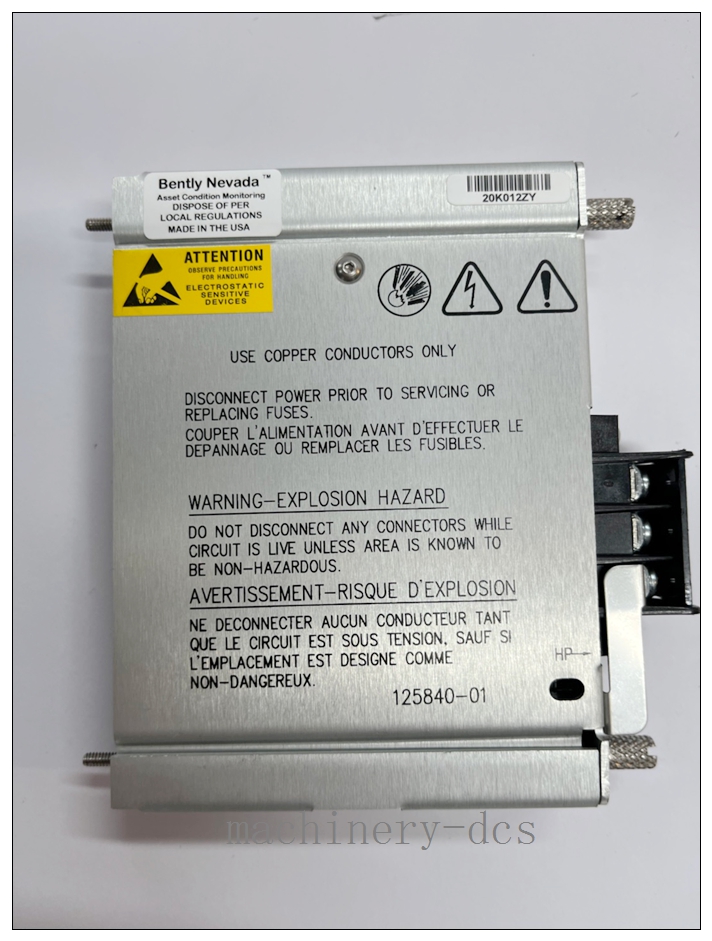

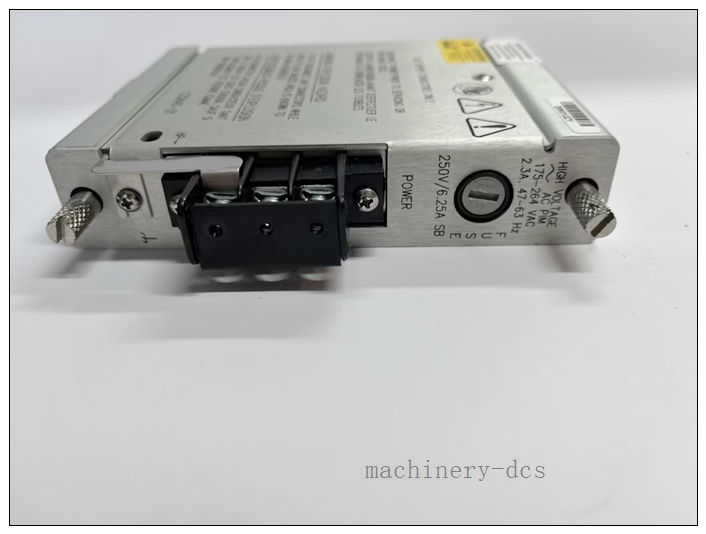

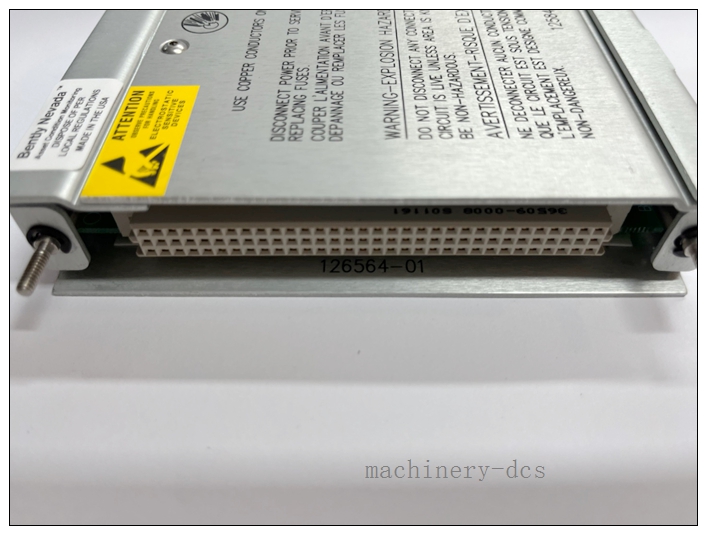

Bently Nevada 125840-01 High Voltage AC Power Input Module

Description

Bently Nevada 125840-01 High Voltage AC Power Input Module

Executive Brief

The Bently Nevada 125840-01 is a high-voltage AC power input module purpose-built for the 3500 Machinery Protection System, which converts wide-range industrial AC input into regulated, stable 24 VDC power for all functional modules in the 3500 system rack. It supports hot-swappable replacement, meets strict industrial explosion-proof standards, and is a core power component that guarantees uninterrupted 24/7 operation of critical rotating machinery protection systems in high-voltage industrial power grid scenarios.

350015 125840-01

Core Technical Specifications

1. Manufacturer: Bently Nevada (a Baker Hughes company)
2. Exact Part Number: 125840-01
3. Product Category: High Voltage AC Power Input Module
4. Product Series: 3500 Machinery Protection System
5. Product Origin: USA
6. Input Voltage Range: 100-240 VAC or 200-480 VAC (wide-range industrial AC input)
7. Peak Operating Threshold: 247 to 373 VAC for 175-264 VAC continuous input version
8. Input Frequency: 47-63 Hz (compatible with standard global industrial grid frequencies)
9. Output Voltage: Regulated 24 VDC
10. Built-in Protection: Over-voltage, over-current and short-circuit protection
11. Redundancy Design: Multi-channel input with full electrical isolation
12. Installation Method: Directly mounted on the back of the 3500 system chassis, compatible with 3500/15 power frame
13. Explosion-proof Certification: Meets Class 1 Zone 2 and ATEX Zone 2 explosion-proof standards
14. Enclosure Rating: IP67
15. Operating Temperature Range: -20 °C to +65 °C
16. Storage Temperature Range: -40 °C to +85 °C
17. Humidity Tolerance: 95% non-condensing
18. Weight: Approx. 0.45 kg (some industrial configurations approx. 2 kg)
19. Compliance: Fully meets API 670 industrial machinery protection standards
20. Key Feature: Hot-swappable, supports on-site replacement without system power outage
21. Warranty: 12 months official manufacturer warranty for brand new original units

Key Features & Advantages

• Ultra-wide High-voltage AC Adaptability: Supports 100-480 VAC wide-range industrial high-voltage AC input, directly adapting to high-voltage industrial power grids without additional step-down transformers.
• Hot-swappable Maintenance Support: Allows on-site hot replacement without shutting down the entire 3500 system, greatly reducing system downtime and maintenance costs.
• Multi-layer Safety Protection: Built-in over-voltage, over-current and short-circuit protection, with full electrical isolation between input and output, effectively eliminating power safety hazards.
• Strict Explosion-proof Compliance: Meets Class 1 Zone 2 and ATEX Zone 2 explosion-proof certification requirements, suitable for deployment in hazardous industrial areas with flammable gases.
• Harsh Environment Durability: IP67 enclosure rating and wide operating temperature range enable stable operation in extremely harsh industrial field environments.
• Native 3500 System Compatibility: Perfectly matches the 3500 series system frame, no additional adaptation work required for system integration, plug-and-play deployment.

Typical Application Scenarios

1. Petrochemical High-voltage Scenarios: Core power supply unit for 3500 machinery protection systems on large compressors and turbines in refineries and chemical plants with 380V/480V industrial power grids.
2. Heavy Industry Power Generation: High-voltage power input module for 3500 turbine protection systems in large thermal power plants and heavy industrial power facilities.
3. Offshore Oil & Gas Platforms: Reliable high-voltage power supply for 3500 monitoring systems on offshore oil and gas production platforms, meeting strict marine explosion-proof requirements.
4. Mining & Metallurgical Sites: High-voltage power input unit for 3500 protection systems on large mining equipment and metallurgical rolling mills, adapting to complex industrial power environments.
5. Large Pipeline Compressor Stations: Stable power supply for 3500 machinery protection systems on long-distance natural gas pipeline high-voltage compressor stations.

Related Supporting Product Model Display

1. Bently Nevada 3500/15 Power Frame: Dedicated system rack frame for 125840-01, providing physical installation and bus signal connection.
2. Bently Nevada 3500/16 DC Power Supply Module: DC input power unit, which can form AC-DC redundant power configuration with 125840-01 to further improve system power supply reliability.
3. Bently Nevada 3500/42M Vibration & Position Monitor: Core monitoring module powered by 125840-01, for continuous vibration and shaft position monitoring of rotating machinery.
4. Bently Nevada 136719-01 Internal Barrier Ground / Power Module: Intrinsically safe power distribution accessory, working with 125840-01 to provide safe power for hazardous area I/O modules.

Frequently Asked Questions

Q1: What is the core function of Bently Nevada 125840-01?
A1: It is a high-voltage AC power input module, converting wide-range industrial high-voltage AC input into stable 24 VDC power for the 3500 machinery protection system.

Q2: Does 125840-01 support hot-swappable replacement?
A2: Yes, it supports hot-swappable on-site replacement, no system power outage required during maintenance.

Q3: What explosion-proof standards does this module meet?
A3: It meets Class 1 Zone 2 and ATEX Zone 2 explosion-proof certification standards, suitable for hazardous industrial area deployment.

Q4: What is the maximum input voltage that 125840-01 can support?
A4: It supports up to 480 VAC high-voltage AC input, directly adapting to high-voltage industrial power grids.

Q5: What is the standard warranty period for brand new original units?
A5: All brand new original 125840-01 modules come with a 12-month official manufacturer warranty.
