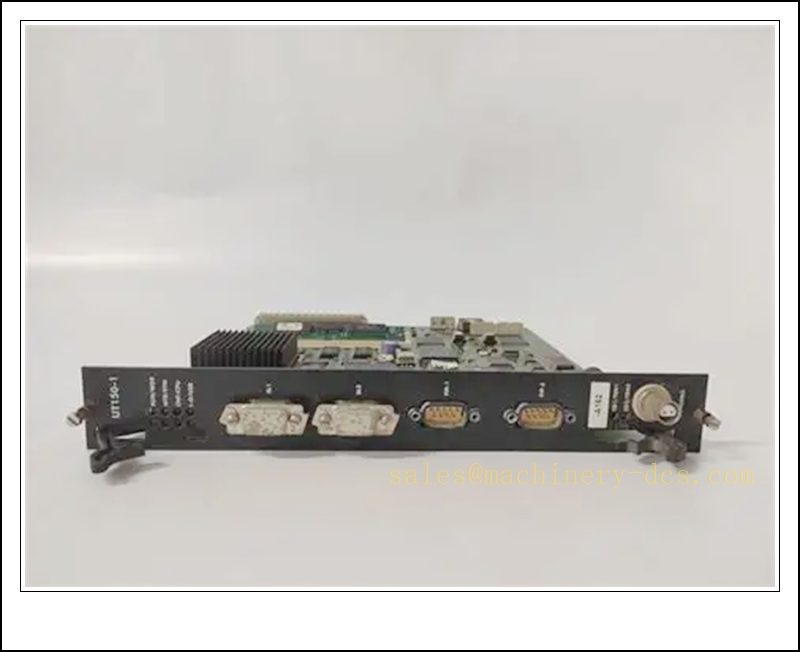

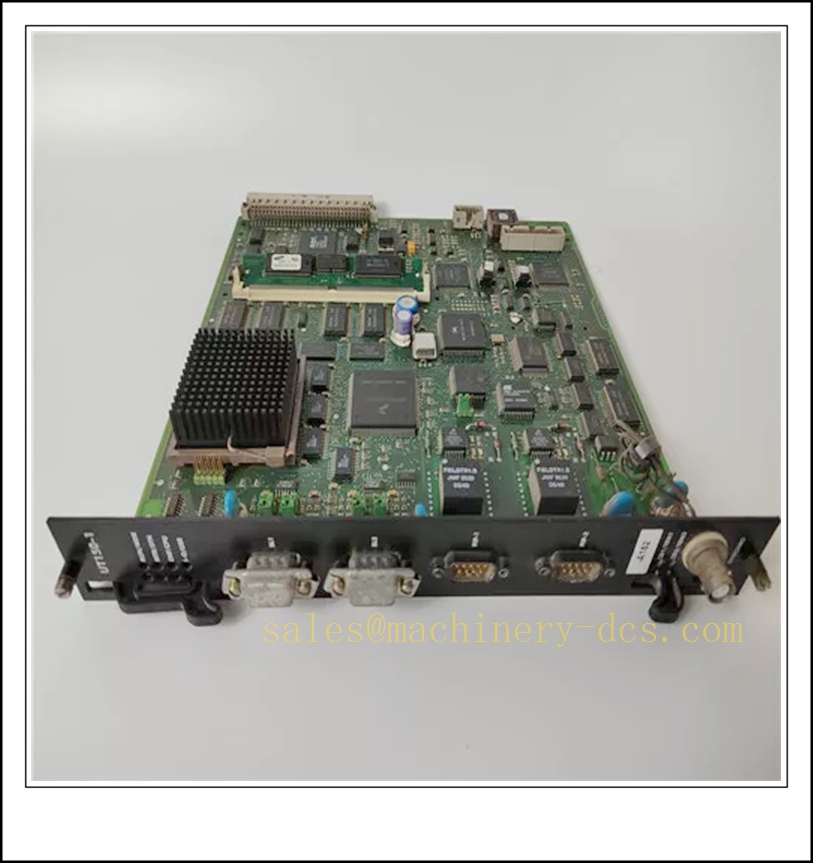

ALSTOM UT150-1 (KWZ6029068P0157) WorldFIP Network Coupler & Local I/O Processor Module, Alspa CE2000/CE3000 DCS System (1 Mbps Version)

  1. UT150-2 KWZ6018990P0457: Updated 2.5Mbps WorldFIP coupler (successor model)
  2. C0201500: Alternate Alstom drawing code for UT150-1
  3. CE2000 Main CPU Module: Rack host controller paired with UT150-1
  4. F8000 WorldFIP Remote I/O Station: Field I/O node on WorldFIP bus
  5. Alspa CE2000 Analog Input Module: 4–20mA I/O card managed by UT150-1
  6. Alspa CE2000 Digital Output Module: Discrete relay output sub-card
  7. CE3000 Rack Power Supply Unit: Chassis power for Alspa CE racks
  8. WorldFIP 1Mbps Bus Terminator: Copper line termination resistor for 1M network
Category: SKU: ALSTOM UT150-1 (KWZ6029068P0157) Brand:

Description

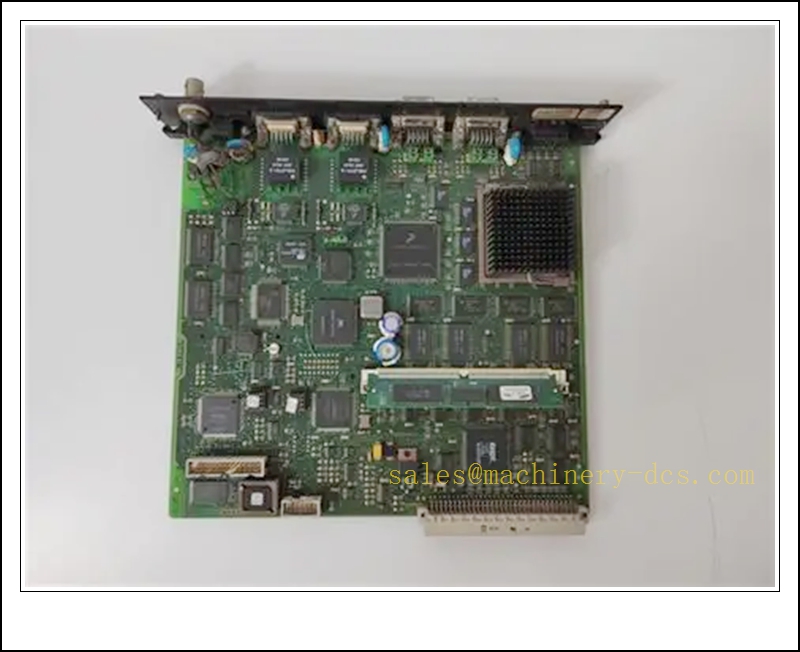

ALSTOM UT150-1 (KWZ6029068P0157) WorldFIP Network Coupler & Local I/O Processor Module, Alspa CE2000/CE3000 DCS System (1 Mbps Version)



Product Description

The UT150-1, part number KWZ6029068P0157, is a rack-mounted network coupler and local control processor for legacy Alstom Alspa CE2000 / CE3000 distributed control systems. It is the predecessor variant of UT150-2, designed for the original 1 Mbps copper WorldFIP fieldbus, while UT150-2 supports upgraded 2.5 Mbps bus speed. Based on Motorola 68040 33 MHz microprocessor, the module undertakes three core functions: WorldFIP fieldbus coupling between main DCS rack and F8000 remote I/O stations, management of up to 16 local I/O sub-modules, and execution of independent local control logic during host communication loss. It handles real-time process data exchange, channel diagnostics, and on-board parameter storage. This obsolete spare is widely used for lifecycle maintenance, turbine, boiler and balance-of-plant control in power generation facilities.



Technical Parameters

Item Specification
Manufacturer ALSTOM (legacy Alspa DCS)
Model UT150-1, Code: KWZ6029068P0157
Function WorldFIP 1Mbps Coupler + Local I/O & Control Processor
CPU Motorola 68040, 33 MHz
Fieldbus WorldFIP, copper medium, 1 Mbps
I/O Capacity Controls up to 16 local I/O sub-modules
Power Supply 5 VDC rack backplane supply, auxiliary isolated logic rails
Form Factor Standard Alspa CE rack plug-in module
Dimensions 265 × 36 × 265 mm
Weight Approx. 0.60 kg
Diagnostics Bus error counter, watchdog supervision, I/O channel fault logging, memory parity detection
Operating Temperature 0 °C ~ +55 °C
Storage Temperature -40 °C ~ +85 °C
Protection IP20, for indoor cabinet installation
Compliance CE, EMC certified for power station industrial environments
Status Indicator LEDs for rack power, WorldFIP link status, run mode, watchdog and fault alarm
