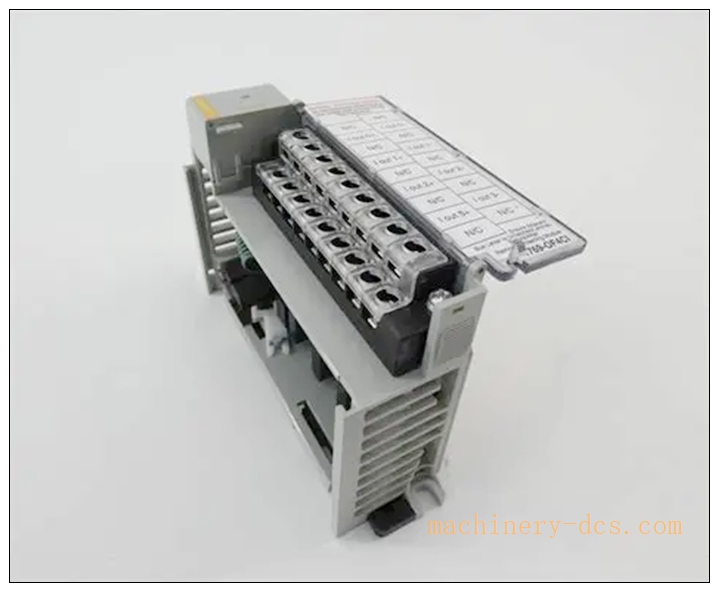

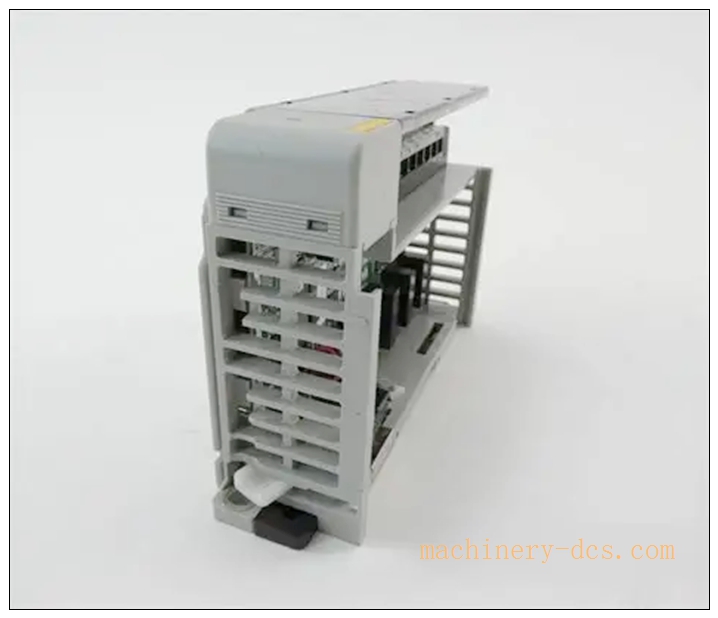

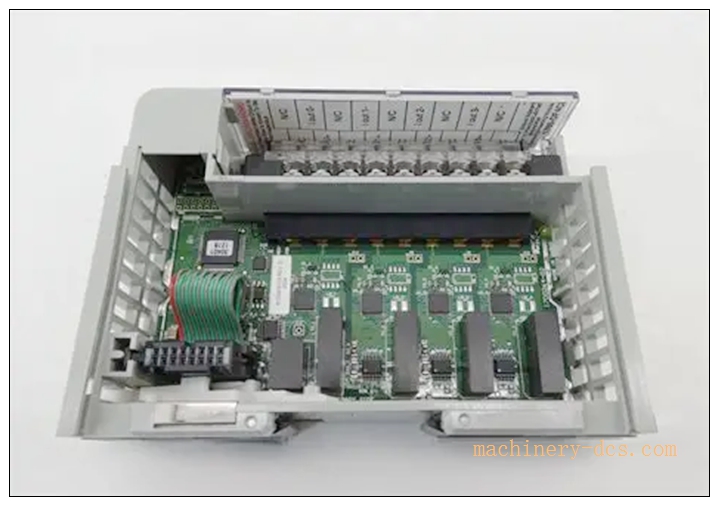

Allen‑Bradley 1769-OF4CI CompactLogix 4-Channel Isolated Current Analog Output Module
Product Description
The 1769-OF4CI is a 4-channel galvanically isolated current analog output module within Rockwell Allen‑Bradley Compact I/O series for CompactLogix controllers. It converts digital setpoint values transmitted over the CompactLogix backplane into standard 4–20mA or 0–20mA current loop signals to control modulating valves, actuator positioners and variable frequency drives. It provides galvanic isolation between the output group and PLC backplane to suppress ground loop noise and protect rack electronics from field-side electrical transients. This module is optimized for current loop transmission, ideal for long field wiring distances commonly seen in process industries. It features removable wiring terminals, open-circuit detection, short-circuit protection and continuous channel diagnostic reporting back to the CompactLogix controller. It adopts compact DIN rail mounting and supports hot swap replacement.
Technical Specifications
- Part Number: 1769-OF4CI
- Manufacturer: Rockwell Automation (Allen‑Bradley)
- Series: CompactLogix Compact I/O
- Device Type: 4-Channel Isolated Current Analog Output Module
- Output Channels: 4 differential isolated channels (current only)
- Current Ranges: 4–20mA, 0–20mA; full scale range: 3.2~21mA, 0~21mA
- Resolution: 15-bit
- Isolation Rating: 500VAC / 710VDC between output group and backplane
- Backplane Current Draw: 165mA @5VDC; 110mA @24VDC
- Power Dissipation: 3.3 W
- Load Resistance: Max 500Ω per channel
- Protection: Short-circuit protection, open circuit detection for current loop
- Operating Temperature: 0°C ~ +60°C
- Storage Temperature: -40°C ~ +85°C
- Relative Humidity: 5%~95%, non-condensing
- Mounting: 35mm DIN rail / panel mount
- Dimensions: 118 × 35 × 87 mm
- Weight: Approx. 0.27 kg
- Certifications: UL508, CE, Class I Div.2 hazardous location approval
1769-OF4CI
Key Features
- Four galvanically isolated current output channels for 4–20mA process control loops
- Optimized for long-distance field signal transmission with strong anti-interference capability
- Built-in open-loop detection and short-circuit protection for field wiring fault diagnosis
- Removable wiring arm terminals for convenient wiring and module replacement
- Continuous self-diagnosis to report channel faults to CompactLogix CPU
- Compact Compact I/O form factor for flexible cabinet layout
- Hot-swappable design for rack maintenance without full system shutdown
- Configuration and diagnostics via Studio5000 programming software
Application Scenarios
- Petrochemical skid modulating valve closed-loop control
- Water & wastewater treatment plant flow and level control valves
- Food & beverage batch process temperature and flow regulation
- Power plant auxiliary skid analog actuator control
- Cement and mining plant process valve positioning
- HVAC damper and control valve modulation
- Renewable energy skid local closed-loop process control
- Refinery auxiliary equipment analog loop control
Matching / Auxiliary Components
- CompactLogix controller (L30ER, L35E, L43 etc.)
- 1769 Compact I/O chassis, expansion cable and end cap
- 1769 series rack power supply
- 1769-RN10 / RN20 removable wiring arm
- Shielded twisted pair instrument cables for 4–20mA loop
- Modulating control valves, I/P positioners and VFD
- Studio5000 programming & diagnostic software
- 1769-ECL / ECR end termination caps
