Allen‑Bradley 1769-L33ER CompactLogix 5370 PAC Controller, 2MB, Dual EtherNet/IP with DLR

Description

Allen‑Bradley 1769-L33ER CompactLogix 5370 PAC Controller, 2MB, Dual EtherNet/IP with DLR

Product Description

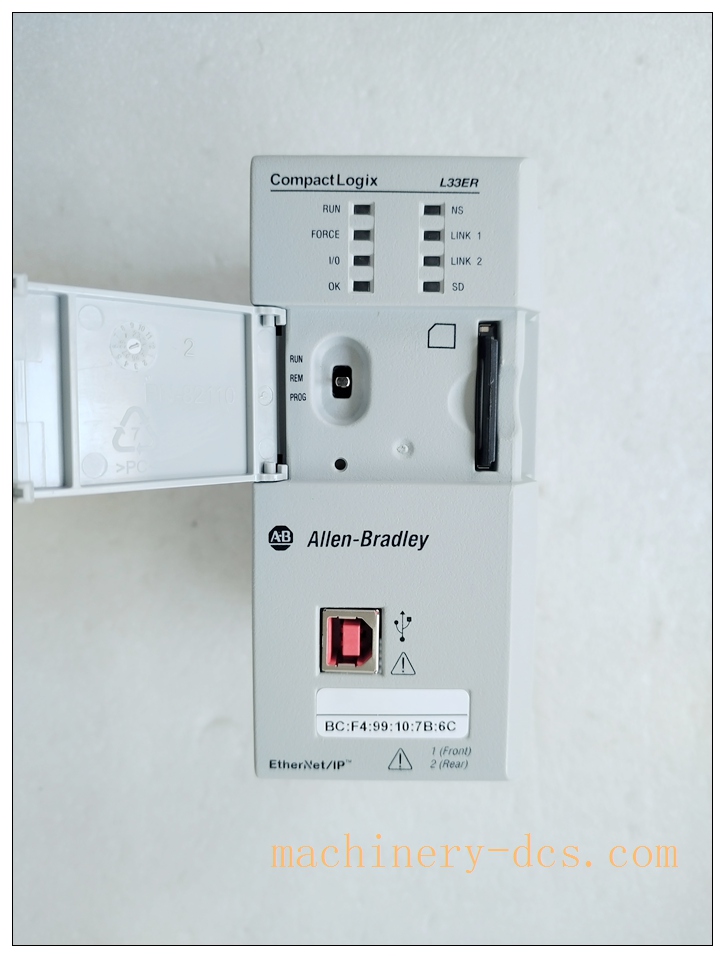

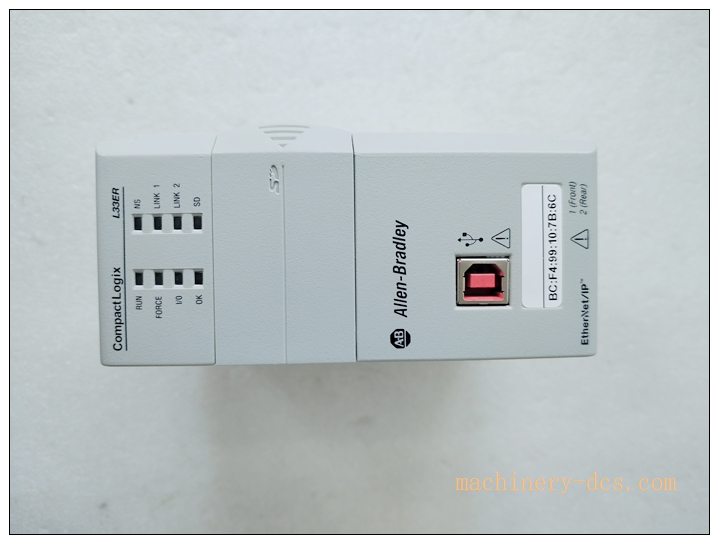

The 1769-L33ER is Rockwell Allen‑Bradley CompactLogix 5370 series mid-range programmable automation controller (PAC). It is equipped with 2MB user memory, dual built-in EtherNet/IP ports supporting DLR (Device Level Ring) fault-tolerant ring network, one USB programming port and an SD card slot for program backup. It can drive up to 16 local 1769 Compact I/O modules with 3 expansion banks and supports maximum 32 EtherNet/IP nodes. It executes sequential logic, analog closed-loop regulation, alarm handling and tag communication tasks. It communicates with local I/O via CompactLogix backplane, connects HMI, remote I/O and upper SCADA through the dual EtherNet/IP port. It adopts compact DIN rail integrated design and is widely used for medium-sized skid and process automation projects.

1769-L33ER

Technical Specifications

• Part Number: 1769-L33ER
• Manufacturer: Rockwell Automation (Allen‑Bradley)
• Series: CompactLogix 5370 L3
• Device Type: PAC Programmable Automation Controller
• User Memory: 2 MB
• I/O Expansion: Max 16 local 1769 I/O modules, up to 3 expansion banks
• EtherNet/IP Nodes: Max 32 nodes

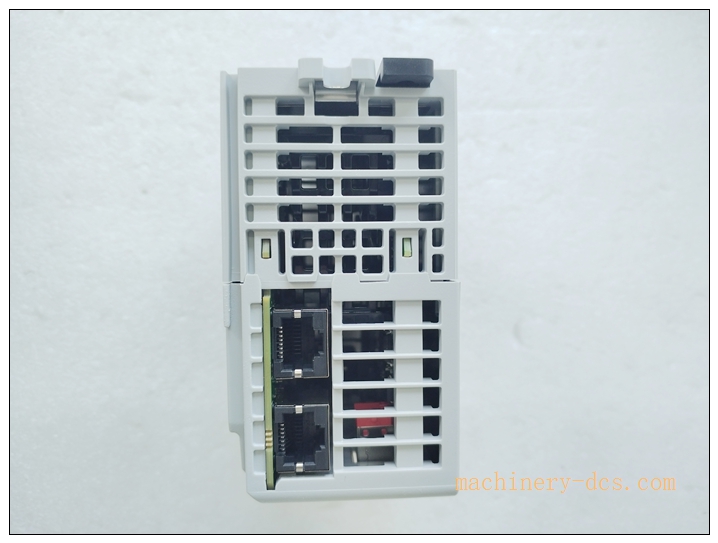

• Ethernet Ports: 2 × RJ45 10/100Mbps copper, support DLR
• Local Port: USB2.0 programming port
• Storage: SD card slot (shipped with 1GB SD card, max support 2GB)
• Power Dissipation: 4.5 W
• Operating Temperature: 0°C ~ +60°C
• Storage Temperature: -40°C ~ +85°C
• Relative Humidity: 5%~95%, non-condensing
• Mounting: 35mm DIN rail or panel mounting
• Weight: Approx. 0.48 kg
• Certifications: UL508, CE, Class I Div.2 hazardous location approval

Key Features

1. 2MB 5370 controller with dual EtherNet/IP port, integrated DLR ring redundancy
2. Built-in USB port for program upload/download, firmware update and on-site diagnostics
3. SD card slot for project backup, quick program restore and firmware storage
4. Supports multi-task scheduling, analog/digital process control and alarm logging
5. Native EtherNet/IP communication for HMI, remote I/O and upper SCADA system
6. Compact integrated CompactLogix controller, flexible layout for small & medium cabinet
7. Comprehensive system fault diagnostics and tag-based fault reporting
8. Programming and configuration via Studio5000 / RSLogix5000 software

1769-L33ER

Application Scenarios

• Petrochemical modular skid process control
• Water & wastewater treatment plant distributed automation
• Food & beverage batch production temperature/flow closed-loop control
• Power plant auxiliary equipment local PLC control
• Packaging and material handling machinery automation
• Cement factory auxiliary fan and pump control system
• Renewable energy small power station skid control
• Factory EtherNet/IP ring network medium-size control system

Matching / Auxiliary Components

• 1769 CompactLogix chassis, expansion cable and I/O end cap
• 1769 series I/O modules (1769-IF4I,1769-OF4CI,1769-IQ16 etc.)
• 1769-PA2 / PA4 CompactLogix rack power supply
• 1784-SD1 / SD2 SD memory card
• Shielded CAT5e industrial Ethernet cable
• Studio5000 / RSLogix5000 programming software
• PanelView Plus HMI (2711P series)
• 1734-AENTR Point I/O EtherNet/IP remote adapter
