ABB UFC760BE43 3BHE004573R0043 Generator Excitation Control Board, Unitrol Excitation System Controller, Power Plant Generator Automation Spare Part

Description

ABB UFC760BE43 3BHE004573R0043 Generator Excitation Control Board, Unitrol Excitation System Controller, Power Plant Generator Automation Spare Part

Product Application

UFC760BE43 is a core control board for ABB Unitrol series generator excitation systems. It implements excitation regulation logic, generator voltage & reactive power closed-loop control, excitation limit protection and internal bus communication. It receives generator PT/CT measurement signals, calculates excitation setpoints and outputs firing commands to thyristor power modules, stabilizing generator terminal voltage and reactive power output.

• Thermal power plant generator Unitrol excitation cabinet control
• Hydropower station synchronous generator excitation regulation
• Combined cycle power unit generator excitation control system
• Power plant generator over-excitation / under-excitation protection logic processing
• Retrofit and spare replacement for legacy ABB Unitrol excitation systems
• Generator synchronisation and reactive power load adjustment

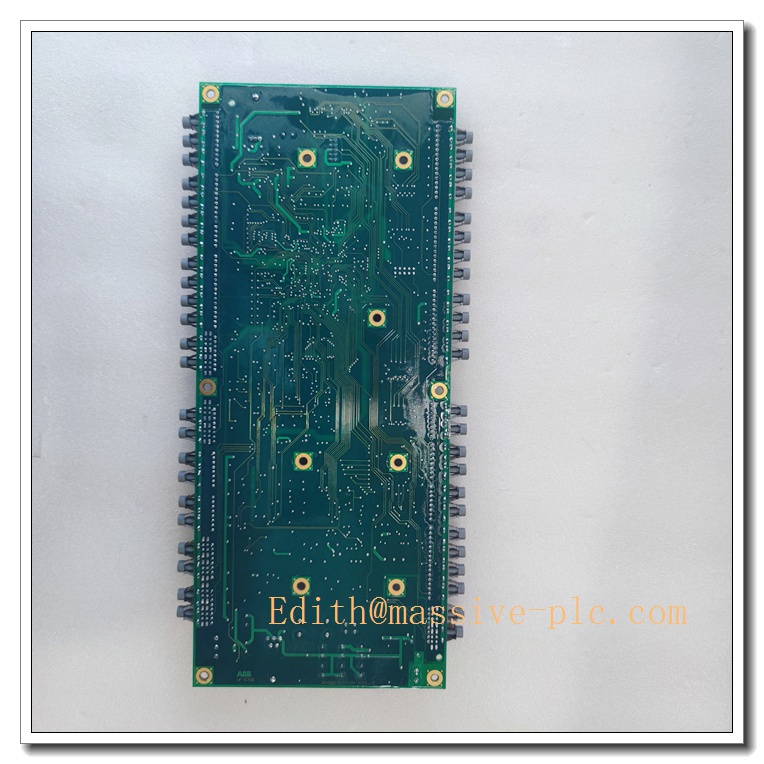

UFC760BE43 3BHE004573R0043

Specifications

• Part Number: UFC760BE43, 3BHE004573R0043
• Brand: ABB
• Product Type: Unitrol Excitation Main Control Board
• Compatible System: ABB Unitrol Excitation System
• Mounting: Eurocard rack mounting inside excitation control cabinet
• Dimension: 345 × 215 × 35 mm
• Weight: Approx. 0.82 kg
• Power supply: 24VDC auxiliary power supply
• Input signals: Generator voltage, current, rotor measurement signals
• Output: Thyristor firing pulse commands
• Protection Class: IP20 (cabinet installation only)
• Condition: Original new / refurbished spare available
• Compliance: CE, IEC power generation excitation control standard

Parameters

• Control Modes: Automatic voltage regulation (AVR), manual field current regulation
• Built-in Limits: Overexcitation, underexcitation, stator current, V/Hz limiter
• Communication: Internal backplane bus for data exchange with measurement & I/O boards
• Operating Temperature: -20°C ~ +60°C
• Storage Temperature: -40°C ~ +85°C
• Relative Humidity: 5%~95% RH, non-condensing
• Shock & Vibration: Comply with IEC 60068 power plant vibration standard
• Status Indicator: On-board LED indicators for power, run, alarm and fault status
• Diagnostic: Hardware self-test, signal loss, pulse output and communication fault detection

Key Features

1. Main control board for ABB Unitrol generator excitation system, core AVR voltage regulation function
2. Supports automatic voltage mode and manual field current mode, seamless mode switching
3. Integrated multiple excitation limiters to protect generator and excitation equipment
4. High-speed sampling of generator voltage and current signals, fast response for grid disturbance
5. Eurocard plug-in design for convenient on-site maintenance and replacement
6. Conformal coated PCB, dust and moisture resistance for power plant cabinet environment
7. Real-time event recording and fault log for post-fault analysis
8. Critical spare for ABB Unitrol excitation cabinets widely used in power stations

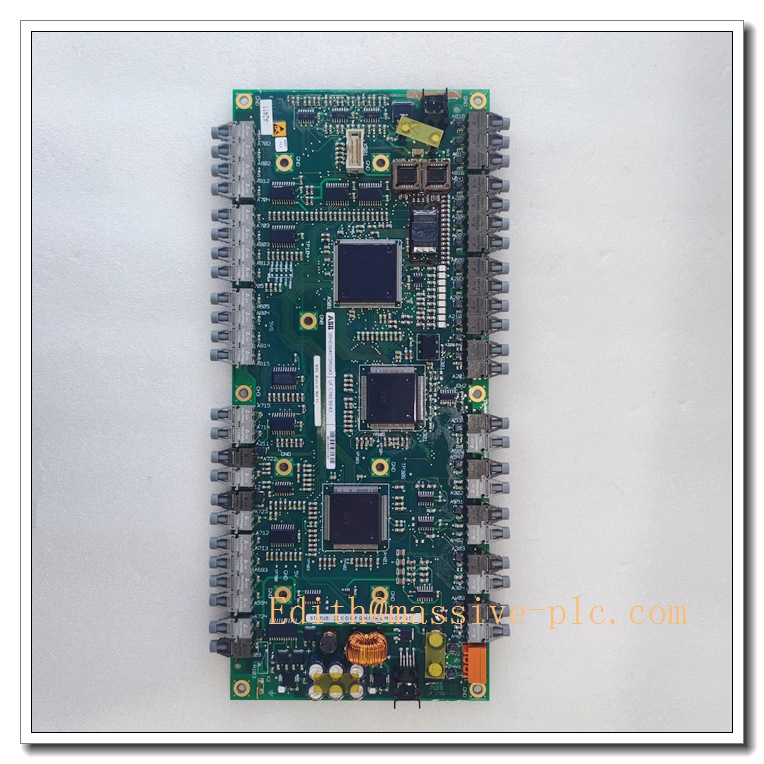

UFC760BE43 3BHE004573R0043

ABB Same Series Related Models (≥6)

1. UFC760BE43 3BHE004573R0043
2. UFC760BE41
3. UFC760BE42
4. UFC760AE01
5. UFC719AE01
6. UFC721AE
7. UFC760BE142

Maintenance

• Routine inspection: Check PCB dust accumulation, backplane connector and LED status every 6–12 months
• Clean board surface with dry compressed air; liquid solvent cleaning is strictly prohibited
• ESD protection must be adopted during disassembly, anti-static wristband required
• If voltage regulation unstable or excitation fault alarm occurs, power off and check PT/CT signal wiring and backplane contact
• Do not energize the module if PCB corrosion, burn marks or condensation are found
• We support function testing, refurbishment and spare replacement service for this UFC760BE43 excitation control board

Installation

1. Cut off 24VDC auxiliary power and high voltage signal power before replacement, implement lockout-tagout procedure.
2. Wear anti-static wristband to prevent electrostatic damage to control circuit.
3. Open excitation cabinet door, release locking mechanism of old UFC760BE43 board.
4. Pull out Eurocard board gently, mark all signal cables and backplane connectors before disconnection.
5. Insert new board along cabinet guide rail and lock firmly.
6. Reconnect all signal and backplane connectors strictly according to marking.
7. Restore auxiliary power supply, perform module self-test and internal bus communication check.
8. Configure AVR parameters, perform static excitation test, verify voltage regulation and limit protection functions before generator commissioning.
