ABB SR511 (3BSE000863R1) 24V‑5V Power Regulator Module for Advant OCS / AC450 Controller System

Description

ABB SR511 (3BSE000863R1) 24V‑5V Power Regulator Module for Advant OCS / AC450 Controller System

Product Details

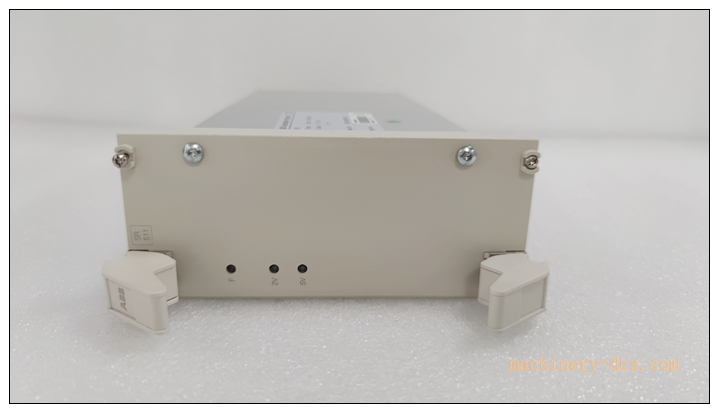

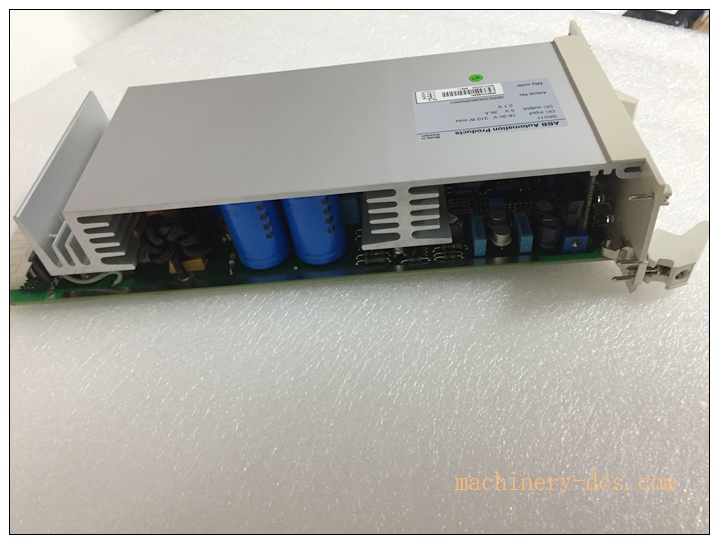

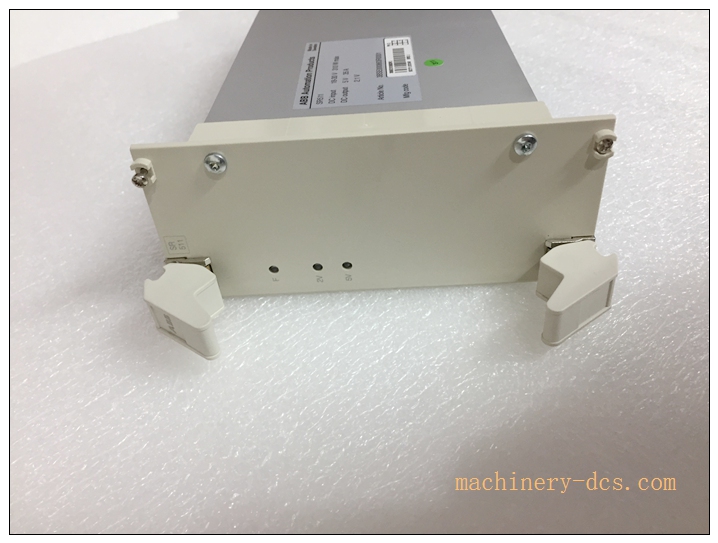

The SR511, part number 3BSE000863R1, is a rack‑mount DC‑DC power regulator module for ABB Advant OCS and AC450 / AC460 controller racksABB Group. It accepts 24 VDC system input and delivers stabilized 24 VDC and 5 VDC regulated outputs to supply CPU, memory chips, communication and I/O sub‑modules inside the controller unit. Rated output: 2 A for 24 V channel, 1 A for 5 V channel, tight load‑line regulation and low output ripple ensure stable power for sensitive logic circuits. It adopts Eurocard plug‑in structure for Advant backplane, supports hot‑swap replacement. Front‑panel LED indicators visualize power‑on status and fault conditions. This is an EOL discontinued hardware, widely used as original spare‑part and retrofit replacement for legacy power, petrochemical and pulp‑paper DCS racks.

SR511 3BSE000863R0001

Applications

‑ Power plant AC450 / AC460 DCS controller internal power regulation ‑ Petrochemical Advant OCS distributed control cabinet power conditioning ‑ Pulp & paper mill legacy ABB controller rack power spare‑part replacement ‑ Chemical plant continuous‑process DCS system maintenance & retrofitting ‑ Metallurgy industry Advant controller unit power supply refurbishment ‑ Water‑wastewater treatment Advant OCS automation project spare‑parts ‑ Internal logic power source for MasterPiece DCS controller hardware

Related Series Models (6+)

1. SR512
2. DSPC172
3. DSCL110A
4. SC520
5. DSBC172
6. DSAX110A
7. DSDX110A

Key Features

1. Dedicated DC‑DC regulator for Advant OCS / AC450‑AC460 controllers, converts 24 VDC input into well‑regulated 24 V and 5 V output rails.
2. 2 A @24VDC, 1 A @5VDC output capacity, meets power consumption requirement of CPU, memory and communication sub‑modules.
3. Excellent load and line voltage regulation performance, low ripple noise, protects sensitive digital logic circuits.
4. Built‑in multiple protection mechanisms: over‑current, over‑voltage and over‑temperature protection for fault self‑protection.
5. Standard Eurocard rack‑mount form factor, fits Advant backplane bus, supports hot‑swap maintenance without system shutdown.
6. Front‑panel LED status indicators for quick visual diagnosis of power‑on and fault status.
7. Industrial‑grade component design, 0℃‑55℃ operating temperature for long‑term 24‑7 cabinet‑based continuous operation.
8. Perfect hardware compatibility with AC450A09, AC460A02 and other Advant system unitsABB Group.

SR511 3BSE000863R0001

Main Functions

1. Receive 24 VDC input power from rack power supply, output stabilized 24 V and 5 V DC power for controller internal logic circuits.
2. Provide reliable 5 V power for CPU board, memory chips and logic‑level peripheral circuits.
3. Supply regulated 24 V power for communication interfaces and sub‑modules inside AC450 / AC460 controller.
4. Implement over‑current, over‑voltage and over‑temperature protection; cut off output automatically under abnormal conditions to avoid downstream hardware damage.
5. Indicate module working and fault status via front‑panel LED lamps for on‑site maintenance personnel.
6. Support hot‑swap plug‑and‑play replacement to finish power‑regulator maintenance without stopping DCS control logic.
7. Suppress input‑side power‑supply ripple and interference, improve power‑supply quality for the whole controller unit.
8. Cooperate with DSPC172, SC520 and other hardware to constitute complete Advant OCS controller power‑supply architecture.
