ABB SC510 (3BSE003832R1) Submodule‑Carrier Without CPU for Advant OCS / AC450‑AC460 DCS System

Description

ABB SC510 (3BSE003832R1) Submodule‑Carrier Without CPU for Advant OCS / AC450‑AC460 DCS System

Product Details

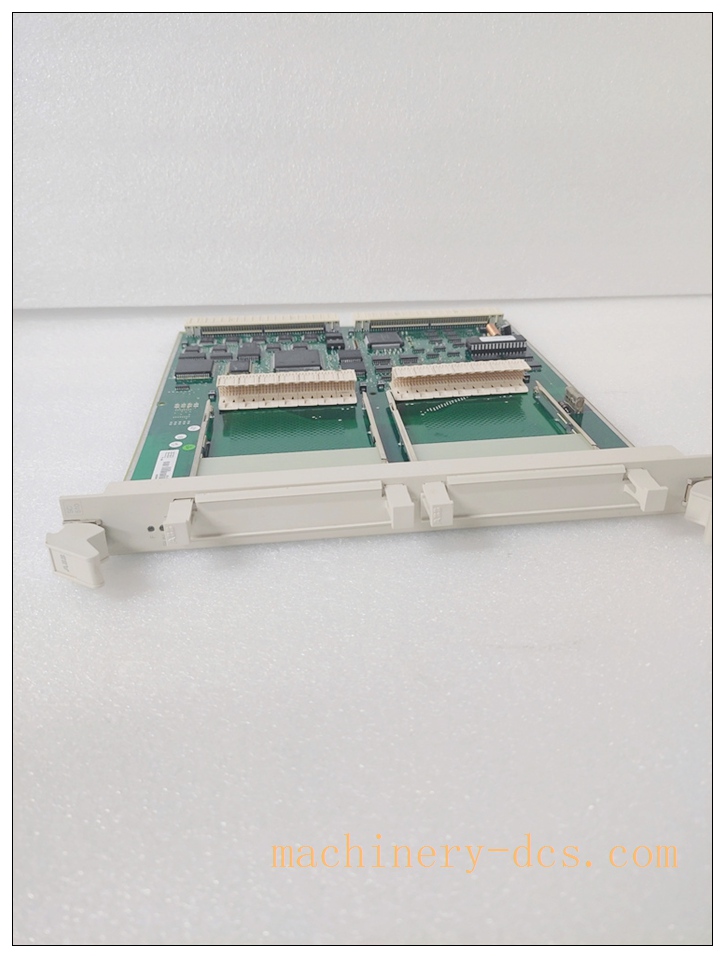

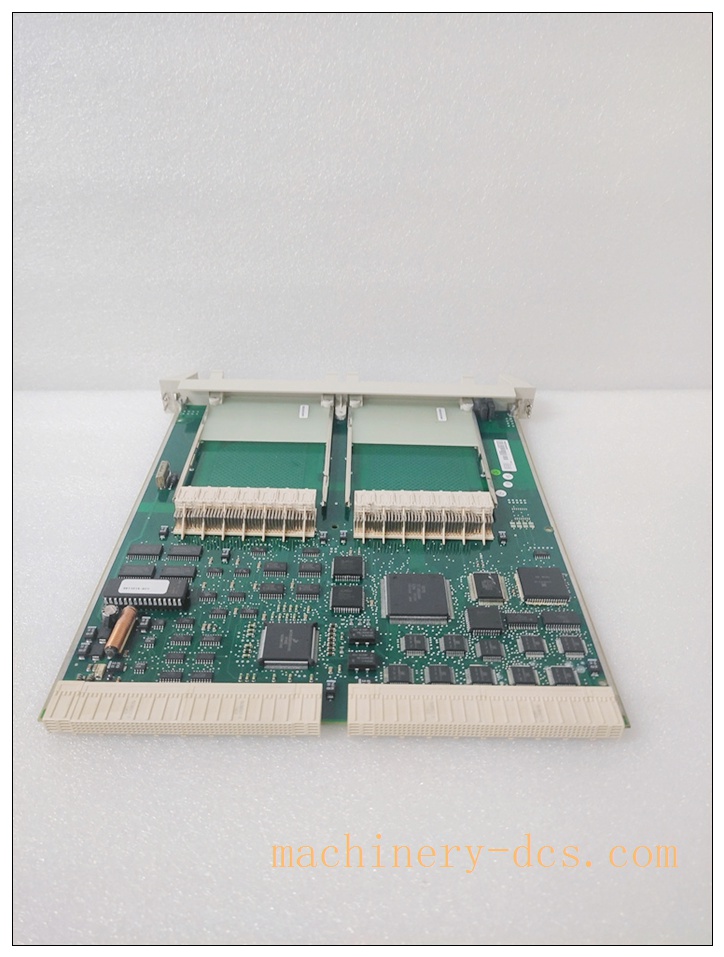

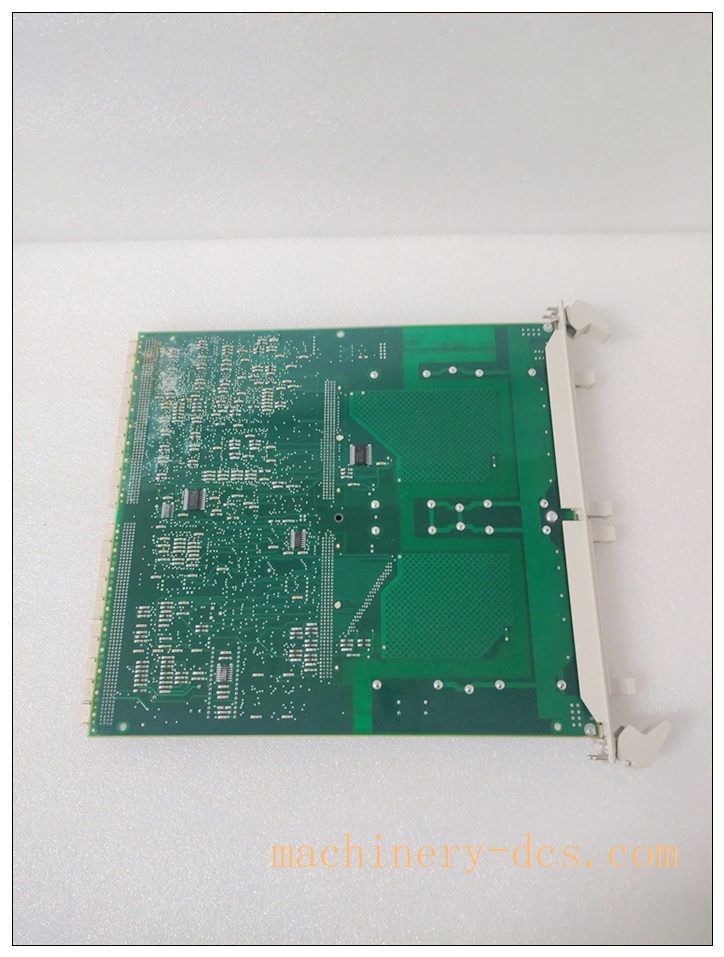

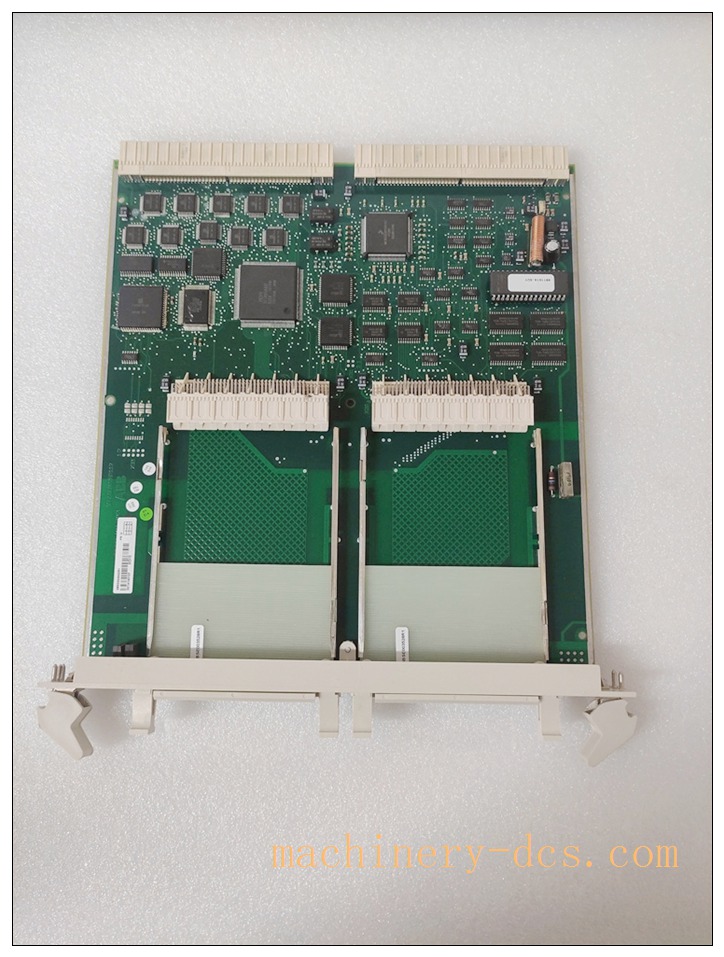

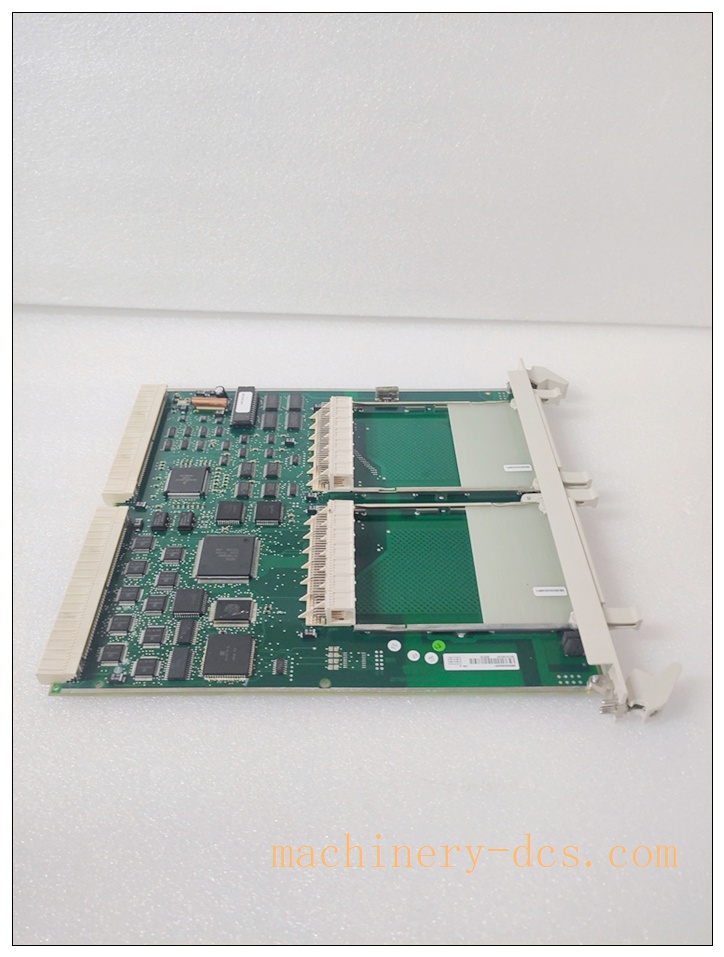

The SC510, part number 3BSE003832R1, is an EOL‑discontinued Eurocard‑format submodule carrier for ABB Advant OCS / MasterPiece DCS platformsABB Group. Unlike SC520 which integrates a local CPU, SC510 has no onboard processor, all data processing relies entirely on the main CPU (DSPC172) via rack backplane bus. It provides two sub‑slot positions for MB300 / MB300E series communication sub‑modules, expanding controller communication interfaces and peripheral access capacity. It supports hot‑swap of sub‑modules without interrupting DCS running logic. Front‑panel LED indicators display power status and fault alarms. It is widely used as spare‑part and retrofit replacement for legacy power‑plant, petrochemical and pulp‑paper Advant OCS control racks.

Applications

‑ Power‑plant boiler‑turbine Advant OCS DCS communication interface expansion ‑ Petrochemical & refinery AC450/AC460 controller peripheral extension ‑ Pulp & paper mill legacy Advant system multi‑protocol communication expansion ‑ Chemical plant continuous‑process DCS cabinet sub‑module carrier application ‑ Metallurgy old‑generation distributed‑control system spare‑part replacement ‑ Water‑wastewater treatment Advant OCS automation retrofitting projects ‑ Fieldbus & third‑party gateway expansion for Advant OCS controllers

ABB SC510 3BSE003832R1

Related Series Models (6+)

1. SC520 (CPU‑equipped submodule carrier)
2. DSPC172
3. DSCL110A
4. CI522A
5. SR511
6. DSBC172
7. DSAX110A

Key Features

1. Submodule carrier without integrated local CPU, processing tasks are completed by main DSPC172 controller.
2. Dual sub‑slot hardware design, compatible with MB300 / MB300E communication sub‑modules for flexible interface expansion.
3. Standard Eurocard plug‑in structure, fits Advant OCS backplane bus seamlessly.
4. Supports hot‑swap for sub‑modules; sub‑module replacement without shutting down DCS control logic.
5. Basic self‑diagnosis function for carrier board and inserted sub‑modules, reports fault information to main CPU.
6. Front‑panel LED indicators for power‑on and fault visual diagnosis for field maintenance.
7. Industrial‑grade hardware, wide operating temperature, adapts to long‑term 24‑7 continuous cabinet‑based operation.
8. Perfect hardware compatibility with AC450 / AC460 controller series for legacy DCS retrofit and spare‑part upgrade.

ABB SC510 3BSE003832R1

Main Functions

1. Provide mechanical mounting and electrical signal interface for MB300 / MB300E communication sub‑modules.
2. Transmit data between plug‑in sub‑modules and main controller via Advant backplane bus, no local data pre‑processing.
3. Detect working status of itself and sub‑modules, forward fault diagnostic messages to host DCS CPU.
4. Support hot‑swap operation for sub‑modules to realize online communication‑interface maintenance.
5. Visualize power‑supply status and fault events via front‑panel LED lamps for on‑site troubleshooting.
6. Expand multi‑protocol communication capacity for Advant OCS controllers, realize connection with third‑party automation devices.
7. Cooperate with DSPC172 main processor to build complete Advant OCS distributed‑control hardware architecture.
8. Serve as passive expansion carrier for AC450/AC460 controller racks in continuous‑process industrial sites.
