ABB PP885R 3BSE069296R1 Panel 800 Rugged 15‑inch Resistive‑Touch Operator HMI Panel



Product Detailed Information

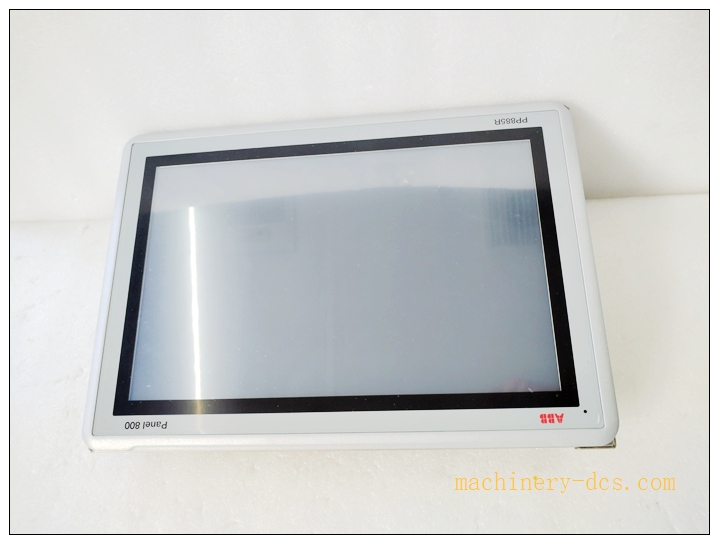

PP885R (3BSE069296R1) belongs to ABB Panel 800 Version 6 rugged operator panel series. It is a front‑panel‑mounted industrial HMI with 15‑inch TFT resistive touch display, designed for harsh cabinet‑mount industrial environments. It executes graphic visualization, process value display, operator command input, alarm handling and data logging, communicates with ABB Freelance, AC 800M controllers and third‑party PLC systems via Ethernet / serial interfaces. The “R” suffix indicates rugged enhanced environmental rating for heavy‑dust, vibration‑prone plant cabinet conditions. Unit is panel‑cutout mounting, front‑face IP65 / NEMA 4X rated, rear‑side IP20 for cabinet‑internal installation. OEM production discontinued; new‑old‑stock, functionally refurbished and field‑pulled spare units are widely used for legacy plant life‑extension maintenance projects.

PP885R 3BSE069296R1

Technical Parameters

Item Specification
Manufacturer ABB
Model PP885R Order code:3BSE069296R1
Product Status OEM Discontinued, spare‑part‑only supply
Display 15‑inch TFT‑LCD; Resolution 1280 × 800; brightness 400 cd/m²; 16:10 aspect ratio
Touch Type Resistive touch screen; supports glove‑operation under industrial site conditions
Front‑face Rating IP65 / NEMA 4X; Rear side IP20
Shock/Vibration Rugged‑R variant for higher vibration resistance; IK07 impact rating

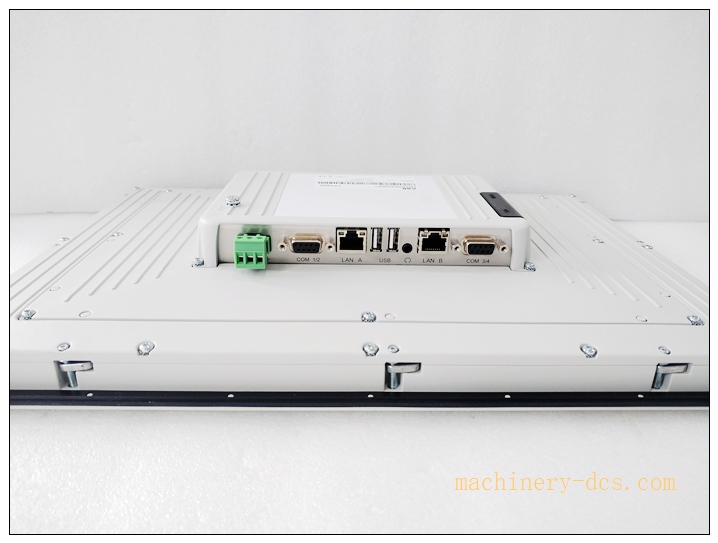

Communication Ports 2× Ethernet RJ45; RS232 / RS485 serial port; USB‑A host; USB‑B programming download port
Power Supply 24 VDC (20.4‑28.8 VDC); typical power consumption 35 W
Mounting Panel cut‑out mounting; tightening screw torque 0.7 Nm ± 0.2 Nmeero
Operating Temperature ‑20 ℃ ~ +60 ℃ (front operating); avoid direct solar radiation onto front panel
Storage Temperature ‑40 ℃ ~ +70 ℃
Humidity 5‑95 % RH non‑condensing

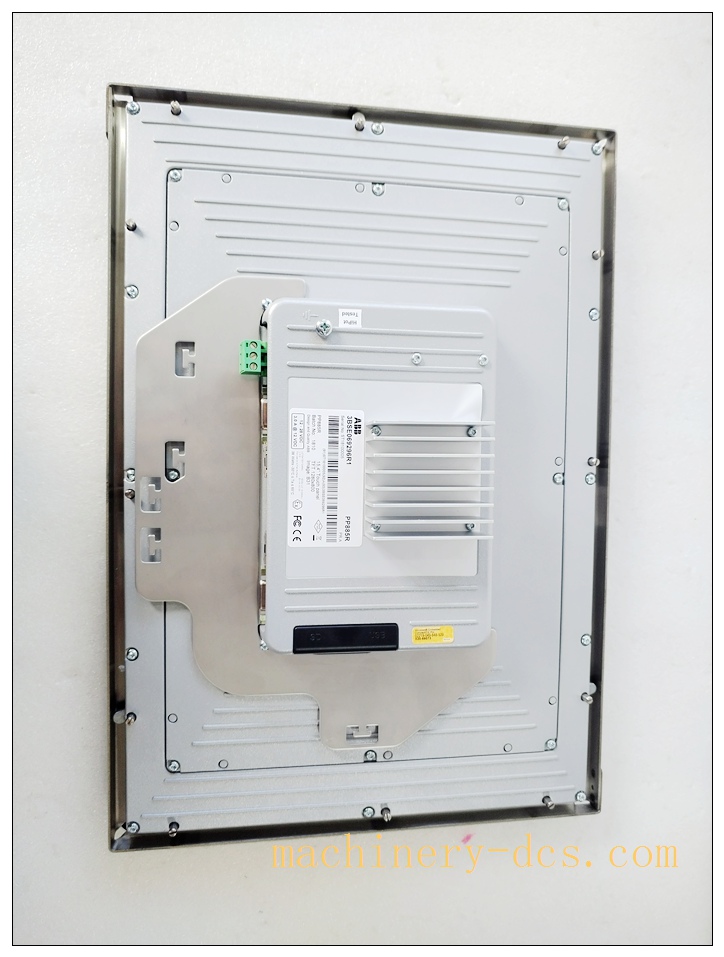

Dimension(W×H×D) 380 mm × 240 mm × 45 mm (front body; rear connector depth extra)
Weight ≈2.8 kg
Certifications CE, UL 61010‑2‑201; DNV marine approval; RoHS complianteero
Configuration Software Panel Builder 800 programming software



Compatibility & Installation Traps

Compatibility

  1. ABB AC 800M, Freelance DCS controller systems; Modbus‑TCP/RTU, OPC‑UA communication with third‑party PLC / DCS
  2. Panel Builder 800 engineering software for project download, firmware upgrade and HMI configuration
  3. Optional accessory RX885 protective touch‑cover for field‑site mechanical protection

Critical note: PP885R‑3BSE069296R1 is rugged‑R variant. Do not confuse with standard PP885 (3BSE069276R1) non‑rugged version; mechanical cut‑out dimension is identical but environmental resistance differs. HMI project firmware version must match panel firmware; version mismatch causes project download failure or runtime communication breakdown.

Installation Pitfalls

  1. Panel‑mount torque & sealing risk: 12 mounting wing‑screws must be tightened to 0.7 Nm ± 0.2 Nm. Under‑torque breaks IP65 front‑face sealing; over‑torque deforms housing and damages touch‑screen substrateeero.
  2. Condensation risk: If unit is transported/stored in cold environment, warm it up to cabinet ambient temperature before power‑on; internal condensation will trigger short‑circuit and permanent hardware damageeero.
  3. Ground‑reference equal‑potential requirement: HMI and connected controller must share same protective‑earth reference potential. Unequal‑potential grounding creates ground‑loop noise and intermittent Ethernet / serial communication dropouteero.
  4. Cable separation rule: Route high‑power AC cables separately from Ethernet and serial signal cables; use shielded industrial Ethernet cables. Mixed‑routing brings heavy EMI interference and unstable field‑bus communication.
  5. Power‑supply polarity protection: 24 VDC reverse polarity will damage internal power‑supply circuit; verify polarity before energization. Use surge‑protected 24 VDC power source for plant cabinet environment.
  6. Rear‑side ventilation clearance: Maintain specified clearance on rear cabinet side for heat dissipation. Blocked rear ventilation leads to over‑temperature, LCD brightness degradation and shortened service life.
  7. ESD vulnerability: USB and serial communication ports are static‑sensitive. Apply ESD wrist‑strap during USB‑project download and rear‑connector maintenance. Invisible ESD damage results in sporadic port failure.
  8. Part‑number identification: Confirm full marking PP885R 3BSE069296R1. Standard PP885 (3BSE069276R1) without “R” suffix cannot substitute for vibration‑heavy site rugged‑R application. After hardware replacement, original HMI project must be re‑downloaded; unit does not store user project inside hardware without backup.



Standard Operating Procedure (SOP)

  1. Pre‑work: Execute plant lock‑out‑tag‑out for HMI operating station. Confirm related control system will run without local operator panel. Wear certified ESD anti‑static wrist strap.
  2. Data backup: Backup complete Panel Builder 800 HMI project source file; record panel firmware revision, Ethernet IP‑address, subnet‑mask, gateway and serial‑communication parameters. Export alarm‑log & recipe data if stored locally inside panel.
  3. Unit removal: Record display status before power‑off. Disconnect 24VDC power supply, Ethernet cables, serial‑cable and USB devices at rear side. Loosen 12 panel‑mount wing‑screws evenly, push unit from cabinet front‑side outward and extract HMI. Inspect cabinet cut‑out gasket sealing groove for dirt, aging or deformation.
  4. Incoming inspection: Visual inspect spare PP885R‑3BSE069296R1 unit for front‑panel scratch, touch‑glass damage, rear‑connector integrity. Verify full part‑number marking and hardware revision; inspect front‑face sealing gasket integrity.
  5. Mechanical mounting: Place new unit into cabinet cut‑out; ensure gasket sits flat without offset. Tighten 12 wing‑screws evenly following torque value 0.7 Nm ± 0.2 Nm to guarantee IP65 front‑face sealing performanceeero.
  6. Cabling: Re‑connect rear‑side 24 VDC power respecting polarity; install Ethernet, serial and USB cables. Apply shield‑ground termination for communication cables. Confirm protective‑earth bonding connection.
  7. Power‑on commissioning: Restore 24 VDC power supply, wait for full boot‑up sequence. Check firmware version; perform firmware upgrade/downgrade to match project requirement if needed. Download backed‑up Panel Builder 800 HMI project to panel. Configure network IP‑address and communication parameters.
  8. Functional validation: Verify touch‑screen response for all graphic objects. Confirm real‑time process‑tag data refresh from connected controller. Trigger alarm‑simulation test to validate alarm‑window pop‑up & acknowledge function. Operate local operator command buttons to confirm signal feedback to DCS/PLC. Verify recipe‑data and historical‑alarm logging function. Confirm no persistent communication‑fault alarms.
  9. Documentation: Fill plant maintenance log, archive HMI project file, firmware‑version, IP‑parameter records. Properly package defective removed HMI unit. Release lock‑out‑tag‑out permit only after full acceptance‑test successfully completed.



Application Scenarios

‑ Thermal‑power plant, process‑industry control‑room cabinet‑mount local operator HMI station ‑ ABB Freelance / AC 800M DCS system human‑machine interface for process monitoring, alarm management and operator set‑point manipulation ‑ Heavy‑vibration industrial cabinet environment (R‑rugged variant advantage) ‑ Legacy ABB Panel 800 platform preventive maintenance & life‑extension retrofit projects

PP885R 3BSE069296R1

Matching & Supporting Components

  1. Panel Builder 800 engineering configuration software
  2. 24 VDC surge‑protected industrial DC power supply
  3. Shielded industrial Ethernet cable; shielded RS485 / RS232 serial communication cable
  4. RX885 protective touch‑cover (optional mechanical protection accessory)
  5. ESD‑shielded anti‑static storage container for spare‑unit storage



Brand‑Related Alternative & Recommended Models

  1. PP885 (3BSE069276R1): Standard non‑rugged version, same mechanical dimension, not suitable for high‑vibration cabinet environment
  2. PP875R: 10‑inch rugged‑series HMI within Panel 800 product family, smaller display size
  3. ABB CP600 / CP800 new‑generation HMI series: For complete system‑migration new‑build projects
