ABB PCD231B High‑Speed Pulse & Communication I/O Module
Product Brand & Model Title
Official Product Name: PCD231B High‑Speed Pulse & Communication I/O Module Brand: ABB Model No: PCD231B Manufacturer Part Number: 3BHE025541R0101 Product Grade: Legacy high‑speed interface module for AC800PEC platform; end‑of‑production, supplied as spare‑part stock for power generation & medium‑voltage drive systems
General Product Overview

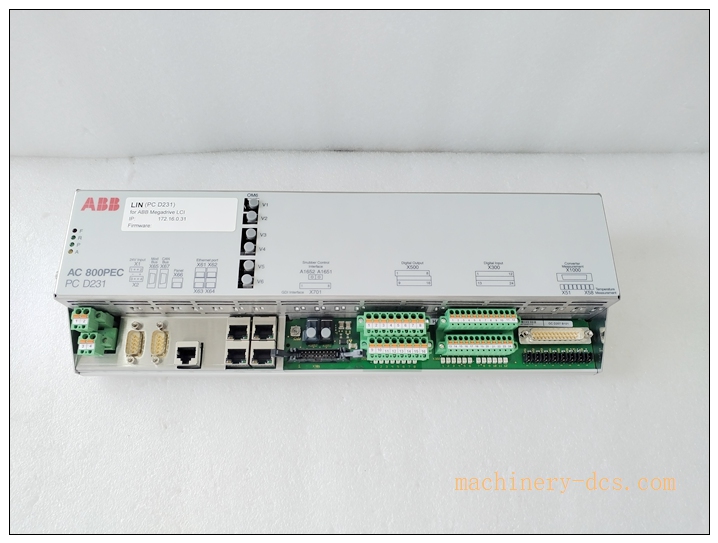

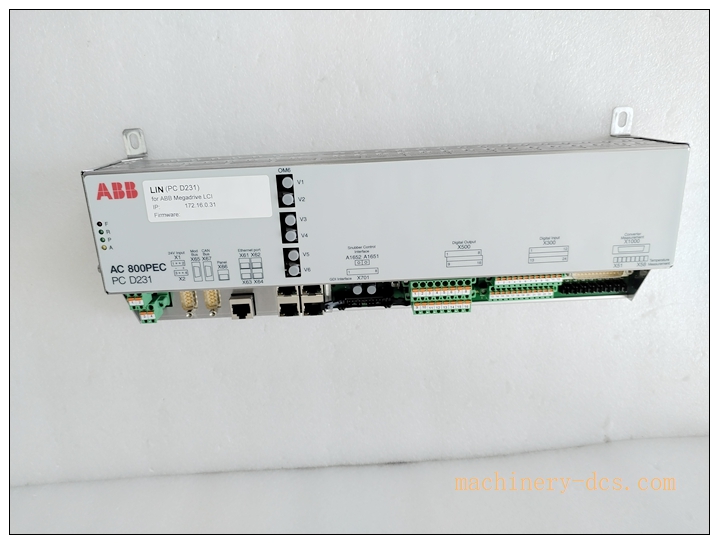

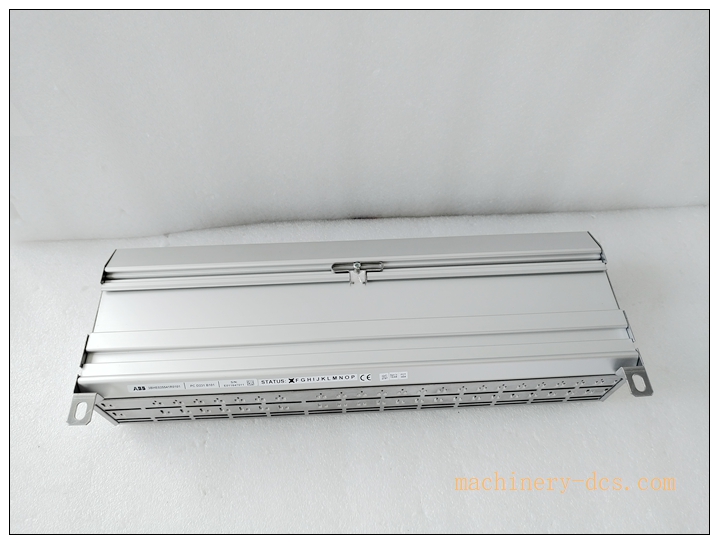

The PCD231B is a high‑speed FPGA‑based pulse processing and communication I/O module for ABB AC 800PEC control platform. It acts as critical signal gateway between main controller unit and power converter hardware. It handles high‑speed pulse signals, encoder feedback, fiber‑optic communication with valve‑base electronics, and digital I/O processing for excitation systems, static frequency converters and medium‑voltage drives. It exchanges real‑time control data with PPD234 main control board via optical fiber, and outputs drive pulses to GDC806 gate drive units. Equipped with multiple status LED indicators for fault diagnosis, it is widely used for generator excitation, ACS6000 medium‑voltage variable‑speed drives and PCS6000 HVDC‑light equipment. Original manufacturing discontinued, mainly used for spare‑part replacement and on‑site retrofit projects.
PCD231B101
Model Coding Definition
- PCD: ABB high‑performance converter / excitation system I/O module series
- 231: Hardware platform identifier for pulse‑processing interface board
- B: Hardware revision variant
Note: Full manufacturing part number: 3BHE025541R0101, suffix R0101 / R0102 indicates different hardware revisions.
Technical Specifications
Electrical Parameters
‑ Power Supply: 24 VDC, powered through rack backplane ‑ Typical Power Consumption: Max 15 W ‑ Fiber‑optic Interfaces: Multi‑channel optical ports for communication with PPD234 controller and GDC806 gate driver boards ‑ Encoder Interfaces: High‑speed incremental encoder input interfaces ‑ Digital I/O: Multi‑channel configurable digital input / output for interlock and status signals ‑ Front‑panel indicators: Multi‑LED for power, run, fiber link status and fault alarm
Signal & Performance
‑ Processing Core: Integrated FPGA for high‑speed real‑time pulse signal processing ‑ Control cycle: Microsecond‑level deterministic signal processing for power converter control ‑ Communication: Proprietary high‑speed optical bus for converter control; ModuleBus internal system bus
Environmental Specifications
‑ Operating Temperature: −25 ℃ ~ +55 ℃ (cabinet installation) ‑ Storage Temperature: −40 ℃ ~ +85 ℃ ‑ Relative Humidity: 5 %‑95 %, non‑condensing ‑ Vibration & Shock: Compliant with IEC 60068‑2 for power‑plant cabinet environment ‑ Ingress Rating: IP20 (cabinet‑mount only)
Mechanical & Certification
‑ Form Factor: Standard rack‑mount plug‑in module for AC800PEC rack ‑ Weight: Approx. 1.1 kg ‑ Certifications: CE compliant for power‑generation and power‑conversion equipment ‑ Lifecycle Status: EOP (End‑of‑Production); spare‑part supply only
PCD231B101
Core Product Features
- High‑speed pulse‑signal processing: FPGA hardware performs real‑time pulse acquisition and generation for power converter control loops.
- Optical‑fiber isolated communication: Fiber interfaces realize galvanic isolation between main controller and high‑power converter sections, suppress high‑voltage interference.
- Encoder signal acquisition: Processes high‑speed position feedback signals from motor/generator encoders.
- Inter‑module high‑speed data exchange: Cooperates with PPD234 main control board and GDC806 gate‑drive units to complete converter pulse‑trigger output.
- Multi‑channel digital I/O: Handles equipment interlock, status feedback and protection‑related digital signals.
- Front‑panel LED diagnosis: Visual status indication for power, communication link and fault conditions for fast on‑site troubleshooting.
- Deterministic real‑time performance: Optimized for power‑electronic control with strict real‑time requirements.
- Rugged cabinet‑grade design: Suitable for power‑plant and heavy‑industry cabinet environments.
Application Fields
‑ Power generation industry: Generator Unitrol excitation system signal‑processing interface ‑ Medium‑voltage drive: ABB ACS6000 series medium‑voltage frequency converter control system ‑ HVDC‑light: PCS6000 power conversion equipment control interface ‑ Static frequency converters: Large‑capacity static frequency converter control ‑ Petrochemical & oil‑gas: Large‑variable‑speed drive equipment for compressors and pumps ‑ Retrofit & maintenance projects: Spare‑part replacement for existing AC800PEC‑based installed‑base systems
Product Advantages & Value
‑ Purpose‑built for ABB AC800PEC power‑control platform, realizes high‑speed isolated signal transmission between controller and power units. ‑ Optical‑fiber isolation effectively resists strong electromagnetic interference in power‑conversion cabinets. ‑ FPGA hardware ensures stable microsecond‑level real‑time processing for power‑electronic control. ‑ Integrated encoder and digital I/O functions reduce requirement for extra auxiliary boards. ‑ Mature field‑proven hardware for large installed‑base of excitation and medium‑voltage drive assets.
Compatible System & Interface Description
‑ Compatible Control Platform: ABB AC800PEC control system ‑ Matched Main Board: PPD234 main processor board ‑ Matched Gate‑Drive Unit: GDC806 gate driver module ‑ Installation: Plug‑in module inside AC800PEC system rack, powered via rack backplane ‑ Configuration Tool: ABB official engineering software for parameter setting, firmware download and fault diagnosis
Related Recommended Products
- PPD234: Main processor board of platform
- GDC806: Gate drive unit matched for PCD231B pulse output
- 3BHE025542R0101: Alternative revision variant of PCD231B
- UFC721: System power‑supply unit for rack
- : Hardware carrier for and related modules
- PCD232B: Extended I/O module for system
