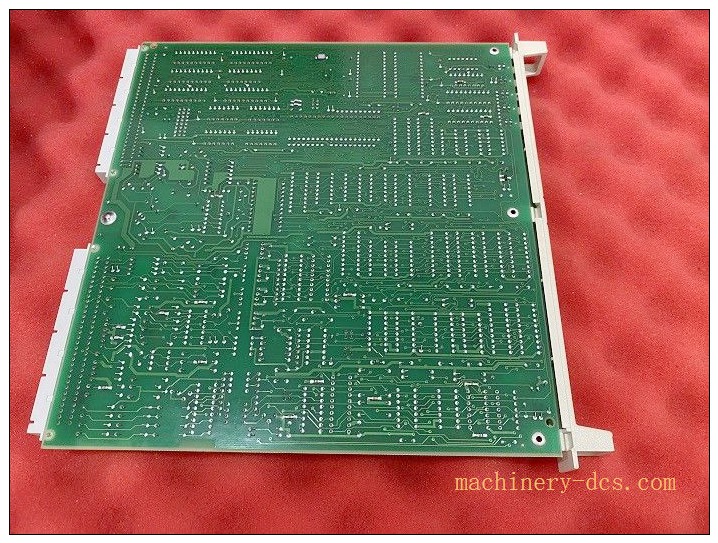

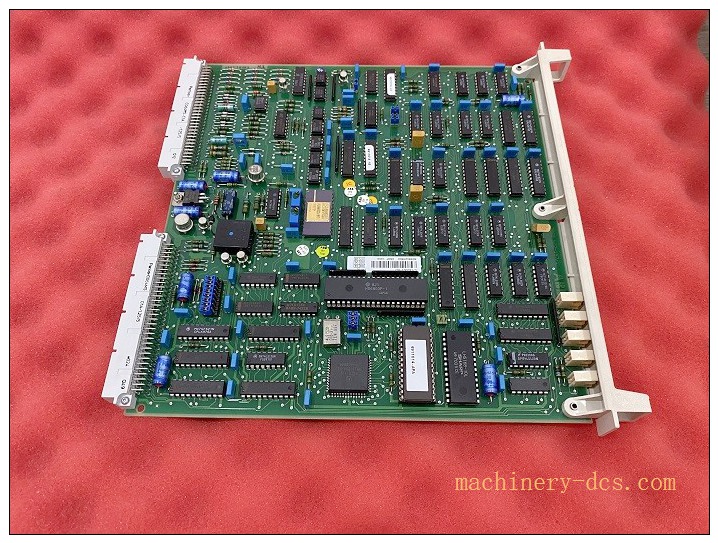

ABB DSDP150 (57160001‑GF) Pulse Encoder Input Unit for Advant OCS / MasterPiece DCS System

Description

ABB DSDP150 (57160001‑GF) Pulse Encoder Input Unit for Advant OCS / MasterPiece DCS System

Product Details

The DSDP150, part number 57160001‑GF, is a dedicated pulse‑encoder input module for legacy ABB Advant OCS and MasterPiece distributed control systems. It accepts 12 VDC incremental encoder A/B/Z pulse signals, supports pulse counting, frequency‑rate calculation, speed and position measurement with maximum input frequency up to 10 kHz. This Eurocard‑format rack‑mount card plugs into the Advant backplane bus, transmitting processed speed‑position measurement data to main CPU such as DSPC172. It provides onboard hardware signal conditioning and channel diagnosis, front‑panel LED indicators show channel activity and fault conditions. Hot‑swap supported for online maintenance. This EOL‑discontinued module is widely used as spare‑part and retrofit component for pulp‑paper, power‑plant and metallurgy DCS racks requiring high‑precision motion‑related measurement.

Applications

‑ Pulp & paper mill line speed, length‑calculation and tension‑control measurement ‑ Power plant rotating‑equipment tachometer pulse‑signal acquisition ‑ Metallurgy production line conveyor speed and position monitoring ‑ Chemical plant flow‑meter pulse‑input totalizing calculation ‑ Material‑handling conveyor, elevator and lifting‑equipment position feedback ‑ Retrofit & spare‑part replacement for Advant OCS / MasterPiece DCS installations ‑ Industrial sites requiring frequency, pulse‑count and incremental encoder signal processing

DSDP150

Related Series Models (6+)

1. DSPC172
2. DSCL110A
3. SC520
4. SR511
5. DSBC172
6. DSAX110A
7. DSDX110A

Key Features

1. Specialized pulse‑encoder input unit for Advant OCS / MasterPiece DCS, supports A/B/Z incremental encoder signals, max 10 kHz input frequencyABB DCS HE….
2. Precise pulse‑counting, frequency‑measurement, speed‑and‑position calculation functions for motion‑related process parameters.
3. 12 VDC encoder power supply output for field pulse‑generating sensors and encoders.
4. Standard Eurocard plug‑in rack‑mount structure, fits Advant backplane bus, supports hot‑swap online replacement without system shutdown.
5. Built‑in channel‑level self‑diagnosis, detects signal loss and short‑circuit faults, reports diagnostics to host controller.
6. Front‑panel multi‑LED status indicators for visual diagnosis of channel working state and fault events.
7. High noise‑immunity hardware design, adapts to electromagnetic‑interference heavy industrial cabinet environment.
8. Perfect compatibility with DSPC172 and other Advant series main processors for process‑industry measurement‑control architecture.

DSDP150

Main Functions

1. Receive incremental encoder A/B/Z pulse signals from field tachometers, encoders and pulse‑output flow meters.
2. Execute high‑speed pulse counting, frequency computation, calculate equipment running speed and displacement position values.
3. Provide 12 VDC power supply for field pulse‑type sensors and encoders.
4. Condition raw pulse signals and transfer processed measurement data to Advant main CPU via system backplane bus.
5. Continuously monitor input‑channel status, detect signal‑loss and short‑circuit faults, send fault diagnostic messages to DCS host.
6. Visualize channel operating status and fault alarms through front‑panel LED indicators for on‑site maintenance personnel.
7. Support hot‑swap maintenance, module replacement without interrupting DCS running control logic.
8. Cooperate with Advant OCS controllers to complete speed‑monitoring, length‑calculation and motion‑related closed‑loop process control tasks.
