ABB CI522A (3BSE018283R1) AF100 Fieldbus Communication Interface Module for Advant OCS / AC450 Controller System

Description

ABB CI522A (3BSE018283R1) AF100 Fieldbus Communication Interface Module for Advant OCS / AC450 Controller System

Product Details

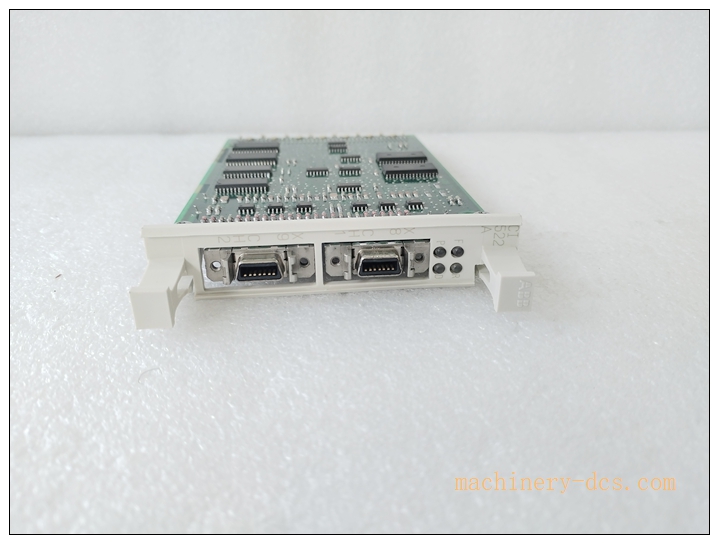

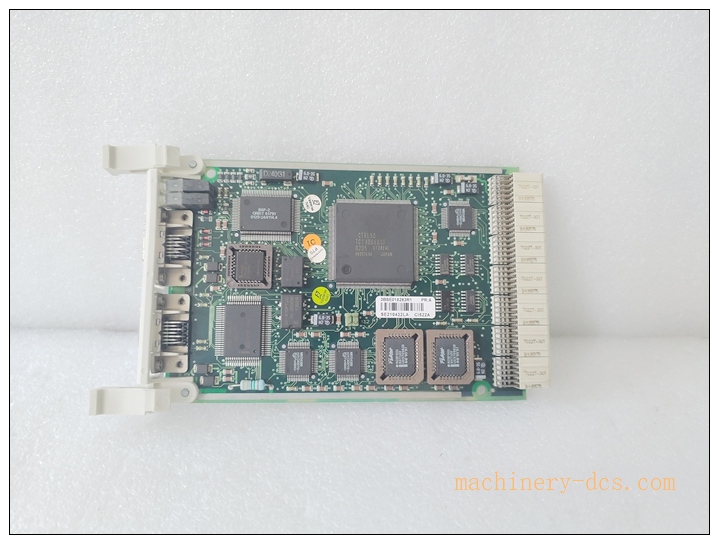

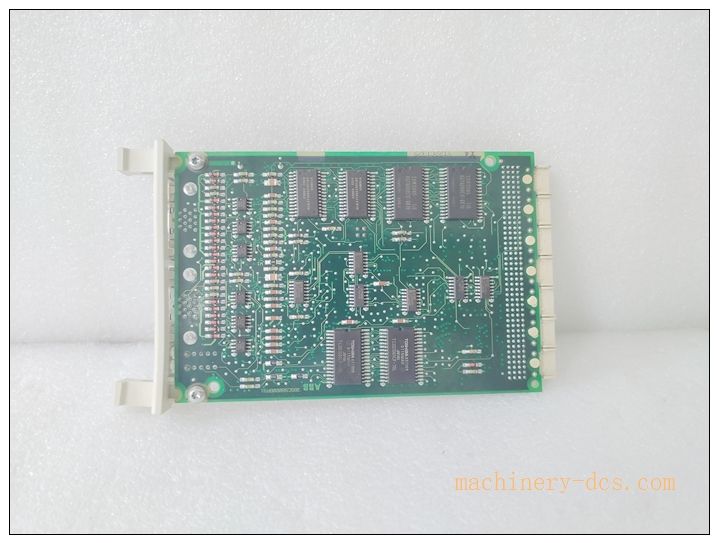

The CI522A, part number 3BSE018283R1, is an AF100 (Advant Fieldbus 100) fieldbus interface module for ABB Advant OCS and AC450 / AC460 controller platforms. It realizes high‑speed data exchange between AC450 controller and distributed S800 I/O stations via AF100 fieldbus, with 1 Mbps nominal transmission rate. This Eurocard‑format plug‑in module connects to the controller backplane bus, supporting dual‑channel redundant AF100 bus configuration to improve communication reliability. It processes signal encoding/decoding between controller internal bus and AF100 fieldbus, handles I/O data mapping and channel diagnosis. Hot‑swap function supports online module replacement without interrupting running control logic. Front‑panel LED indicators display power, RUN, bus‑link and fault status. This is an EOL‑discontinued legacy hardware, widely used as spare‑part and retrofit replacement for power, petrochemical, pulp‑paper Advant OCS DCS rackseero.

Applications

‑ Power plant boiler‑turbine Advant OCS DCS distributed I/O communication ‑ Petrochemical and refinery process‑control AF100 fieldbus network ‑ Pulp & paper mill AC450 controller connecting remote S800 I/O stations ‑ Chemical plant continuous‑process automation distributed signal acquisition ‑ Metallurgy large‑scale DCS fieldbus‑based I/O expansion ‑ Water‑wastewater treatment Advant OCS automation retrofitting projects ‑ Spare‑part replacement for legacy ABB AC450 / AC460 control cabinets

CI522A

Related Series Models (6+)

1. CI521A
2. CI534V02
3. DSPC172
4. DSCL110A
5. SC520
6. SR511
7. DSBC172

Key Features

1. Dedicated fieldbus interface module for Advant OCS AC450/AC460 controllers, 1 Mbps communication rate for distributed S800 I/O stations.
2. Supports dual‑channel bus redundancy, realizes communication link backup to avoid single‑point bus failure downtime.
3. Standard Eurocard rack‑mount structure, seamlessly inserts into Advant controller backplane bus, supports hot‑swap online maintenance.
4. Built‑in comprehensive self‑diagnosis function, monitors bus communication quality and module internal hardware status.
5. Multiple front‑panel LED status indicators for power‑on, running state, bus link activity and fault visual diagnosis.
6. Realizes bidirectional data mapping between controller backplane and fieldbus, completes I/O signal encoding and decoding processing.
7. Excellent anti‑interference performance, adapts to long‑term 24‑7 continuous‑operation in heavy‑EMI industrial cabinet environment.
8. Perfect compatibility with DSPC172 CPU and S800 series distributed I/O modules for Advant OCS DCS architecture.

CI522A

Main Functions

1. Serve as communication bridge between /AC460 main controller and distributed S800 I/O stations over fieldbus.
2. Encode and decode control data, transmit controller output commands to field I/O modules, upload field measurement signals back to main CPU.
3. Support dual‑channel redundant bus operation, automatically switch to backup channel upon primary bus link failure.
4. Continuously monitor bus quality and module hardware health, report communication faults and diagnostic information to host controller.
5. Visualize module power, running, bus‑link and fault conditions via front‑panel LED lamps for on‑site troubleshooting.
6. Support hot‑swap maintenance; module replacement can be completed without stopping DCS control logic execution.
7. Manage data transmission timing and signal mapping for multi‑node S800 I/O clusters on network.
8. Cooperate with DSPC172 and other Advant series hardware to build complete distributed DCS control system.
