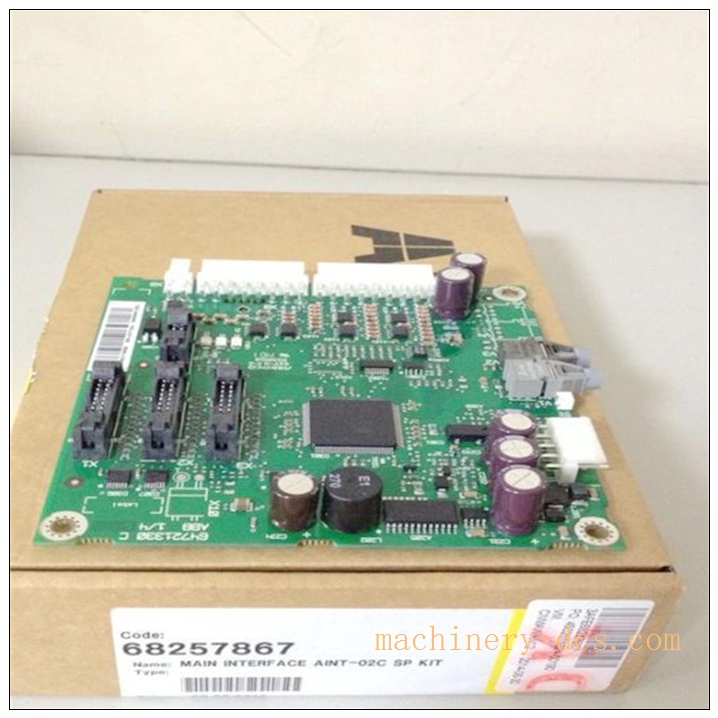

ABB AINT-02C (68257867) ACS800 Main Circuit Interface Board

Description

ABB AINT-02C (68257867) ACS800 Main Circuit Interface Board

Product Description

The AINT-02C (order code 68257867, replaces old part 64802909) is the main circuit interface PCB for ABB ACS800 series variable frequency drives. It serves as the critical signal bridge between the ACS800 control unit and power section. The board collects voltage, current, temperature and status feedback signals from the power stack, transfers high-speed pulse-width modulation (PWM) drive commands from the control board to IGBT power modules, and implements hardware overcurrent, overvoltage and overtemperature protection logic. The conformal coated version is available for harsh industrial environments. It handles fault detection, trip signal generation and drive status feedback, and is a commonly used spare replacement board for ACS800 single drive modules.

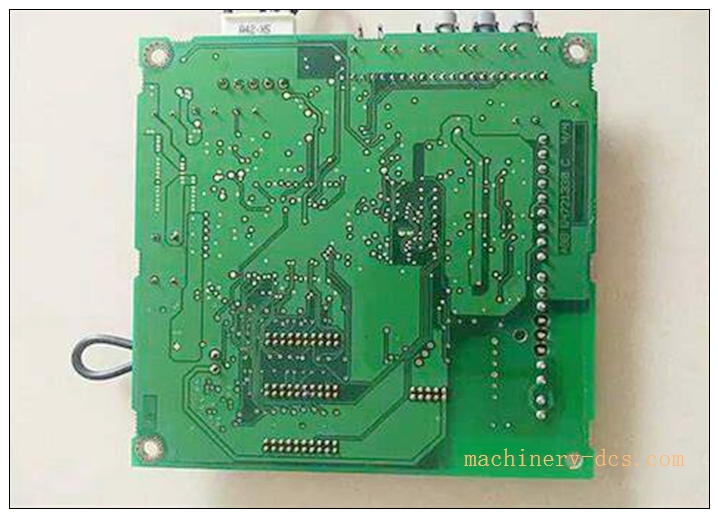

AINT-02C

Technical Specifications

• Part Number: AINT-02C, 68257867
• Manufacturer: ABB
• Series: ACS800 Low Voltage AC Drives
• Device Type: Main Circuit Interface Board
• Function: PWM signal transmission, power circuit feedback sampling, hardware protection
• Compatibility: ACS800-04 single drive module series
• PCB Coating: Conformal coating option available
• Operating Temperature: -20°C ~ +70°C
• Storage Temperature: -40°C ~ +85°C
• Relative Humidity: 5%~95%, non-condensing
• Protection Class: IP20 (installed inside drive cabinet)
• Weight: Approx. 0.10 kg
• Origin: Sweden / Estonia
• Certifications: CE, UL

Key Features

1. Main interface board linking control board and power IGBT section
2. High-speed PWM signal transfer and multi-point power circuit sampling
3. Hardware-level overcurrent, overvoltage and overtemperature protection
4. Conformal coated PCB variant for corrosive, dusty plant environments
5. Real-time power unit fault detection and trip signal generation
6. Multi-channel analog & digital feedback to drive control logic
7. Compact plug-in PCB design for fast on-site spare replacement
8. Supports drive fault diagnosis for power section failure root analysis

Application Scenarios

• Petrochemical large fan, pump and compressor drive systems
• Power plant auxiliary motor variable speed control
• Pulp & paper mill main drive and auxiliary speed regulation
• Metallurgy rolling mill and conveyor heavy-duty drives
• Cement plant kiln, exhaust fan and raw material mill drives
• Water treatment large pump variable frequency control
• Mining heavy-duty motor speed regulation
• HVAC large fan energy-saving variable speed drives

Matching / Auxiliary Components

• control board RMIO-01C / RMIO-11C
• power unit (IGBT modules, rectifier bridge)
• drive power supply board APOW
• Fibre optic cables for PWM signal transmission
• Gate driver boards for IGBT
• ABB DriveWindow diagnostic software
• cooling fan assembly
• Terminal connectors and wiring harness

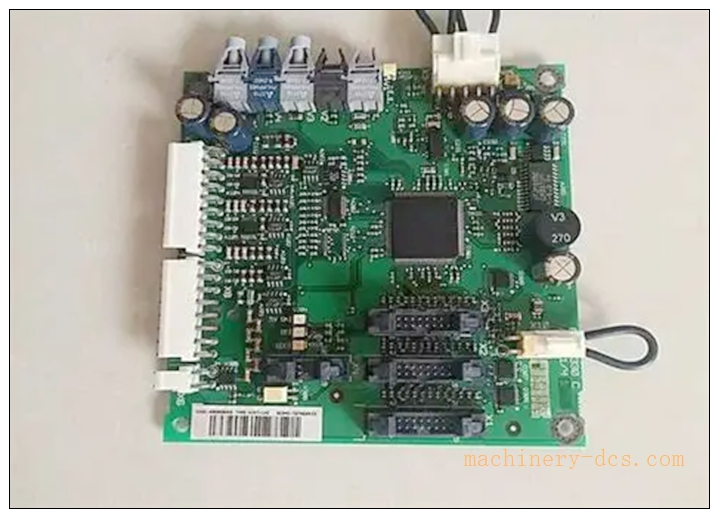

AINT-02C
