Woodward 8440-2050 (EasyGen-3200-5) – Advanced Digital Genset Controller for Multi-Unit Power Generation Systems

Description

Woodward 8440-2050 (EasyGen-3200-5) – Advanced Digital Genset Controller for Multi-Unit Power Generation Systems

Executive Summary
The Woodward 8440-2050 is a high-performance digital controller belonging to the EasyGen-3200-5 series, specifically engineered for the control, protection, and monitoring of generator sets in single and multi-unit power generation systems. Designed to ensure reliable and efficient power management, this controller supports complex applications including peak shaving, load sharing, and grid-parallel operations. With robust communication capabilities and a user-friendly interface, the 8440-2050 is a critical component for modernizing and optimizing industrial and commercial power generation infrastructure.

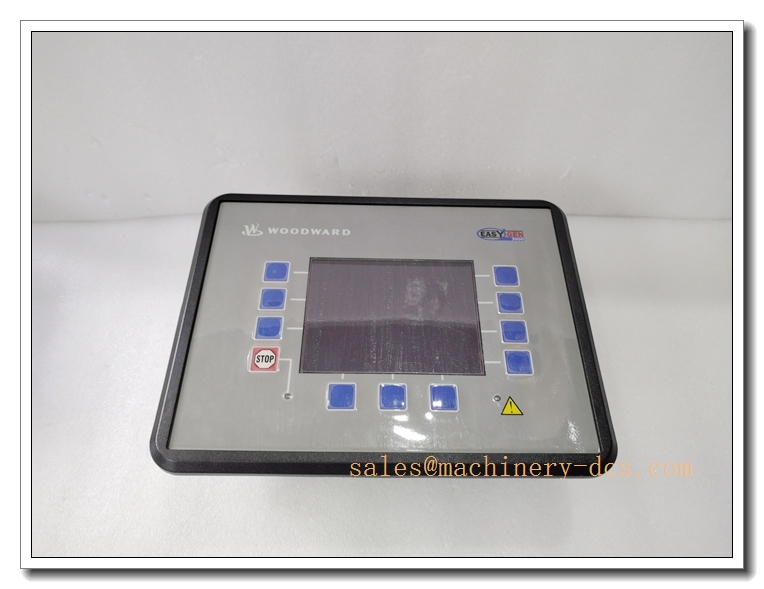

WOODWARD 8440-2050

Core Technical Specifications

• Manufacturer: Woodward (Woodward, Inc.)
• Part Number: 8440-2050
• Product Series: EasyGen-3200-5
• Module Type: Digital Genset Controller / Control Module
• Country of Origin: USA
• Processor Speed: 50 MHz
• Memory Capacity: 53 MB (Program and Data)
• Operating Voltage: 220V AC (50/60 Hz) / 24V DC variants available depending on sub-model
• Display Interface: 2-line text display (24 characters per line) with menu-driven software
• Communication Interfaces: RS-232, RS-485, Ethernet (supports Modbus TCP/IP, Modbus RTU, and other industrial protocols)
• I/O Configuration: Configurable digital and analog inputs/outputs for sensor integration and actuator control
• Operating Temperature: -10°C to 60°C (14°F to 140°F)
• Humidity Tolerance: Up to 95% non-condensing
• Protection Rating: IP56 (front panel), suitable for harsh industrial environments
• Certifications: CE, UL listed; compliant with marine and industrial standards
• Mounting: Panel mount or rack mount (control room installation)
• Weight: Approximately 6.5 kg (14.3 lbs)

Key Features and Advantages

• Multi-Unit Load Sharing: Supports sophisticated load sharing algorithms, enabling seamless synchronization and power distribution across multiple generator sets in parallel operation.
• Flexible Control Modes: Offers multiple operational modes including island mode, grid-parallel mode, peak shaving, and base load operation, adaptable to diverse energy management strategies.
• Comprehensive Protection Suite: Integrated protection functions cover over/under voltage, over/under frequency, reverse power, overcurrent, and engine-specific faults (oil pressure, coolant temperature), ensuring asset safety.
• Advanced Communication Integration: Native support for Modbus, Ethernet, and serial communication allows easy integration into SCADA, DCS, and PLC-based monitoring systems for remote supervision and data logging.
• User-Friendly Configuration: Menu-driven software with a clear text display simplifies setup, commissioning, and troubleshooting, reducing engineering time.
• Dual-Mode Operation: Features both Programming Mode for internal configuration and Run Mode for autonomous automatic control, enhancing operational flexibility.
• Rugged Industrial Design: Built to withstand vibration, shock, and extreme temperatures, making it suitable for marine, offshore, and heavy industrial applications.

Application Scenarios

• Industrial Power Plants: Control and synchronization of diesel or gas generator sets in cogeneration and combined heat and power (CHP) facilities.
• Commercial Backup Power: Management of standby generator systems for hospitals, data centers, and large commercial buildings requiring uninterrupted power supply.
• Marine & Offshore Platforms: Reliable genset control for ship propulsion auxiliary power and offshore oil & gas platform power management systems.
• Renewable Energy Hybrid Systems: Integration of diesel gensets with solar or wind power sources in microgrid applications for stable hybrid power delivery.
• Oil & Gas Facilities: Control of turbine-driven or reciprocating engine generators in upstream and midstream processing plants.
• Mining Operations: Power management for remote mining sites where multiple generator sets operate in parallel to meet fluctuating load demands.

WOODWARD 8440-2050

Related Product Recommendations
For comprehensive system integration and maintenance, consider the following compatible Woodward components and alternatives:

1. Woodward EasyGen-3200-5 (8440-2052 series): Variant models with different I/O configurations for tailored application needs.
2. Woodward EasyGen-3500XT (8440-2085): Next-generation controller with enhanced features for advanced genset management.
3. Woodward EasyGen-2500-5 (8440-1884): Cost-effective controller for smaller or simpler generator set applications.
4. Woodward ProTech 203 (8440-series): Overspeed protection system for turbine and engine safety.
5. Woodward 2301A Digital Load Share & Speed Control Module: Dedicated module for load sharing and speed control in multi-unit systems.
6. Woodward GCP-20 / GCP-30 Generator Control Packages: Alternative controller series for specific OEM generator applications.
7. Woodward EG-3P Electro-Hydraulic Actuator: Compatible actuator for precise valve and fuel rack control in turbine applications.
8. Woodward Flex500 Control System: Scalable control platform for complex multi-engine and turbine installations.

Frequently Asked Questions (FAQ)

• Q: What is the difference between the EasyGen-3200-5 and EasyGen-3500XT?
  A: The EasyGen-3500XT is a newer generation controller with enhanced processing power, expanded I/O capacity, and support for more advanced communication protocols. The EasyGen-3200-5 (8440-2050) remains a reliable choice for standard multi-unit genset applications.
• Q: Can the 8440-2050 operate in grid-parallel mode?
  A: Yes. The EasyGen-3200-5 supports grid-parallel operation, including synchronization, load sharing, and power factor control when connected to the utility grid or other power sources.
• Q: What communication protocols are supported?
  A: The controller supports Modbus TCP/IP, Modbus RTU, and serial communication (RS-232/RS-485). Ethernet connectivity enables integration into modern SCADA and remote monitoring systems.
• Q: Is the 8440-2050 suitable for marine applications?
  A: Yes. The controller meets marine certification standards (including DNV, LR, and others depending on configuration) and is designed to withstand the vibration, humidity, and temperature extremes typical of marine and offshore environments.
• Q: How is the controller configured?
  A: Configuration is performed via the front-panel menu-driven interface or through Woodward’s configuration software via the communication ports. Parameters include engine settings, protection thresholds, load sharing parameters, and communication addresses.
• Q: What is the typical lead time for this product?
  A: Availability varies by region and distributor. The 8440-2050 is widely available through authorized Woodward distributors and specialized industrial automation spare parts suppliers. Lead times typically range from immediate stock to 4–6 weeks depending on demand.
