VIBRO‑METER GSI122 Galvanic Separation Unit (Part‑No:244‑122‑00‑204)

Description

VIBRO‑METER GSI122 Galvanic Separation Unit (Part‑No:244‑122‑00‑204)

Product Detailed Description

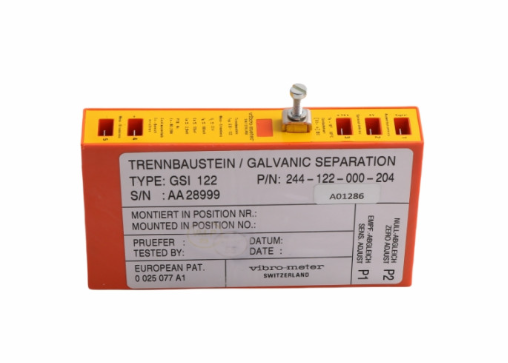

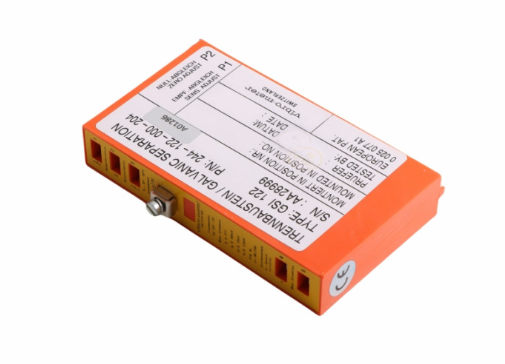

GSI122 is a compact potted galvanic isolation module manufactured by Vibro‑Meter (now part of Meggitt). It delivers high‑voltage galvanic isolation for vibration and position sensor signals in turbomachinery monitoring systems. The unit breaks ground‑loop interference between field proximity probes / velocity sensors and rack‑based monitoring electronics, preserves wide‑band AC‑DC signal transmission for shaft vibration, displacement and thrust position measurement. Factory calibration sets transfer gain at 1 V/mA. OEM production is discontinued; available stock includes new‑old‑stock, refurbished and pull‑out spare units for turbine‑plant maintenance and life‑extension retrofits.

GSI122

Technical Parameters

Compatibility & Installation Pitfalls

Compatibility

1. Vibro‑Meter VM600, VM400 series turbomachinery monitoring racks
2. Proximity probes, eddy‑current sensors for shaft vibration / thrust measurement
3. Works with VIBRO‑METER processor cards such as UVC series

Important note: GSI122 is a signal‑conditioning accessory, cannot operate standalone. It must be matched to original system sensor type and monitoring card configuration.

Installation Pitfalls

1. Ground‑loop mis‑wiring: Do not parallel‑connect multiple GSI122 outputs onto same monitoring channel; wrong wiring defeats isolation function and re‑introduces ground‑loop noise.
2. Power supply ripple: 24 VDC supply ripple higher than 100 mVpp will inject noise into vibration signal and cause false vibration alarms; use clean regulated DC power source.
3. Potentiometer tampering: Onboard P1 gain potentiometer is factory‑calibrated. Random field adjustment will shift measurement scale and produce wrong vibration readings.
4. ESD risk: Terminal inputs are sensitive to electrostatic discharge. ESD protection must be applied during wiring and replacement.
5. Signal bandwidth limitation: Do not use for high‑frequency vibration above 10 kHz; signal amplitude will be attenuated.
6. Part‑number confusion: Cross‑verify full part number 244‑122‑00‑204 on housing label; similar‑looking isolation modules are not drop‑in equivalents.
7. Intrinsic‑safety rules: For hazardous‑area sensor loops, strictly follow Ex‑installation requirements; wrong wiring voids intrinsic‑safety certification.

Standard Operating Procedure (SOP)

1. Pre‑work: Apply lock‑out‑tag‑out permit for turbomachinery monitoring system, cut 24 VDC auxiliary power. Wear ESD anti‑static wrist strap.
2. Documentation: Record existing monitoring channel parameters, sensor scale and original GSI122 potentiometer position reference.
3. Removal: Disconnect field sensor wiring and monitoring‑side wiring terminal‑by‑terminal, label each cable. Remove old unit from mounting position.
4. Incoming inspection: Check new spare unit housing for crack, seal damage, verify full part‑number marking.
5. Mechanical mounting: Secure onto DIN‑rail or panel mount, keep adequate clearance for heat dissipation.
6. Wiring: Reconnect field sensor side and monitor side strictly according to original wiring diagram. Double‑check terminal assignment, avoid cross‑channel mis‑connection.
7. Power‑on commissioning: Restore 24 VDC power. Inject reference calibration signal to verify channel gain and output level; do not adjust P1 potentiometer unless re‑calibration is formally required.
8. Functional validation: Start machine monitoring system, check vibration / displacement raw values, confirm no abnormal noise or drift. Perform sensor bump‑test to validate full signal path.
9. Documentation: Log installation record, keep original potentiometer setting record. Store removed defective unit properly.

Application Scenarios

‑ Thermal & combined‑cycle power‑plant steam turbine / gas‑turbine supervisory instrumentation ‑ Hydro‑power turbine shaft vibration and thrust‑position monitoring ‑ Petro‑chemical compressor, expander turbomachinery protection systems ‑ Long‑distance eddy‑current probe signal transmission, ground‑loop noise suppression ‑ Legacy Vibro‑Meter VM400 / VM600 system overhaul & spare‑part replacement ‑ Hazardous‑area intrinsic‑safe vibration‑signal isolation for oil‑gas rotating equipment

Matching & Supporting Components

1. Eddy‑current proximity probe & extension cable assembly
2. VM600 / VM400 monitoring rack and measurement processor cards
3. Regulated clean 24 VDC power supply with low ripple
4. DIN‑rail mounting accessories
5. Ex‑certified field cable for hazardous‑area installation
6. Signal calibration tool for vibration‑channel loop validation
