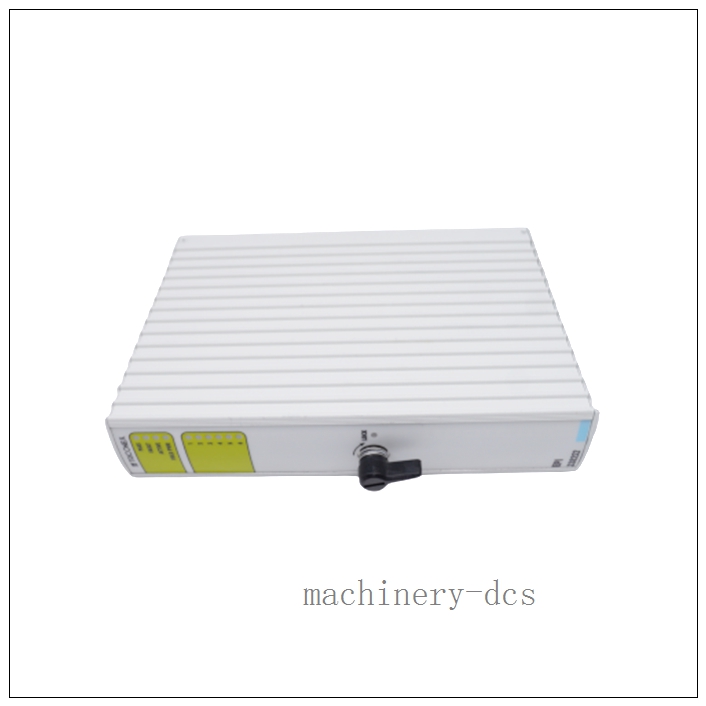

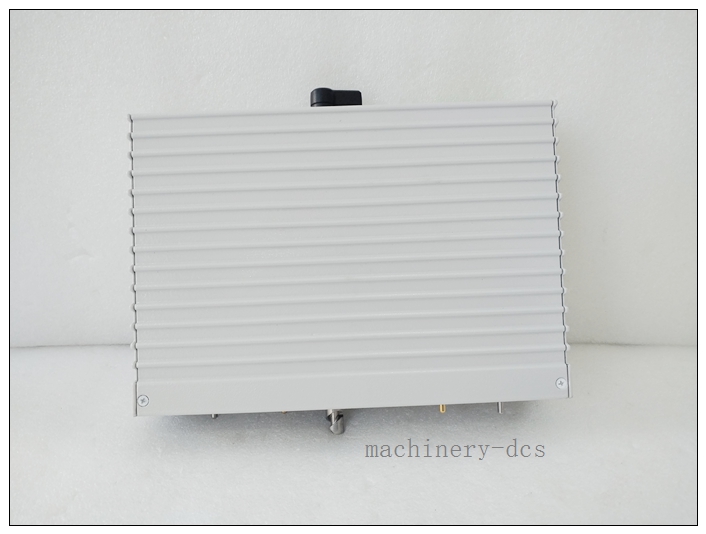

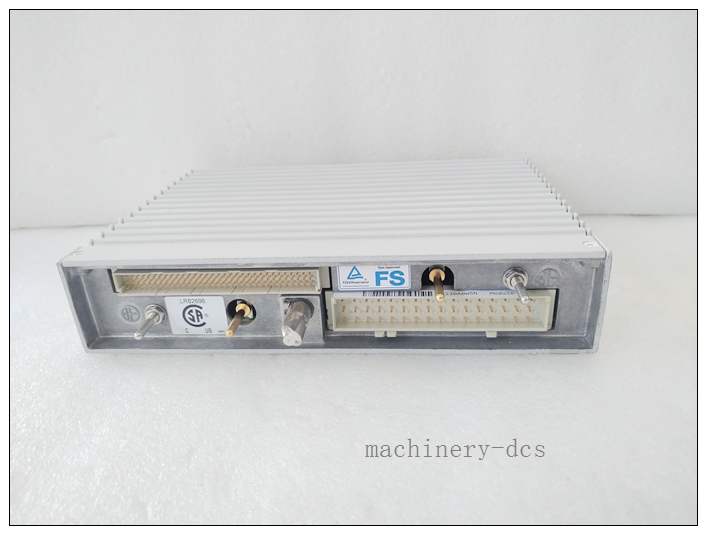

TRICONEX 5382-1S2 safety instrumented system (SIS) analog output module
Product Core Introduction
TRICONEX 5382-1S2 is a safety instrumented system (SIS) analog output module belonging to the Invensys Triconex 5300 series, designed for critical industrial safety and control scenarios. It features high signal transmission accuracy, strong isolation performance, and native triple modular redundant (TMR) architecture, which can effectively prevent single-point failures and ensure stable and reliable output of control signals in harsh industrial environments. It is widely used in high-risk industrial facilities such as steel plants, thermal power plants, tire manufacturing plants and water treatment plants.
TRICONEX 3382S2
Main Technical Specifications
- Brand & Series: Invensys TRICONEX, Triconex 5300 series
- Product Type: Analog output module
- Number of Channels: Configurable 4 or 8 output channels based on actual usage requirements
- Supported Output Signals: 4-20mA, 0-10V, 0-20mA standard industrial analog signals
- Output Impedance: 100Ω, ensuring stable and accurate signal transmission
- Output Accuracy: Up to 0.1%, meeting high-precision industrial control requirements
- Isolation Performance: Up to 2500Vrms isolation capability, effectively suppressing common-mode interference
- Warranty Period: 12-month official warranty for brand new original units
Recommended Same-Series Models
- TRICONEX 5382-1S1: Earlier generation analog output module, fully backward compatible with legacy Tricon chassis, suitable for existing system spare part replacement and maintenance
- TRICONEX 3721: TMR high-precision analog output module, with higher signal accuracy and stronger load driving capability for metering-grade control scenarios
- TRICONEX 5482-1S2: Enhanced multi-channel analog output module, supporting up to 16 output channels for large-scale distributed control systems
- TRICONEX 5351S2: Tricon series analog input module, paired with 5382-1S2 to complete full analog signal acquisition and closed-loop control workflow
New Module Installation Guide
- Power off the target Tricon SIS chassis, confirm all connected field actuators and safety loops are placed in locked bypass state to prevent unintended action during installation
- Align the module with the designated slot of Tricon chassis, push it firmly until fully seated to ensure reliable electrical connection with the system backplane
- Terminate all analog output field wiring strictly following TRICONEX official technical drawings, torque all terminals to specified standard value, and confirm no short circuit between channels
- Restore chassis power, observe front-panel status LEDs to confirm the module is recognized by the system and enters normal running state
- Complete system configuration synchronization via Tricon dedicated programming software, perform full loop test to verify all output channels output signals within specified accuracy range, then remove safety bypasses and return the system to normal online operation.
Application Scenarios and Features
This module is widely deployed in oil & gas, chemical, thermal power, metallurgy and other high-risk industrial safety instrumented systems. Its core features include native TMR triple modular redundant architecture to eliminate single point of failure, multi-standard analog signal output compatibility to adapt to diverse field actuator requirements, 2500Vrms high isolation performance to resist strong industrial electromagnetic interference, and 0.1% high output accuracy to ensure control loop precision. It helps end users meet strict IEC 61508 safety standards, reduce unplanned safety shutdown risk, and ensure continuous stable operation of critical industrial production processes.
TRICONEX 3382S2
Frequently Asked Questions
- Q: How many output channels does TRICONEX 5382-1S2 support?
A: It can be configured with 4 or 8 output channels according to actual usage requirements. - Q: What standard analog signals can this module output?
A: It supports 4-20mA, 0-10V and 0-20mA industrial standard analog signals. - Q: What is the maximum isolation voltage of this module?
A: It provides up to 2500Vrms isolation capability to effectively suppress common-mode interference. - Q: What is the warranty period for a brand new original unit?
