TRICONEX 3700A TMR SIL 3 32-Channel Analog Input Module

Description

Brand‌: TRICONEX (Schneider Electric Safety Automation)
‌Model‌: 3700A
‌Official Full Title‌: TRICONEX 3700A TMR SIL 3 32-Channel Analog Input Module for Tricon Safety Instrumented Systems

Product Description

The TRICONEX 3700A is a high-integrity Triple Modular Redundant (TMR) analog input module purpose-built for TRICONEX Tricon SIL 3 safety instrumented systems. Designed to convert real-time field sensor signals (temperature, pressure, flow, level) into accurate, fault-vetted digital data, it leverages a patented median-voting algorithm to eliminate single-point data corruption, ensuring 100% data integrity even in industrial environments with extreme electromagnetic interference. As a core signal acquisition component for critical safety loops, it supports seamless hot-swappable operation and native integration with Tricon CX and Tricon EX platforms, making it a staple for ESD, F&G and process safety applications across oil & gas, chemical and power generation industries.

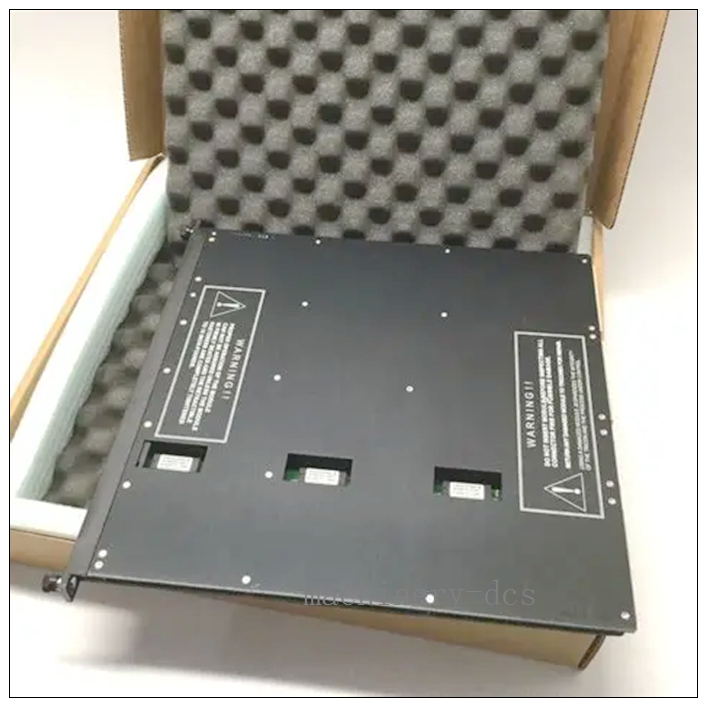

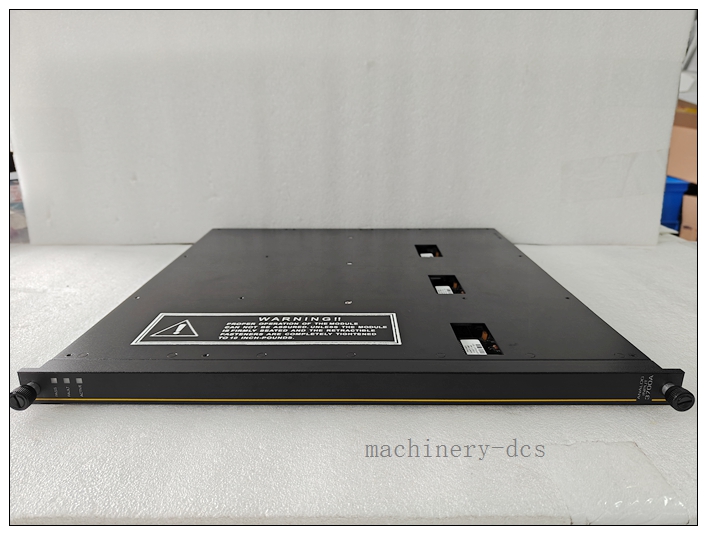

TRICONEX 3700A

Technical Specifications

• ‌Channel Count‌: 32 isolated analog input channels
• ‌Supported Signal Ranges‌: 0–5 V DC, 0–10 V DC industry standard voltage inputs
• ‌Redundancy Architecture‌: Full triple modular redundant (TMR) voting design
• ‌Safety Certification‌: IEC 61508 SIL 3 certified
• ‌Operating Temperature Range‌: 0°C to +60°C (ambient, measured at chassis bottom per IEC 60068-2-1 Test Nb)
• ‌Storage Temperature Range‌: -40°C to +75°C per IEC 60068-2-14 Test Na
• ‌Relative Humidity Tolerance‌: 5% to 95% non-condensing
• ‌Isolation Rating‌: Channel-to-channel and channel-to-ground full electrical isolation
• ‌Diagnostic Coverage‌: 100% channel-level fault detection without system downtime
• ‌Form Factor‌: Compact modular design, direct plug-in to Tricon backplane
• ‌Vibration Compliance‌: Sinusoidal vibration resistant per IEC 60068-2 industrial standards
• ‌Electromagnetic Compatibility‌: Hardened for high EMI industrial field environments

Key Features and Advantages

1. ‌TMR Median-Voting Fault Elimination‌
   The patented triple modular redundant median voting algorithm automatically rejects anomalous single-point data readings, eliminating transient signal corruption and false trips caused by field interference.
2. ‌SIL 3 Top-Tier Safety Integrity‌
   Fully IEC 61508 SIL 3 certified, meeting the strictest global regulatory requirements for safety instrumented loops in high-hazard industrial facilities.
3. ‌Zero-Downtime Hot-Swap Maintenance‌
   Supports online module replacement without system shutdown or safety loop isolation, drastically reducing planned maintenance downtime and eliminating production interruption risks.
4. ‌Full Channel-Level Self-Diagnostics‌
   Embedded advanced diagnostics detect open circuits, short circuits and channel faults in real time, feeding actionable fault data to the TriStation platform for proactive predictive maintenance.
5. ‌Harsh Environment Hardening‌
   Optimized for high EMI, wide temperature fluctuation and heavy vibration industrial sites, delivering stable long-term performance even in unconditioned field control cabinet deployments.

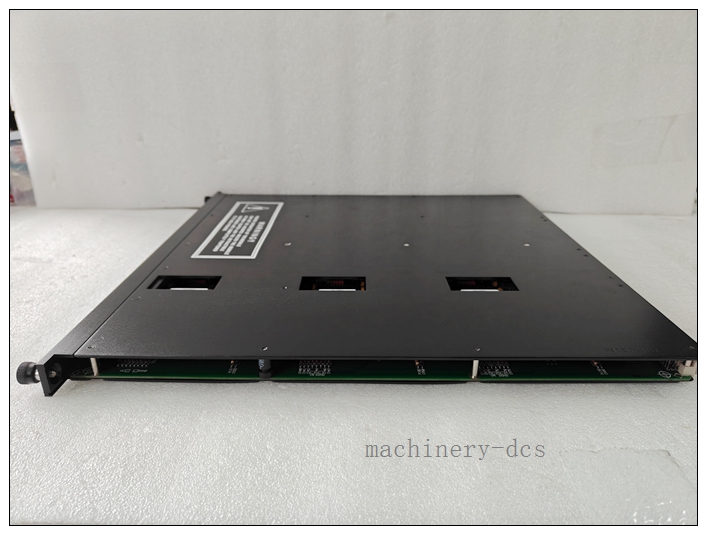

TRICONEX 3700A

Application Fields

• Oil and gas onshore/offshore process safety monitoring and ESD systems
• Petrochemical refining plant temperature, pressure and flow safety signal acquisition loops
• Chemical processing high-risk process safety instrumented systems
• Thermal power generation critical process parameter monitoring and turbine protection systems
• Fire & gas (F&G) detection and alarm safety control architectures
• Hazardous zone classified industrial installations requiring SIL 3 certified analog signal acquisition

Related Product Recommendations

• TRICONEX 3701 TMR 32-Channel Analog Input Module
• TRICONEX 3703E TMR 16-Channel Analog Output Module
• TRICONEX 3704E TMR 64-Channel Digital Input Module
• TRICONEX 3805E TMR 8-Channel Digital Output Module
• TRICONEX 8312 230VAC TMR Safety Power Supply Module (matched power backbone for full rack deployment)

Installation and Maintenance

1. ‌Pre-Installation Validation‌
   Confirm the 3700A part number and signal range specification match your field sensor output type before deployment, never connect 4-20mA current signals directly to the 0-5V/0-10V voltage input channels to avoid permanent channel damage.
2. ‌Rack Mounting Procedure‌
   Align the module with the designated Tricon backplane slot, push firmly until the locking latch clicks into place, then tighten the captive mounting screws to ensure stable electrical contact. For full TMR redundancy, always deploy the module as a complete 3-unit TMR set.
3. ‌Field Wiring Best Practice‌
   Use shielded twisted-pair cables for all field sensor signal wiring, separate analog signal cables from high-voltage power cables by at least 30cm to minimize electromagnetic interference, and terminate all cable shields to the designated system safety ground point.
4. ‌Routine Preventive Maintenance‌
   Conduct quarterly walkdown checks to verify all channel status LEDs show normal operation, inspect wiring terminals for loose connections, and clear accumulated dust from module ventilation slots to preserve cooling efficiency.
5. ‌Fault Troubleshooting & Replacement‌
   When a channel fault alarm appears in TriStation, first verify field sensor and wiring integrity. Confirm the remaining two TMR channels are fully operational before initiating hot-swap replacement, and validate all 32 channels return to normal data readings after the new module is seated.
6. ‌Spare Part Management‌
   Store backup 3700A modules in a temperature-controlled ESD-safe industrial cabinet, and perform annual bench signal validation on spare units to guarantee immediate operational readiness when on-site replacement is required.
