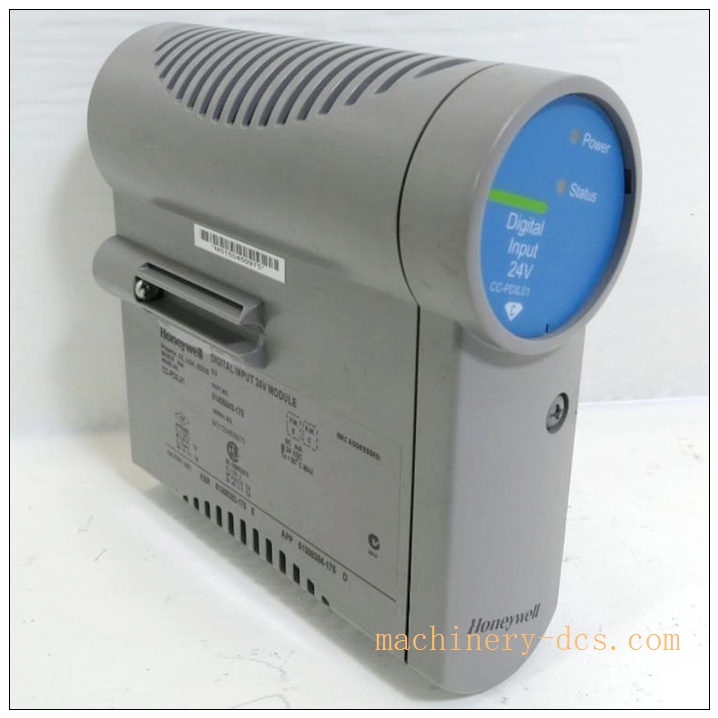

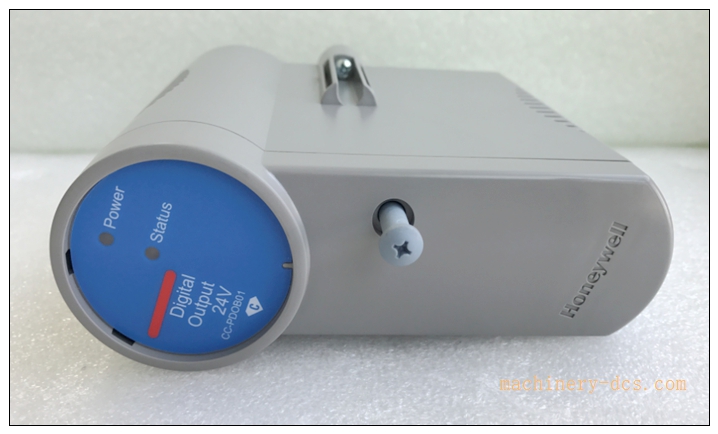

Honeywell DC-PDIL51 (51454818-175) Experion C-series 32-Channel 24VDC Digital Input Module
Product Description
The DC-PDIL51 (51454818-175) is a hot-swappable electronic digital input module for Honeywell Experion C200 / C300 DCS system. It is paired with FTA field terminal assembly, collecting 32 channels of 24VDC discrete status signals from field switches, contact auxiliary contacts, limit switches, pressure/temperature switches and ESD interlock feedback signals. The module supports high-resolution SOE (Sequence of Event) timestamp capture with 1ms resolution for fast event sequence recording. Optical galvanic isolation separates DCS control logic side and field wiring side, preventing surge, ground loop interference from damaging DCS rack. Each channel has configurable input filter to suppress contact bounce. Conformal coated PCB version is available for corrosive and dusty plant environments. It is widely used for field status feedback and emergency interlock signal acquisition in petrochemical, power and oil & gas Experion DCS projects.
DC-PDIL51
Technical Specifications
- Part Number: DC-PDIL51, 51454818-175
- Manufacturer: Honeywell
- Series: Experion C-series DCS
- Device Type: 32-CH 24VDC Digital Input Electronic Module
- Channels: 32 digital input channels
- Field Input Voltage: 18 ~ 30VDC (nominal 24VDC)
- ON threshold: ≥13VDC or ≥3mA
- OFF threshold: ≤5VDC or ≤1.2mA
- Input Impedance: ~4.2kΩ
- Isolation: 1500Vrms optical galvanic isolation
- Scan Rate: Normal 20ms, Fast 5ms; SOE resolution 1ms
- Debounce Filter: Software configurable channel filter
- Power Supply: Powered via C-series I/O backplane
- Power Consumption: Max 70mA @24VDC
- Operating Temperature: -40°C ~ +70°C
- Storage Temperature: -40°C ~ +85°C
- Relative Humidity: 5%~95%, non-condensing
- Mounting: Standard C-series DIN I/O rack, hot-swappable
- Weight: Approx. 0.37 kg
- Certifications: CE, UL, Class I Div.2, AEx nA IIC T4 Gc
Key Features
- High density 32-channel 24VDC digital input, saves rack cabinet space
- 1ms high precision SOE function for sequence of event fault analysis
- 1500Vrms optical isolation between DCS rack and field wiring
- Per-channel configurable debounce filter to eliminate contact bounce noise
- Hot-swappable design for online replacement without rack shutdown
- Conformal coating PCB option available for harsh corrosive plant environment
- Channel diagnostic status feedback, reports wiring fault/channel failure to Experion controller
- Seamless compatible with C200/C300 controller, configured by Control Builder
Application Scenarios
- Thermal power plant boiler/turbine interlock feedback, pump & fan status monitoring
- Petrochemical refinery ESD emergency shutdown switch, valve position feedback
- Oil & gas pipeline valve limit switch and safety interlock status collection
- Chemical reactor safety system discrete status signal acquisition
- Fertilizer plant process emergency interlock and field switch monitoring
- Water treatment plant pump running/ fault digital feedback
- Pulp & paper mill machinery safety interlock and alarm status input
- Spare replacement & retrofit of existing Honeywell Experion C-series DCS
Matching / Auxiliary Components
- Honeywell C200 / C300 controller and I/O rack backplane
- C-series FTA field terminal personality block
- 24VDC isolated field power supply
- Shielded twisted pair field cable and terminal junction box
- Surge protection barrier for field digital input circuit
- Experion PKS engineering station & Control Builder configuration software
- DIN rail rack mounting accessories and module retaining clips
- Spare front cover and terminal accessories
