Emerson DeltaV S‑Series KJ3204X1‑BK1 (SE4002S1T2B6) 32‑Channel 24 VDC High‑Side Discrete Output Module

Description

Emerson DeltaV S‑Series KJ3204X1‑BK1 (SE4002S1T2B6) 32‑Channel 24 VDC High‑Side Discrete Output Module

Product Detailed Information

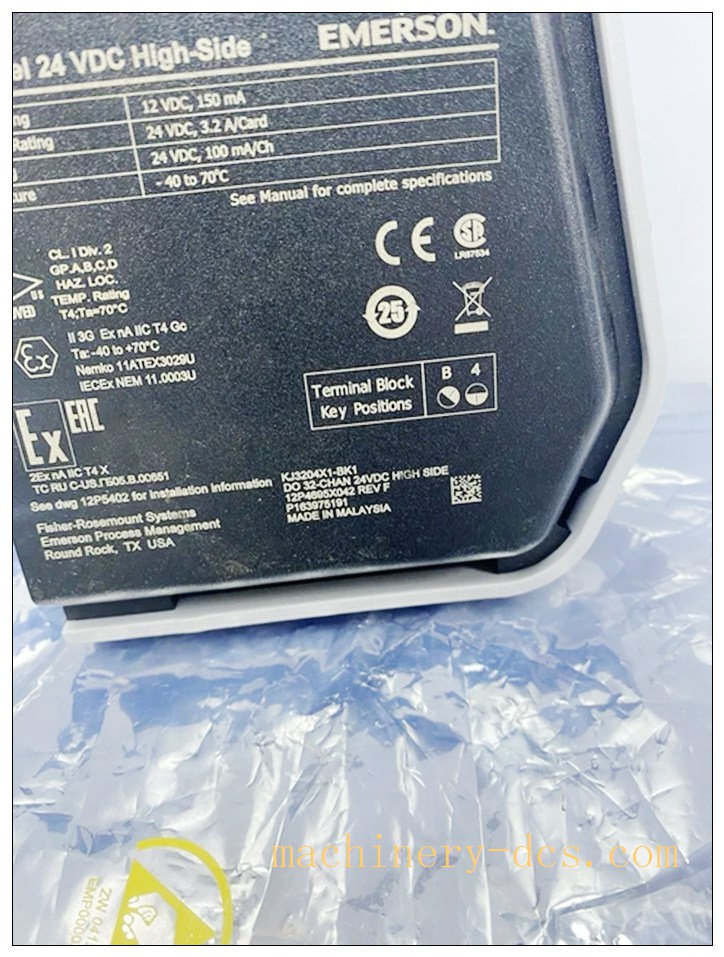

KJ3204X1‑BK1 is a high‑density discrete output module for Emerson DeltaV S‑Series DCS system. It provides 32‑channel 24 VDC high‑side digital outputs to drive field solenoid valves, relay coils, motor contactors and other discrete field actuators. Each channel integrates short‑circuit protection and open‑load diagnostic detection. This unit supports controlled hot‑swap within DeltaV S‑series hardware rack, features mechanical rotary keying to prevent mismatched terminal base installation, and communicates via DeltaV local bus to DeltaV controllers. Module delivers channel‑level fault diagnostics to DeltaV operator workstation for preventive maintenance. OEM production status: End‑of‑manufacture; new‑old‑stock, tested refurbished and field‑recovered spare modules are widely used for legacy plant life‑extension maintenance projects.

KJ3204X1-BK1

Technical Parameters

Compatibility & Installation Traps

Compatibility

1. Emerson DeltaV S‑series I/O rack, S‑series matching terminal base assemblies; rotary key position must match KJ3204X1‑BK1 module key code
2. DeltaV MK‑Controller series controllers, DeltaV local I/O bus infrastructure
3. 24 VDC isolated field power supply for output field circuit; DeltaV engineering configuration station

Critical note: This is high‑side discrete output module. Cannot substitute for digital input, analog input or analog output modules. Mismatched rotary keying on terminal base prevents physical insertion, avoid forcing module into incompatible base. DeltaV module firmware revision must align with controller firmware; firmware mismatch triggers communication dropout and channel malfunction.

Installation Traps

1. Field‑power current budget risk: Sum total of all 32‑channel field load current must not exceed module maximum 3.2 A total bussed field power rating. Over‑current triggers module group shutdown and nuisance fault alarms.
2. Rotary keying constraint: Never alter terminal‑base rotary‑key position to force fit this module; wrong key setting will lead to undefined electrical behavior and hardware damage. Use terminal base with correct key code for KJ3204X1‑BK1.
3. Hot‑swap safety limitation: Hardware supports hot‑swap, but removing live module will de‑energize all 32 output channels. Perform replacement with interlock bypass permit; avoid swap during critical process transient states.
4. Inductive‑load surge suppression: When driving inductive loads (solenoid coils, relays), external flyback diode suppression is strongly recommended. Inductive kickback may degrade module channel lifetime over large‑cycle operation.
5. Field‑power polarity compliance: 24 VDC field power polarity must strictly follow terminal‑base wiring diagram. Reverse field‑power polarity causes channel permanent damage.
6. ESD vulnerability: Backplane connector and internal signal circuits are static‑sensitive. ESD wrist‑strap mandatory for module handling; invisible ESD damage causes sporadic channel dropout or intermittent diagnostic faults.
7. Part‑number suffix validation: Confirm full marking KJ3204X1‑BK1. Other KJ32xx series modules have different channel type and rating and cannot direct drop‑in swap.
8. Mandatory post‑swap download & verification: Spare module does not retain DeltaV I/O configuration. After replacement, verify I/O channel configuration download, confirm per‑channel diagnostic function.

Standard Operating Procedure (SOP)

1. Pre‑work: Execute plant lock‑out‑tag‑out for DeltaV control cabinet. Apply safety bypass permit for all interlock logic driven by this module’s output channels. Wear certified ESD anti‑static wrist strap.
2. Data backup: Export complete DeltaV project configuration; record module firmware revision, channel tag assignments, field‑power parameters; export system event & fault log.
3. Module removal: Record front‑panel LED status. Release module front latch handle, pull ‑BK1 module straight out of S‑series terminal‑base slot. Inspect terminal‑base back‑plane connector for bent pins, oxidation or contamination. Confirm rotary‑key position on existing terminal base.
4. Incoming inspection: Visually inspect spare ‑BK1 module for PCB mechanical damage, front‑panel LED integrity. Verify full part‑number marking and hardware / firmware revision. Confirm rotary‑key position matches terminal‑base setting.
5. Mechanical mounting: Smoothly insert new module fully into matched terminal‑base slot; close latch to guarantee full electrical contact.
6. Cabling: Verify terminal‑base field wiring remains intact; double‑check 24 VDC field‑power polarity. Confirm cabinet protective‑earth bonding.
7. Power‑on commissioning: Keep DeltaV rack energized. Wait for module bus‑up sequence. Upgrade/downgrade module firmware to match DeltaV controller firmware revision. Download I/O configuration from DeltaV engineering station. Clear historical fault buffer.
8. Functional validation: Confirm module health LED steady healthy status, bus communication OK status. Force each output channel ON/OFF via DeltaV engineering tool, verify corresponding field‑actuator action. Validate open‑load and short‑circuit diagnostic reporting function. Cross‑check output status indication on DeltaV operator HMI workstation. Confirm no persistent module‑fault or channel‑fault alarms.
9. Documentation: Update plant maintenance log, archive module serial‑number, firmware‑version, channel‑test‑result records. Properly package defective removed module. Release lock‑out‑tag‑out permit only after full acceptance‑test successfully completed.

Application Scenarios

‑ Power plant, oil‑gas, petrochemical, chemical process DeltaV DCS control system ‑ Discrete control of solenoid valves, relay coils, motor starter coils and local field actuators ‑ High‑density digital output cabinet‑mount I/O for large‑scale process control ‑ Legacy Emerson DeltaV S‑series platform preventive maintenance & life‑extension retrofit projects

Matching & Supporting Components

1. DeltaV S‑series rack chassis, S‑series matched‑key terminal‑base assembly
2. DeltaV MK‑series controller, DeltaV Engineering Studio configuration software
3. Isolated 24 VDC field power supply for discrete output field circuit
4. Inductive‑load flyback‑diode suppression kits for solenoid / relay loads
5. ESD‑shielded anti‑static storage bag for spare‑module storage

Brand‑Related Alternative & Recommended Models

1. Other KJ32xx S‑series I/O modules: different channel types (DI / AI / AO), cannot direct substitute; select exact part‑number according to channel requirement
2. KJ3104X1‑BK1: Earlier‑generation S‑series discrete output variant, verify hardware compatibility before swap
3. Emerson DeltaV PK‑Controller / new‑generation I/O family: For complete system‑migration new‑build projects
