Emerson KJ4002X1-BA1 DeltaV Left 8-Wide Vertical Carrier

Description

Emerson KJ4002X1-BA1 DeltaV Left 8-Wide Vertical Carrier

Product Description

The KJ4002X1-BA1 is the left-side 8-wide vertical carrier designed for Emerson DeltaV distributed control system (DCS). It serves as the mechanical mounting backplane carrier that accommodates up to 8 vertical DeltaV I/O modules. This unit integrates local bus power distribution and signal routing connectors, delivering stable power and high-speed local bus communication for all plugged-in I/O cards. Built for cabinet assembly in process automation, it provides robust mechanical support, reliable inter-module signal transmission and standardized module hot-swap infrastructure for continuous process plants.

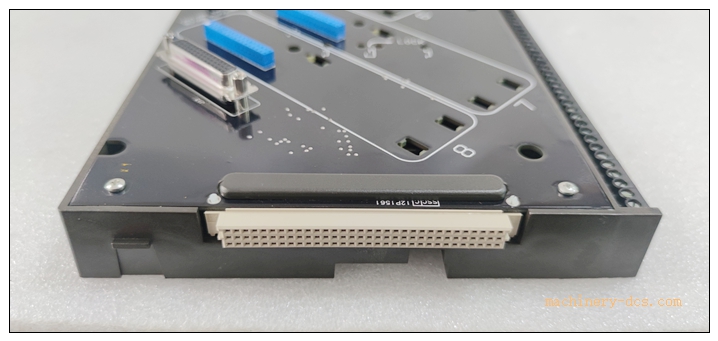

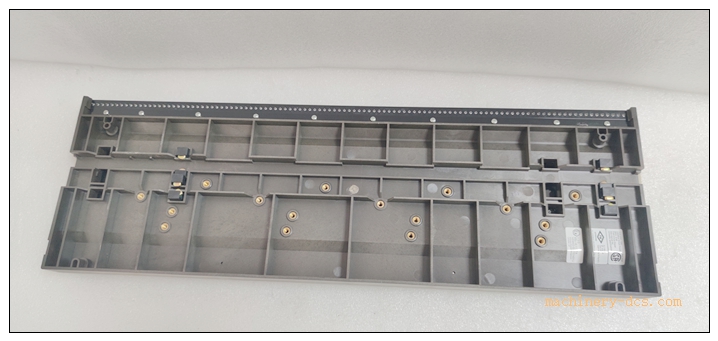

KJ4002X1-BA1

Technical Specifications

• Part Number: KJ4002X1-BA1
• Manufacturer: Emerson
• Product Type: Left 8-Wide Vertical Carrier
• Compatible System: DeltaV DCS
• Module Slots: 8 vertical I/O module positions
• Local Bus Power: 12.6 VDC, 15 A
• Field Circuit Rating: 30 VDC, 6.5 A
• Operating Temperature: -40°C ~ +70°C
• Relative Humidity: 5% to 95%, non-condensing
• Vibration Resistance: 0.7g (13.2–150Hz)
• Shock Resistance: 10g, ½ sine wave, 11ms
• Approvals: ATEX II 3G Ex ec IIC Gc, FM, CE
• Airborne Contaminant: ISA-S71.04 Class G3

Key Features

1. Left vertical 8-slot carrier for DeltaV Series 2 I/O modules
2. Integrated backplane bus bars for power and local bus communication
3. Rugged industrial mechanical structure for vibration-prone environments
4. Supports hot-swapping of individual I/O modules without system shutdown
5. ATEX Zone 2 certified for hazardous industrial locations
6. Simplified cabinet wiring and standardized module arrangement
7. High noise immunity for stable signal transmission
8. Easy rack installation and maintenance for control cabinet assembly

Application Scenarios

• Petrochemical and refinery process control systems
• Power plant boiler, turbine and auxiliary control DCS
• Oil & gas onshore and offshore production control cabinets
• Pharmaceutical batch and continuous process automation
• Pulp & paper mill process monitoring and control
• Water & wastewater treatment plant control systems
• Metallurgy and mining plant distributed control
• Food & beverage manufacturing process control

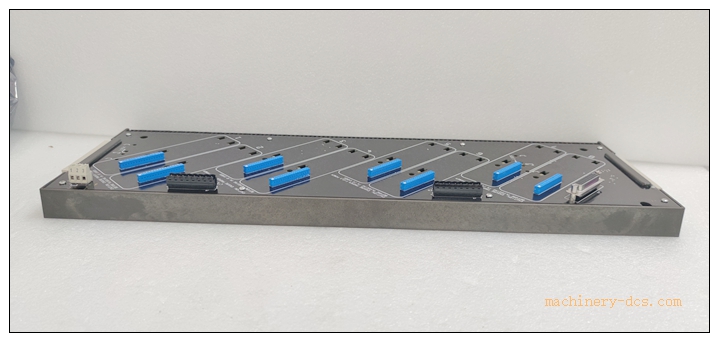

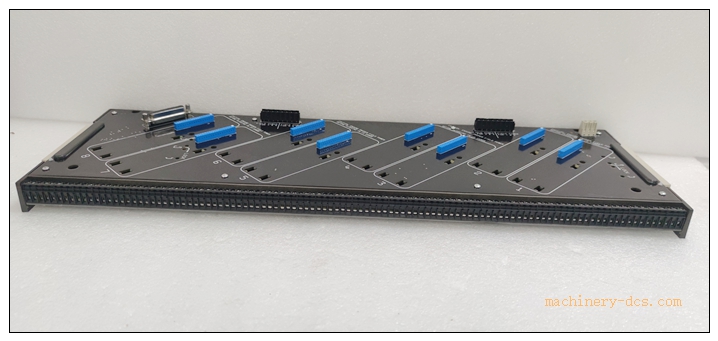

KJ4002X1-BA1

Matching / Auxiliary Components

• KJ4002X1-BB1 Right 8-Wide Vertical Carrier
• DeltaV Series 2 AI/AO/DI/DO I/O modules
• KJ4001X1-CA1 Terminal blocks
• DeltaV redundant power supply modules
• Local bus extender cables (KJ4002X1-BF1 / KJ4002X1-BF2)
• DeltaV controller (MD Plus / M5 controllers)
• System cabinet and DIN rail mounting hardware
• Fiber / Ethernet communication adapters for DeltaV network
