Description
Emerson A6500‑UM Universal Measurement Card
Product Brand & Model Title
Official Product Name: A6500‑UM Universal Measurement Card Brand: Emerson / EPRO Model No: A6500‑UM Product Grade: API‑670 compliant dual‑channel universal monitoring card for AMS 6500 ATG machinery protection system; available as new‑stock and spare‑part supplyEmerson
A6500‑UM
General Product Overview

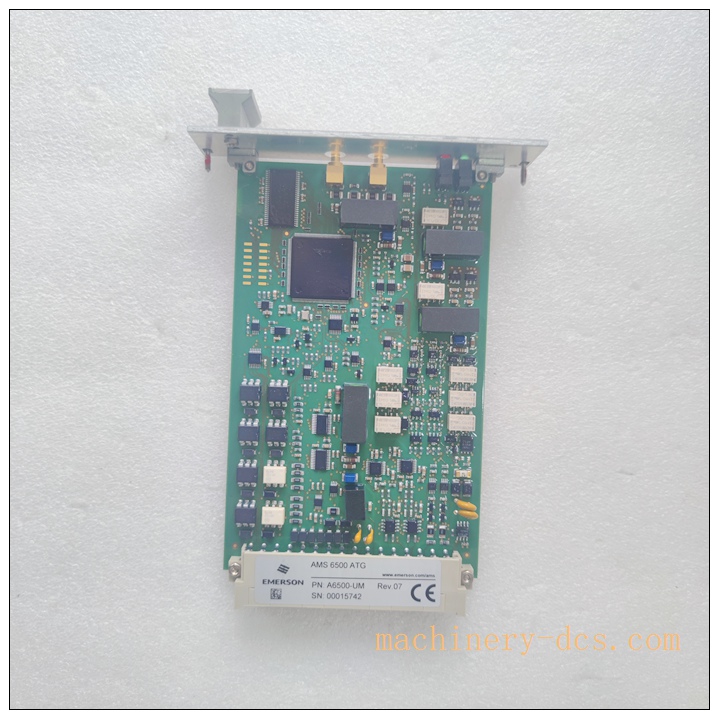

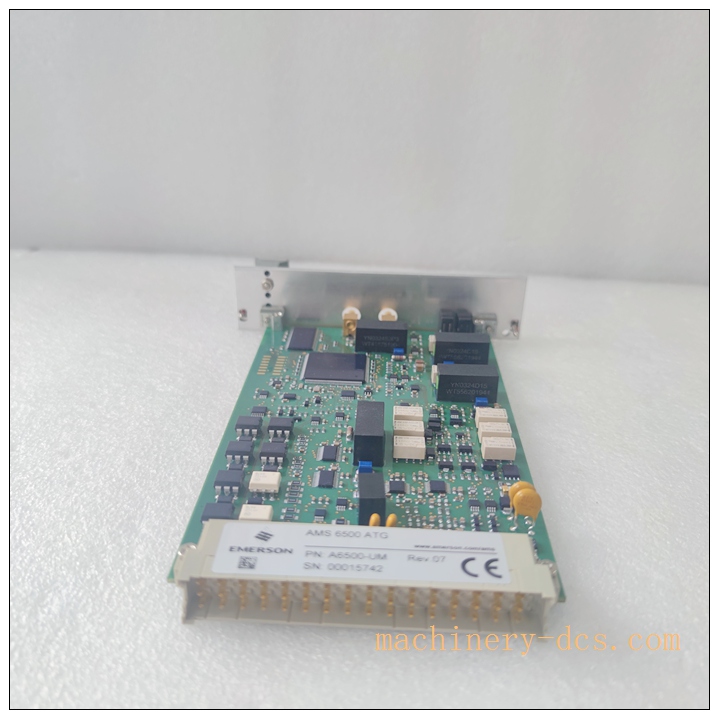

The A6500‑UM is a hot‑swappable 3U Eurocard measurement module for AMS 6500 ATG turbine‑protection rack system. It provides 2 independent sensor input channels, compatible with eddy‑current probes, piezoelectric accelerometers/velometers, seismic velocity sensors, LF low‑frequency vibration sensors, Hall‑effect speed sensors, and LVDT (with A6500‑LC adapter). It measures shaft relative vibration, casing vibration, thrust position, differential expansion, rotational speed and key‑phasor signals. It integrates DSP signal processing, PeakVue diagnostics, 5 digital inputs, 6 digital outputs and isolated 0/4‑20 mA analog outputs. Measurement data is transmitted via internal RS‑485 bus to A6500‑CC communication card for Modbus‑TCP / OPC‑UA upper‑system access. Widely used for steam‑turbine, gas‑turbine and centrifugal‑compressor protection conforming to API‑670 standard.
Model Coding Definition
‑ : AMS 6500 ATG machinery‑protection system platform ‑ UM: Universal Measurement card, dual‑channel multi‑sensor compatible monitoring board
Form factor: 3U Eurocard, 6TE slot width, fits ‑SR / ‑RR / ‑FR racksEmerson.
Technical Specifications
Electrical Parameters

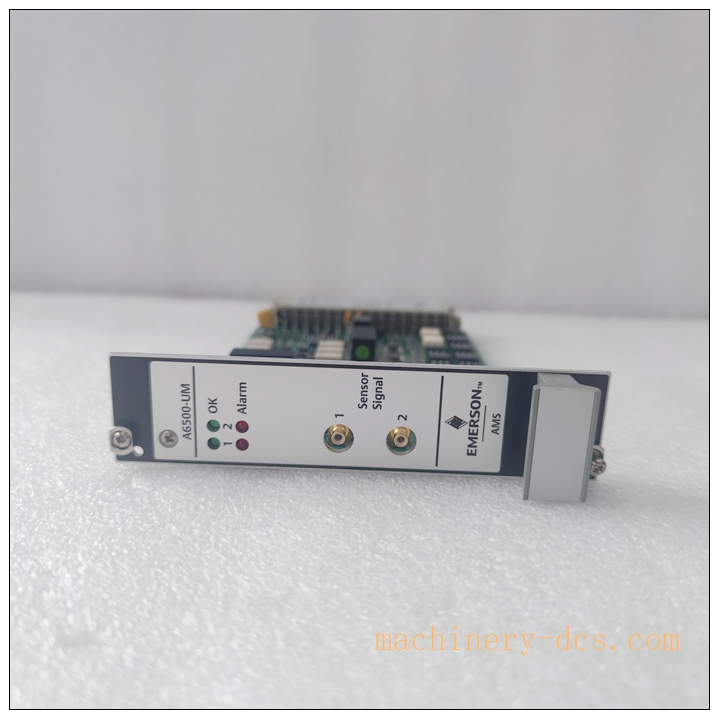

‑ Power Supply: 24 VDC via rack backplane; max power consumption 6 W ‑ Sensor Input: 2 channels, independent / combined mode configurable ‑ Supported sensors: Eddy‑current, piezo, seismic, LF‑vibration, Hall‑effect; LVDT with ‑LC accessoryEmerson ‑ Frequency response: 0‑18750 Hz; Butterworth filters compliant with ISO 10816Emerson ‑ Digital I/O: 5 digital inputs, 6 digital outputs (dry‑contact compatible) ‑ Analog Output: 0/4‑20 mA isolated current output for each channel ‑ Internal Bus: RS‑485 system bus for rack‑wide data exchange ‑ Front‑panel: OK / Alarm LED indicators, two BNC sensor‑signal test‑ports
Performance
‑ Typical measurement accuracy: ±0.1 %‑FS ‑ Supports PeakVue impact‑demodulation for bearing‑fault early detection ‑ Built‑in sensor cable break / short‑circuit diagnostics ‑ Limit‑alarm & trip‑threshold configurable via engineering software
Environmental Specifications
‑ Operating Temperature: ‑20 ℃ ~ +70 ℃ (‑20 ℃ ~ +55 ℃ without forced cooling)Emerson ‑ Storage Temperature: ‑40 ℃ ~ +85 ℃ ‑ Relative Humidity: 5 %‑95 %, non‑condensing ‑ Vibration & Shock: Compliant with IEC 60068‑2 for turbine‑skid cabinet ‑ Pollution Degree G3 (ISA‑S71.04), conformal‑coated option available ‑ Ingress Rating: IP20 (cabinet‑mount only)Emerson
Mechanical & Certification
‑ Dimension: 100 mm × 160 mm, 3U‑6TE Eurocard ‑ Weight: Approx. 200 gEmerson ‑ Certifications: CE, API‑670 machinery‑protection compliance ‑ Lifecycle Status: Active new‑stock & spare‑part supply
A6500‑UM
Core Product Features
- Dual‑channel universal sensor interface: Supports most common rotating‑machine sensors without hardware modification, reduces spare‑part variety.
- PeakVue bearing‑fault demodulation: Captures early‑stage bearing impact faults for predictive‑maintenance.
- Comprehensive sensor self‑diagnostics: Detects cable open‑circuit, short‑circuit and sensor hardware failure.
- Isolated 0/4‑20 mA analog outputs: Direct signal access for local chart‑recorder or third‑party DCS.
- Built‑in digital I/O: Remote threshold‑multiply, trip‑bypass and status‑output without extra auxiliary modules.
- Hot‑swap capability: Live card replacement in ‑SR rack without system power‑down.
- API‑670 compliance: Fully meets international heavy‑duty rotating‑equipment protection requirements.
- System‑wide data aggregation: Upload vibration, position, speed and alarm status via ‑CC to SCADA / host‑system over Modbus‑TCP / OPC‑UAEmerson.
Application Fields
‑ Power‑generation: Steam‑turbine / gas‑turbine shaft‑vibration, thrust‑position, differential‑expansion monitoring ‑ Oil‑gas & petrochemical: Centrifugal‑compressor API‑670 machinery‑protection ‑ Refineries: Critical rotating‑machinery trip‑protection loops ‑ Hydro‑power: Hydro‑turbine vibration and shaft‑position monitoring ‑ Heavy‑industry: Large blowers, critical‑pump condition‑monitoring & protection ‑ Retrofit‑maintenance projects: Spare‑part replacement for existing AMS 6500‑ATG installed‑base systems
Product Advantages & Value
‑ Multi‑sensor universal input design simplifies engineering and spare‑part management for mixed‑sensor‑type projects. ‑ Combines protection‑trip function and predictive‑diagnosis PeakVue in one single card. ‑ Hot‑swap function minimizes plant‑downtime during module‑replacement. ‑ Rich onboard I/O and analog outputs reduce requirement for external signal‑conversion hardware. ‑ Field‑proven hardware for large global installed‑base of turbine‑compressor sites.
Compatible System & Interface Description
‑ Compatible Platform: Emerson AMS 6500 ATG machinery‑protection system ‑ Host Rack: ‑SR / ‑RR / ‑FR 19‑inch 3U racks ‑ Cooperated modules: ‑RC relay‑logic card; ‑CC communication card; ‑LC LVDT signal adapter; ‑PSU rack power‑supply ‑ Configuration Tool: AMS 6500 engineering software for parameter setting, threshold configuration and fault‑diagnosis review ‑ Note: LVDT sensor requires additional ‑LC adapter board for signal conditioningEmerson.
