Description
Bosch Rexroth VT‑HNC100‑1‑23W‑08‑P‑0 VT‑HNC100 Single‑Axis Programmable Electro‑Hydraulic Digital Axis Controller
Product Brand & Model Title
Official Product Name: VT‑HNC100 Single‑Axis Programmable Electro‑Hydraulic Digital Axis Controller Brand: Bosch Rexroth (Indramat) Model No: VT‑HNC100‑1‑23W‑08‑P‑0 Material Number: R900959001Indramat U… Product Grade: Legacy wall‑mount NC‑type hydraulic motion controller with PROFIBUS‑DP interface; original production discontinued, available as spare‑part stock for existing installed‑base machineryGK-DCS
General Product Overview
The VT‑HNC100‑1‑23W‑08‑P‑0 is a programmable single‑axis digital controller dedicated for electro‑hydraulic closed‑loop regulation. It executes position, velocity, pressure and force control for hydraulic actuators, supporting TTL incremental encoders and SSI absolute position transducers for position feedback, and provides analog output to drive proportional hydraulic valves. This 23‑series variant adopts wall‑mount housing, integrates 8 configurable digital I/O channels, and is equipped with native PROFIBUS‑DP fieldbus interface for PLC / DCS higher‑level system interconnection. It supports standalone NC‑motion sequence programming, comprehensive axis monitoring, following‑error alarm and travel‑limit supervision. Widely deployed on hydraulic presses, forming machines and special‑purpose hydraulic equipment; used for spare‑part replacement and retrofit of legacy hydraulic machineryGK-DCS.
VT‑HNC100‑1‑23W‑08‑P‑0
Model Coding Definition
- VT‑HNC100: HNC100 series digital electro‑hydraulic axis‑controller platform
- 1: Single controlled hydraulic axis
- 23: Component series 23 (belongs to 2X hardware family, fixed mechanical dimension and connector layout)
- W: Wall‑mount housing type
- 08: 8‑channel configurable digital input / output
- P: PROFIBUS‑DP fieldbus interface integrated
- 0: Standard base hardware variant, no extra evaluation board fitted
Technical Specifications
Electrical Parameters
‑ Supply Voltage: 24 VDC (18‑30 VDC) ‑ Typical Power Consumption: Approx. 48 W ‑ Encoder Interfaces: TTL incremental encoder; SSI absolute encoder (RS485, max 28 bit); +5 V encoder supply, max 200 mAIndramat U… ‑ Valve Drive Output: ±10 V analog output for proportional hydraulic valves ‑ Digital I/O: 8‑channel configurable digital input / output ‑ Analog Input: 4‑channel analog input (±10 V / 4‑20 mA configurable) ‑ On‑board Diagnostics: Multi‑LED indicators for power, run, fault, bus‑status and axis‑alarm
Motion Control Performance
‑ Control Loops: Position loop, velocity loop, pressure / force closed‑loop control, switchable position‑force compound control ‑ Control Cycle: Minimum 2 ms real‑time control cycle ‑ Programming Language: Rexroth NC‑program syntax, supports sub‑programs, conditional jumps and motion‑profile execution ‑ Monitoring Functions: Following‑error monitoring, software travel‑limit, sensor‑fault detection, valve‑output supervision
Communication Interfaces
‑ PROFIBUS‑DP: Native onboard interface, max 12 Mbaud, DP‑V0 / DP‑V1 protocol supportBuyRexroth ‑ Service Port: RS232 for PC commissioning, parameter setting and fault diagnosis
Environmental Specifications
‑ Operating Temperature: 0 ℃ ~ +50 ℃ (cabinet / wall‑mount indoor environment) ‑ Storage Temperature: −20 ℃ ~ +70 ℃ ‑ Relative Humidity: 5 %‑95 %, non‑condensing ‑ Vibration & Shock: Compliant with IEC 60068‑2 industrial‑machinery standard ‑ Ingress Rating: IP20 ‑ Conformal Coating: Not fitted for this base unit
Mechanical & Certification
‑ Mounting: Wall‑mount installation (not DIN‑rail) ‑ Weight: Approx. 600 g ‑ Certifications: CE compliance for industrial machinery ‑ Lifecycle Status: EOP (End‑of‑Production); spare‑part supply only, successor is VT‑‑1‑3X‑series controller
Core Product Features
- Single‑axis electro‑hydraulic multi‑loop closed‑loop control: Integrated position, speed, pressure and force regulation for hydraulic cylinders and actuators.
- Native PROFIBUS‑DP fieldbus interface: Seamless data exchange with PLC / DCS, convenient integration into plant‑level automation systemsGK-DCS.
- Multiple feedback‑signal compatibility: Supports TTL incremental encoders and SSI absolute position transducers.
- Stand‑alone NC‑program execution: Runs motion‑sequence programs locally without upper‑level CNC controller.
- 8‑channel integrated digital I/O: Handles machine interlock, sensor trigger and local logic signals.
- Comprehensive axis safety‑monitoring: Following‑error detection, travel‑limit supervision and sensor‑fault diagnostics.
- Direct proportional‑valve driving: ±10 V analog output drives Rexroth and third‑party hydraulic proportional valves.
- PC‑based commissioning: Parameter tuning, NC‑program download and fault diagnosis via WIN‑PED software.
VT‑HNC100‑1‑23W‑08‑P‑0
Application Fields
‑ Press machinery: Hydraulic press position‑force compound closed‑loop control ‑ Plastic industry: Injection‑molding‑machine hydraulic‑axis motion control ‑ Special‑purpose machinery: Hydraulic test‑benches, metal‑forming equipment ‑ Machine‑tool industry: Hydraulic‑slide‑way and hydraulic‑spindle control ‑ Retrofit & maintenance projects: Spare‑part replacement for legacy ‑equipped hydraulic machines ‑ Metallurgical equipment: Precise motion‑control for hydraulic actuators
Product Advantages & Value
‑ Purpose‑optimized for hydraulic closed‑loop control, delivers faster response than general‑purpose PLC for hydraulic loops. ‑ Built‑in PROFIBUS‑DP interface eliminates requirement for external gateway for fieldbus connection. ‑ Stand‑alone NC‑program execution reduces dependency on upper‑level controllers. ‑ Integrated digital I/O covers basic machine‑interlock requirements without extra I/O modules. ‑ Rich monitoring functions improve machine safety and simplify on‑site fault‑location. ‑ Proven mature hardware for large installed‑base of hydraulic‑machinery assets.
Compatible System & Interface Description

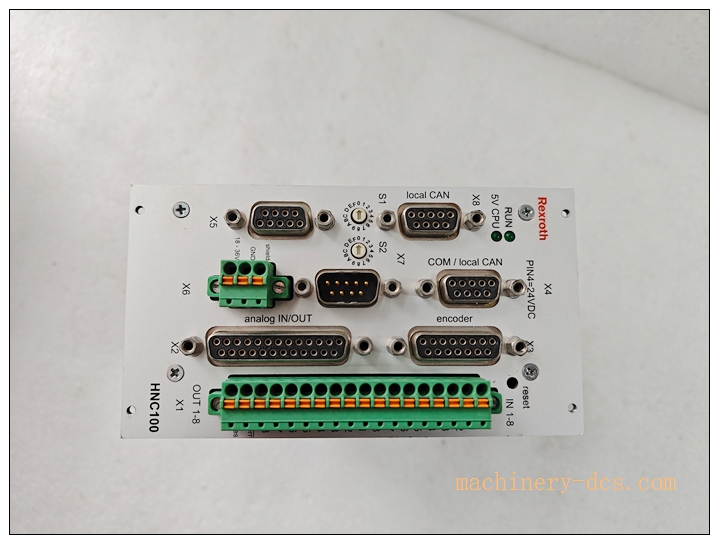

‑ Matched Actuators: Rexroth proportional hydraulic valves, hydraulic cylinders with position transducers ‑ Feedback Devices: TTL incremental encoders, SSI absolute position sensors ‑ Fieldbus Interface: X7‑PROFIBUS‑DP connector for PLC / DCS connection ‑ Service Interface: RS232 service port for WIN‑PED commissioning‑software ‑ Mounting: Wall‑mount housing, machine‑body installation ‑ Configuration Tool: Rexroth WIN‑PED software for parameter setup, NC‑program editing and diagnostic review
Related Recommended Products
- : 3X‑series upgraded single‑axis controller, successor replacement for 2‑series hardware
- VT‑‑1‑23W‑08‑0‑0: Same hardware without PROFIBUS‑DP fieldbus
- 4WREE‑series Rexroth proportional valve: Matched hydraulic proportional valve for control output
- SSI absolute position transducer: Position‑feedback sensor for hydraulic cylinders
- VT‑‑2‑23W‑16‑P‑0: Dual‑axis controller with PROFIBUS‑DP and 16 digital I/O
- WIN‑PED commissioning software: Official parameter‑setting and diagnostic tool for series
