Bently Nevada 3500/40-01-00 4-Channel Proximitor Monitor Module for 3500 Machinery Protection Rack

Description

Bently Nevada 3500/40-01-00 4-Channel Proximitor Monitor Module for 3500 Machinery Protection Rack

Product Description

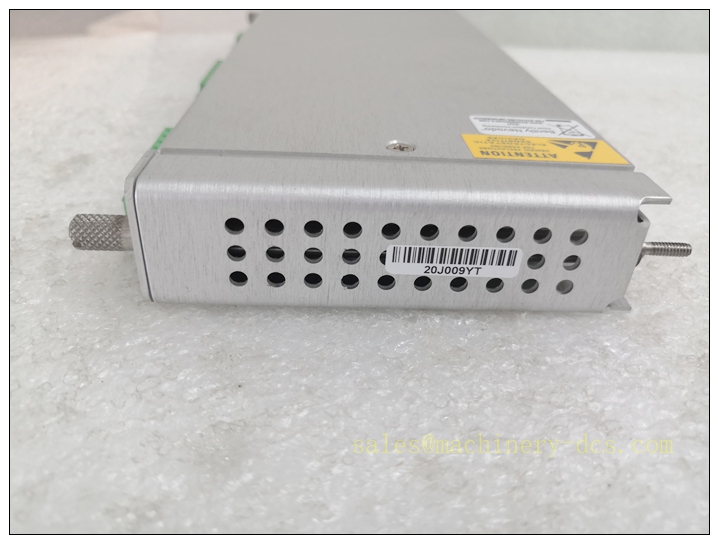

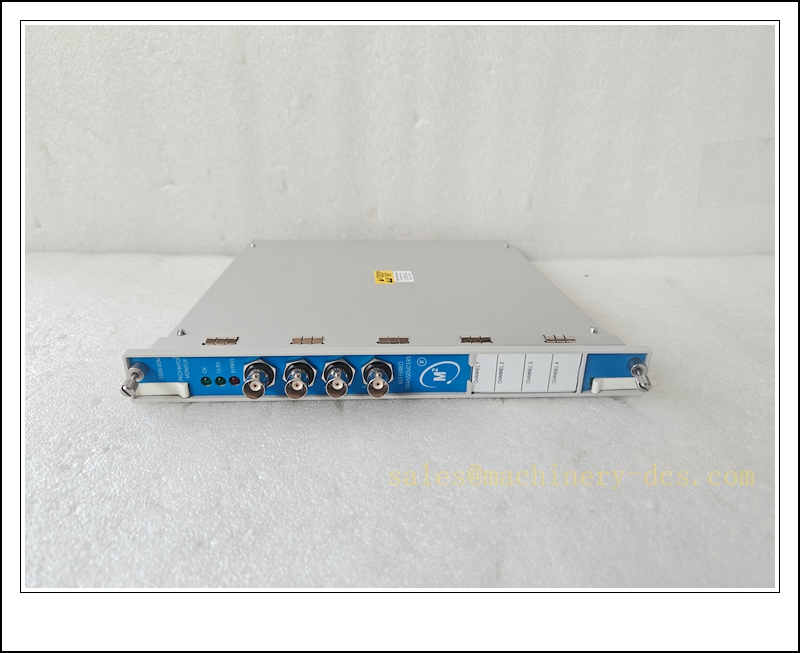

The 3500/40-01-00 is a four-channel proximitor-only monitor module designed for the Bently Nevada 3500 turbine supervisory instrumentation (TSI) machinery protection system. It accepts input exclusively from eddy-current proximity probes to measure shaft radial vibration, thrust position, eccentricity and differential expansion. This module processes transducer gap signals, calculates dynamic measurement values, generates Alert and Danger alarm outputs, and exchanges channel data, alarm status and diagnostic information across the 3500 proprietary backplane to rack communication modules such as 3500/92 Modbus gateway, 3500/91 TDI or EGD gateway. Unlike the 3500/42 mixed proximitor/seismic variant, the 3500/40 supports only eddy-current probe inputs and does not accept seismic sensors. It is widely deployed on steam turbines, gas turbines, centrifugal compressors and generators for rotating machinery supervision in power, oil & gas and petrochemical plants.

Technical Parameters

Recommended Related Models (8 units)

1. 3500/42 SIL2-04-00: 4-channel Proximitor / Seismic SIL2 monitor
2. 3500/92-04-01-00: Modbus TCP / RTU communication gateway
3. 3500/91-01-01-01: TDI Transient Data Interface for waveform capture
4. 161204-01: 3500/91 EGD Ethernet gateway
5. 3500/22M: Keyphasor speed and phase reference module
6. 3500/05-01-01-00-00-00: 13-slot 3500 system rack and backplane
7. 3500/15: Rack DC power supply module
8. 100M2833: USB configuration service cable

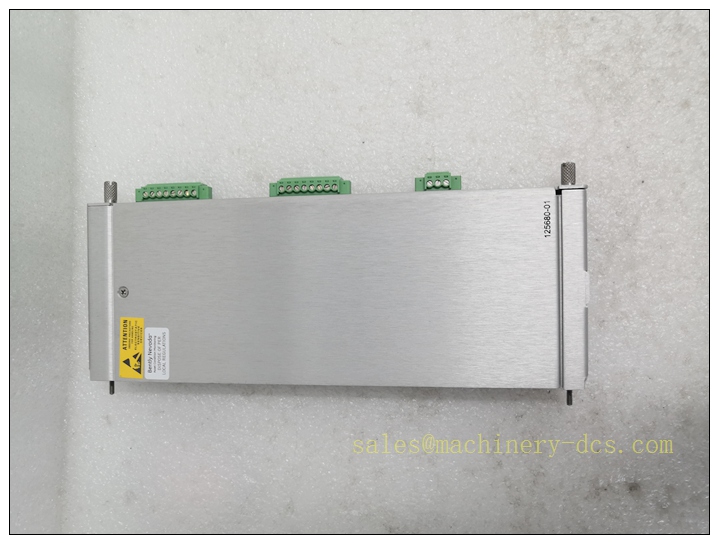

3500/40-01-00

Compatibility & Installation Traps

Compatibility

• Primary host system: Bently Nevada 3500 machinery protection rack
• Compatible rack modules: 3500/22M Keyphasor, 3500/92, 3500/91 TDI/EGD, 3500/94M display module
• Software: Official Bently 3500 Rack Configuration Software
• Note: This module works only with proximity probes. It cannot be configured for seismic velocity or acceleration inputs, so it is not a direct drop-in replacement for 3500/42. The -01 standard termination variant differs from barrier-type suffix versions and cannot share the same field wiring scheme as internal barrier cards.

Critical Installation Traps

1. Transducer Type Limitation: Do not connect seismic velocity/acceleration sensors to this module. Input circuits are optimized for eddy-current probe bias voltage and will report constant transducer faults if seismic sensors are wired in.
2. Channel Configuration Migration: The replacement module must be loaded with the original channel setup including probe sensitivity, full-scale range, Alert/Danger alarm thresholds and latch settings. Incorrect configuration leads to invalid trip setpoints.
3. Keyphasor Dependency: Orbit, Bode plot and synchronous vibration measurements rely on a healthy 3500/22M Keyphasor signal. A noisy or lost Keyphasor results in unusable dynamic data even if the 3500/40 module itself is fault-free.
4. ESD Sensitivity: Analog signal conditioning and backplane interface circuits are ESD-sensitive. Module replacement must be performed on a grounded ESD workstation with a wrist strap.
5. Slot Assignment Rules: Install only in designated monitor slots. Improper slot placement prevents backplane data transmission to communication gateways and stops DCS/System 1 from receiving channel values.
6. Probe Cable Segregation: Proximity probe extension cables must be routed separately from high-current VFD, solenoid and motor power cables. Electrical interference causes gap drift and intermittent transducer OK alarms.
7. Hot Swap and Safety Loop Assessment: While many 3500 racks support module hot swap, this monitor may be part of protection trip voting logic. Follow site work permit and bypass procedures before removal on running critical machinery.
8. Termination Variant Difference: This -01 version has no internal signal barriers. Do not substitute it for internal barrier 3500/40 or 3500/42 variants in hazardous classified zones without re-evaluating the intrinsically safe loop design.

Standard Operating Procedure (SOP)

1. Pre-installation inspection: Inspect front panel, rear termination terminals and backplane edge connector for bent pins, corrosion or burn damage. Confirm full part number 3500/40-01-00 against site spare records.
2. Configuration backup: Export the full rack configuration, channel assignments, probe sensitivity, alarm setpoints and voting logic via the 3500 configuration software.
3. System preparation: Apply approved safety bypasses for affected protection loops, notify control room and obtain the required work permit.
4. Energy isolation: If hot swap is not authorized, de-energize the 3500 rack power supply and implement lockout/tagout. Allow internal module capacitors to fully discharge.
5. Mechanical replacement: Release ejector latches and extract the faulty monitor. Insert the replacement 3500/40-01-00 fully into the assigned monitor slot and secure the backplane connector.
6. Power-up and self-test: Restore rack power. Observe front-panel OK, Alert and Danger LEDs. Run module self-test and verify backplane communication with all rack modules.
7. Channel and loop validation: Load the saved configuration. Verify transducer gap voltage, transducer OK status, vibration and position readings, alarm action and data transmission to the Modbus/TDI gateway.
8. Process qualification: Perform static and dynamic machine tests, cross-check readings against the local rack display and DCS values. Remove safety bypasses only after confirming no unintended trip actions.
9. Decommissioning: Pack the defective module in anti-static shielding bags, label fault symptoms for failure analysis and archive the latest rack configuration file.

Application Scenarios

• Shaft vibration and thrust position monitoring for critical rotating equipment using eddy-current proximity probes
• Measurement of radial vibration, thrust wear, eccentricity and differential expansion on steam turbines, gas turbines and centrifugal compressors
• Machinery alarm generation and trip voting within the 3500 TSI protection system
• Data transmission to DCS, SCADA and condition monitoring platforms via 3500/92 Modbus or 3500/91 TDI/EGD modules
• Preventive maintenance spare for proximity channel faults, transducer signal errors and backplane communication issues
• API 670 turbine supervisory instrumentation in power generation, oil & gas and petrochemical facilities

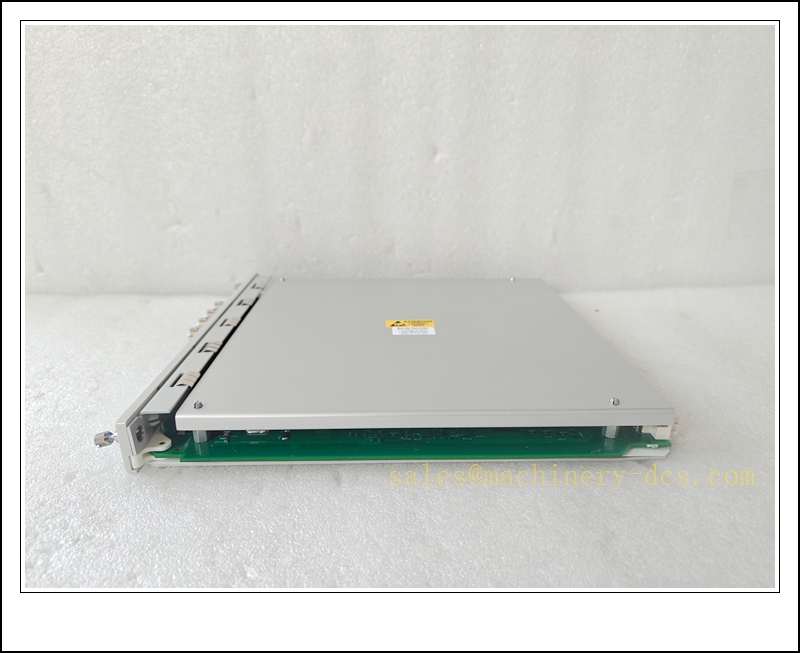

3500/40-01-00

Supporting Components

• ESD wrist strap, anti-static shielding bags and conductive work mat
• 3500 rack ejector latches and torque screwdriver set
• 3500/15 rack power supply module
• 3300 XL proximity probes, extension cables and mounting hardware
• 100M2833 USB configuration cable and 3500 configuration software
• 3500/22M Keyphasor module and phase reference transducer
• 3500/92 Modbus gateway or 3500/91 TDI module and shielded network cable
• Site wiring drawings, safety bypass forms and alarm proof-test documentation
