Bently Nevada 9200-01-01-10-00 Seismoprobe Velocity Vibration Sensor

Description

Bently Nevada 9200-01-01-10-00 Seismoprobe Velocity Vibration Sensor

Product Description

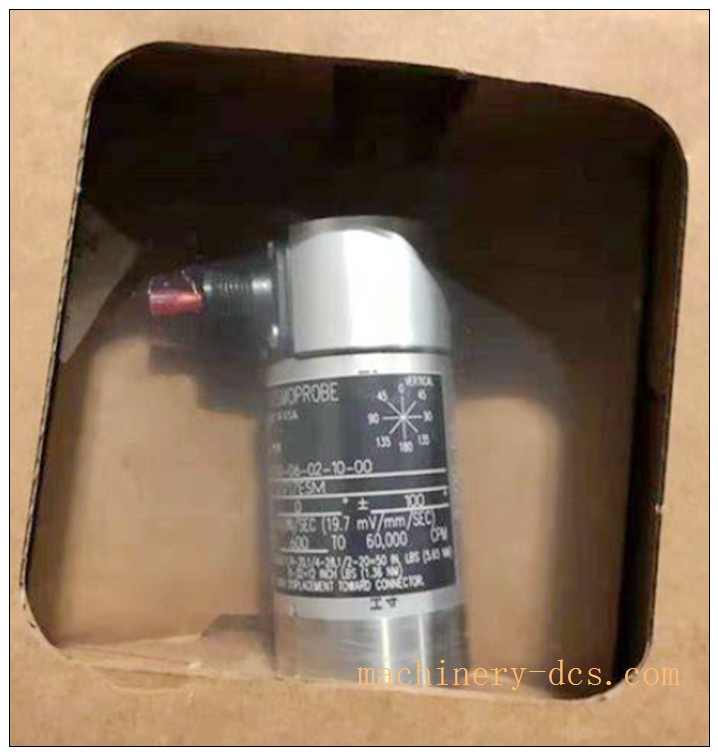

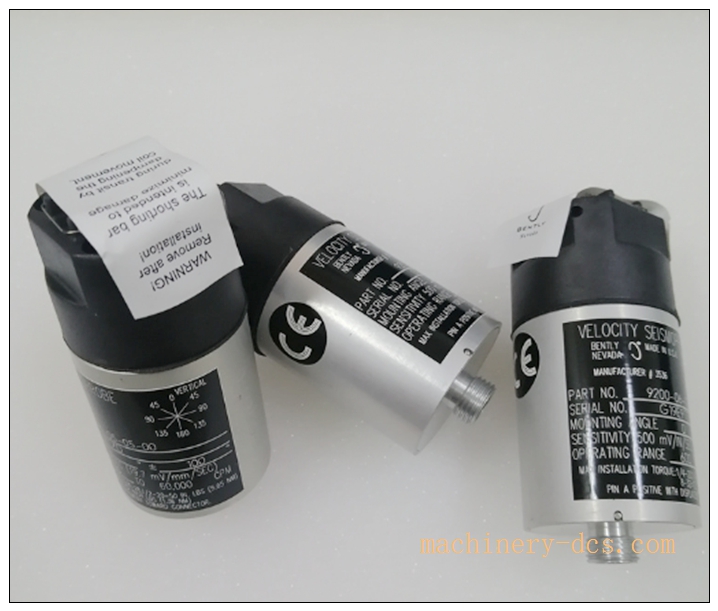

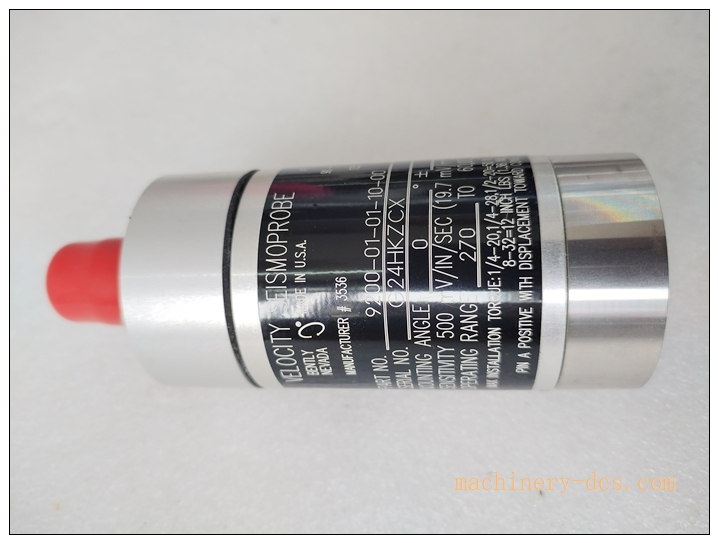

The 9200-01-01-10-00 is a Bently Nevada Seismoprobe two-wire linear velocity seismic vibration sensor, used to measure casing vibration of rotating machinery. It converts mechanical vibration velocity into standard 4–20mA analog output signal, which can be directly sent to vibration monitor, DCS or PLC analog input module. It is a surface-mounted seismic transducer, installed on bearing housing of fans, pumps, compressors and steam turbines, for machinery condition monitoring and vibration protection. The sensor has built-in seismic mass structure, strong anti-interference, stable long-term measurement performance, widely adopted in power, oil & gas and petrochemical machinery protection systems.

Technical Specifications

• Part Number: 9200-01-01-10-00
• Manufacturer: Bently Nevada (Bently)
• Series: 9200 Seismoprobe Velocity Sensor
• Device Type: Two-wire seismic velocity vibration transmitter
• Measurement Range: 0 ~ 10 mm/s (0–0.4 ips)
• Output Signal: 4–20mA two-wire loop
• Sensitivity: 200 mV/mm/s
• Mounting: Surface mounting, threaded stud mounting
• Power Supply: 18 ~ 30 VDC (nominal 24VDC)
• Operating Frequency Range: 4.5 Hz ~ 1 kHz
• Operating Temperature: -40°C ~ +85°C
• Storage Temperature: -50°C ~ +100°C
• Relative Humidity: 5%~95%, non-condensing
• Housing Material: Stainless steel
• Connector: 2-pin military style connector
• Weight: Approx. 0.34 kg
• Certifications: CE

9200-01-01-10-00

Key Features

1. Two-wire 4–20mA velocity vibration transmitter, simple field wiring
2. Seismic casing vibration measurement for bearing housing monitoring
3. Wide frequency response range, suitable for most rotating equipment vibration
4. Stainless steel rugged housing for harsh plant environment
5. Direct surface mounting on bearing pedestals, no need of probe gap adjustment
6. Strong anti-vibration and shock resistance, stable long-term operation
7. Compatible with Bently 3500/3300 monitoring systems or third-party DCS/PLC
8. Linear output, easy calibration and vibration threshold alarm configuration

Application Scenarios

• Thermal power plant steam turbine, boiler fan and pump casing vibration monitoring
• Oil & gas compressor, pump and turbine machinery protection
• Petrochemical large rotating equipment vibration condition monitoring
• Cement plant raw mill, kiln fan and heavy rotating machinery
• Water treatment large pump vibration protection
• Mining plant fan and crusher vibration monitoring
• Pulp & paper mill large motor and fan condition monitoring
• Refinery critical rotating machinery online vibration surveillance

Matching / Auxiliary Components

• Bently 3500 / 3300 vibration monitoring system
• 4-20mA analog input module (such as 1756-IF16, 1769-IF4I)
• 24VDC isolated power supply
• Shielded twisted pair instrument cable for 4–20mA loop
• Mounting studs and stainless steel mounting bracket
• Vibration monitoring configuration software
• Surge protection barrier for field side
• Junction box for sensor wiring termination

9200-01-01-10-00

Related Bently Nevada Vibration Sensor Series Models (9 pcs)

1. 9200-01-01-10-00 Seismoprobe Velocity Sensor
2. 9200-01-01-01-00 0–1 ips velocity sensor
3. 330103-00-08-10-02-00 3300 XL 8mm proximity probe
4. 330180-51-00 Proximitor Sensor
5. 330851-02-00-050-00-00 3300 XL 11mm probe
6. 3500/42M Vibration Monitor Module
7. 3500/45 Position Expansion Module
8. 177301-01 Bently accelerometer
9. 330704-000-060-05-02 Bently velocity transducer
