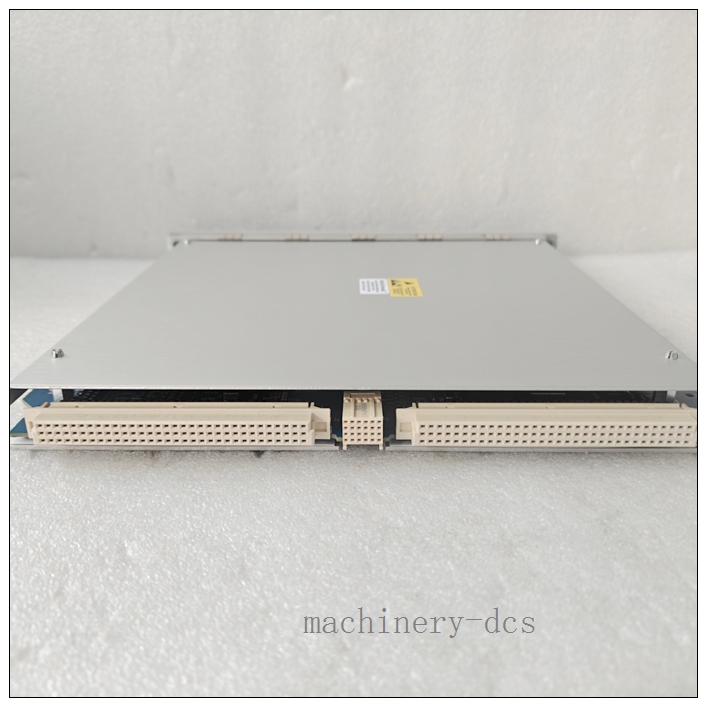

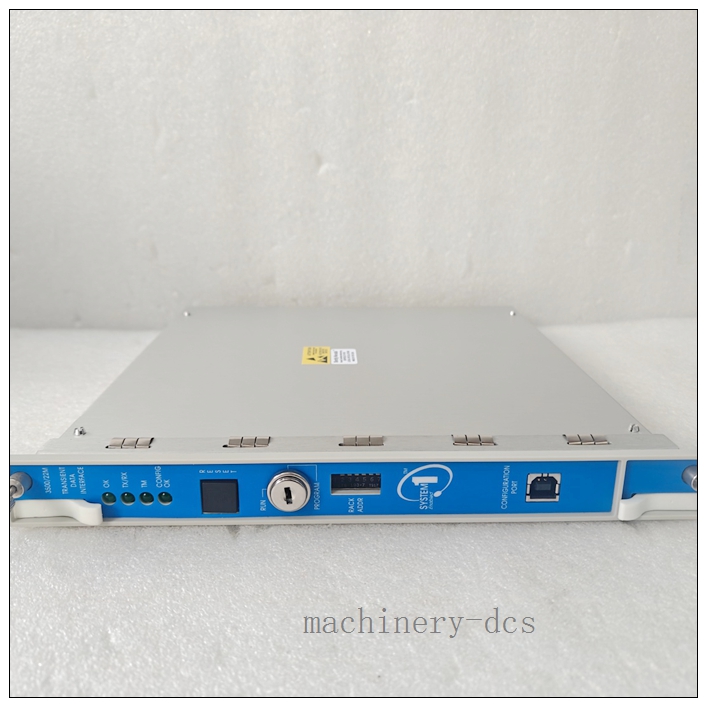

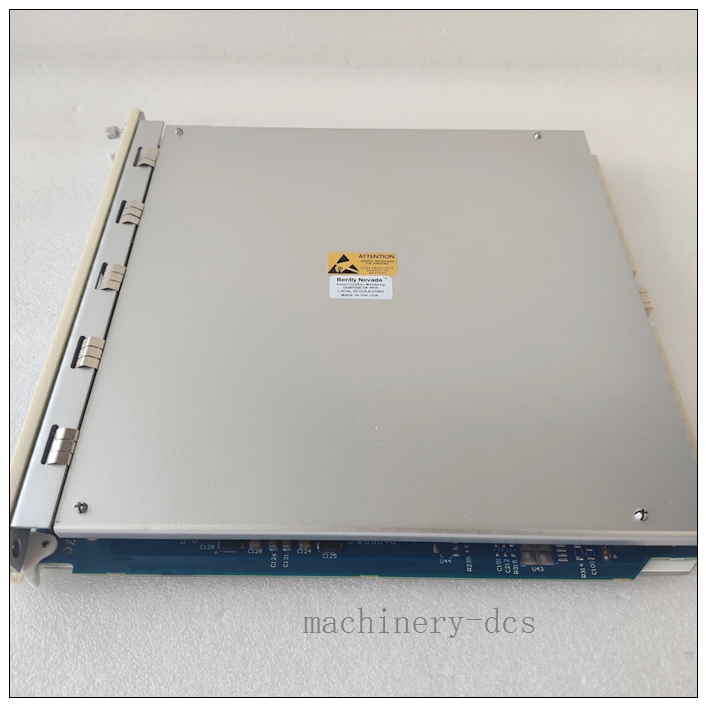

Bently Nevada 3500/22M 288055-01 Transient Data Interface (TDI) Module
Executive Brief
The Bently Nevada 3500/22M 288055-01 is a rugged, front-loading Transient Data Interface (TDI) Module purpose-built for the Bently Nevada 3500 Machinery Protection System. It acts as the dedicated high-speed communication bridge between the 3500 monitoring rack and external host software, enabling efficient transient data collection, real-time machinery condition monitoring and system diagnostics. It supports hot-swap replacement in redundant configurations, and is certified for deployment in harsh industrial hazardous areas. Brand new original units are in stock globally, with a standard 12-month manufacturer warranty.
350022M 288055-01
Core Technical Specifications
- Manufacturer: Bently Nevada (a Baker Hughes company)
- Exact Part Number: 288055-01
- Model: 3500/22M
- Product Category: Transient Data Interface (TDI) Module
- Product Origin: USA
- Power Consumption: 10.5 Watts
- Serial Communication Port: Front panel RS232, maximum baud rate 115.2 kbaud
- Copper Ethernet Interface: 10Base-T / 100Base-TX, auto-sensing
- Fiber Ethernet Interface: 100Base-FX Fiber-Optic Ethernet
- Operating Temperature Range: -30 °C to +65 °C (-22 °F to +149 °F)
- Storage Temperature Range: -40 °C to +85 °C (-40 °F to +185 °F)
- Humidity Tolerance: 95% non-condensing
- Battery Life (Powered TDI): 38 years @ 50°C (122 °F)
- Battery Life (Un-powered TDI): 12 years @ 50°C (122 °F)
- Hazardous Area Approval (Option 01): Class 1, Div 2, Groups A, B, C, D, T4, Ta = -20 °C to +65 ºC (-4 ºF to +150 ºF)
- Physical Weight: 800g
- Installation Method: Snaps directly into standard 3500 system chassis
- Built-in Diagnostics: Accessible via Rack Interface Module (RIM) or 3500/92 Communications Gateway
- Compliance: Meets industrial EMC, surge and thermal performance requirements
- Warranty: 12 months official manufacturer warranty for brand new original units
Key Features & Advantages
- Multi-interface High-speed Communication: Equipped with RS232 serial port, auto-sensing 10/100M copper Ethernet and 100Base-FX fiber Ethernet, adapting to various industrial field communication wiring scenarios.
- Hot-swap Redundancy Support: Supports hot-swappable on-site replacement in redundant configurations, no system shutdown required during maintenance, minimizing downtime.
- Built-in Intelligent Diagnostics: Integrated self-diagnostic functions accessible via RIM or 3500/92 gateway, making on-site fault diagnosis and maintenance extremely convenient.
- Harsh Environment Adaptability: -30 °C to +65 °C wide operating temperature range, 95% non-condensing humidity tolerance and Class 1 Div 2 hazardous area certification enable stable operation in extreme industrial environments.
- Ultra-long Battery Life: Up to 38 years of battery life at 50°C for powered TDI configuration, eliminating frequent battery replacement needs during the system’s full lifecycle.
- Native 3500 System Compatibility: Perfectly integrates with all Bently Nevada 3500 series machinery protection system modules, no additional adaptation work required for system deployment.
350022M 288055-01
Typical Application Scenarios
- Petrochemical Rotating Machinery Monitoring: Core data communication module for 3500 machinery protection systems on large compressors, pumps and turbines in refineries and chemical plants.
- Power Generation Turbine Condition Monitoring: High-speed data transmission unit for 3500 protection systems on steam turbines and gas turbines in thermal power and combined cycle power plants.
- Offshore Oil & Gas Platforms: Reliable transient data collection and transmission module for 3500 monitoring systems on offshore oil and gas production facilities.
- Mining & Metallurgical Equipment Monitoring: Data interface unit for 3500 protection systems on large motors, rolling mills and mining equipment in metallurgical and mining sites.
- Pipeline & Compressor Station Monitoring: Continuous high-speed data transmission for 3500 machinery protection systems on long-distance natural gas pipeline compressor stations.
Related Supporting Product Model Display
- Bently Nevada 3500 System Rack: Standard 3500 series system frame, providing dedicated installation slots for 3500/22M TDI modules.
- Bently Nevada 3500/92 Communications Gateway: Industrial communication gateway, working with 3500/22M to realize remote system diagnostics and data upload.
- Bently Nevada 3500/42M Vibration & Position Monitor: Core monitoring module that collects vibration and shaft position data, which is then transmitted to upper software via 3500/22M.
- Bently Nevada 3500/15 Series Power Supply Modules: AC/DC power supply units, providing stable power for 3500/22M and the entire 3500 system rack.
Frequently Asked Questions
Q1: What is the core function of Bently Nevada 3500/22M 288055-01?
A1: It is a Transient Data Interface (TDI) module that acts as the communication bridge between the 3500 monitoring system and external software for high-speed machinery data collection.
Q2: What communication interfaces does this module support?
A2: It supports RS232 serial port, 10/100Base-TX copper Ethernet and 100Base-FX fiber Ethernet.
Q3: Does 3500/22M 288055-01 support hot-swappable replacement?
A3: Yes, it supports hot-swap replacement in redundant configurations, no system shutdown required during maintenance.
Q4: What hazardous area certification does this module have?
A4: It is certified for Class 1, Division 2, Groups A, B, C, D, T4 hazardous area deployment.
Q5: What is the standard warranty period for brand new original units?
A5: All brand new original 288055-01 modules come with a 12-month official manufacturer warranty.
