Bently Nevada 176449‑02 3500/42M Mixed‑Input Proximitor‑Seismic Monitor Module

Description

Bently Nevada 176449‑02 3500/42M Mixed‑Input Proximitor‑Seismic Monitor Module

Meta‑Description

Bently Nevada 176449‑02 is the 3500/42M four‑channel mixed‑input monitor for 3500 machinery protection rack. Each channel can be independently configured for 3300‑XL proximity probe or 330400‑series piezoelectric accelerometer inputs, supporting shaft‑relative vibration and casing seismic monitoring, hot‑swap capable, API‑670 compliant for turbines, compressors and rotating asset protection.

Product Core Overview

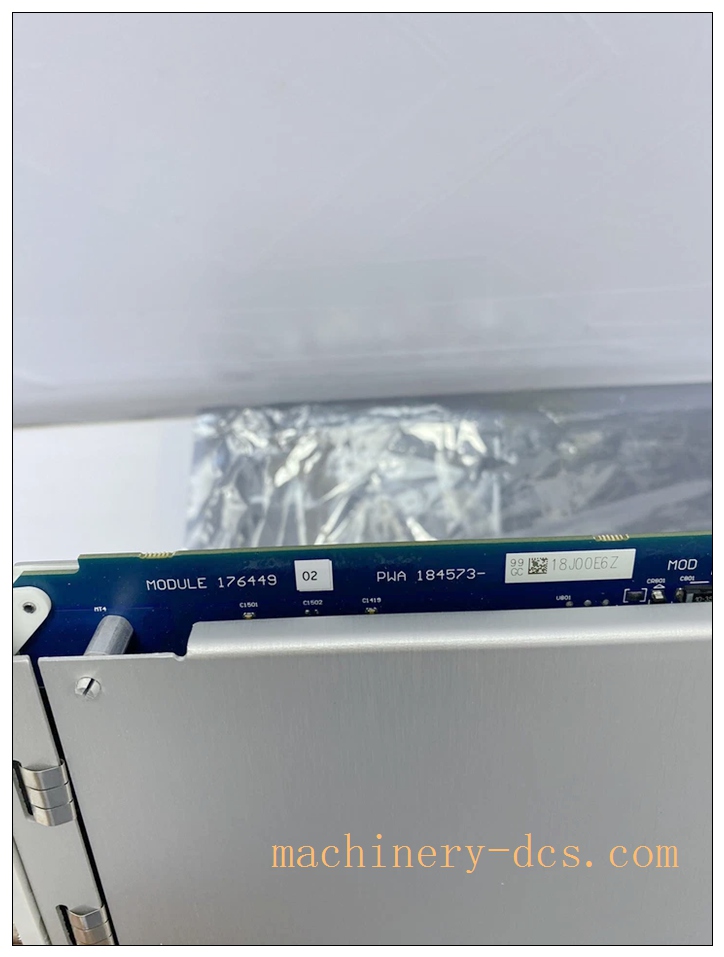

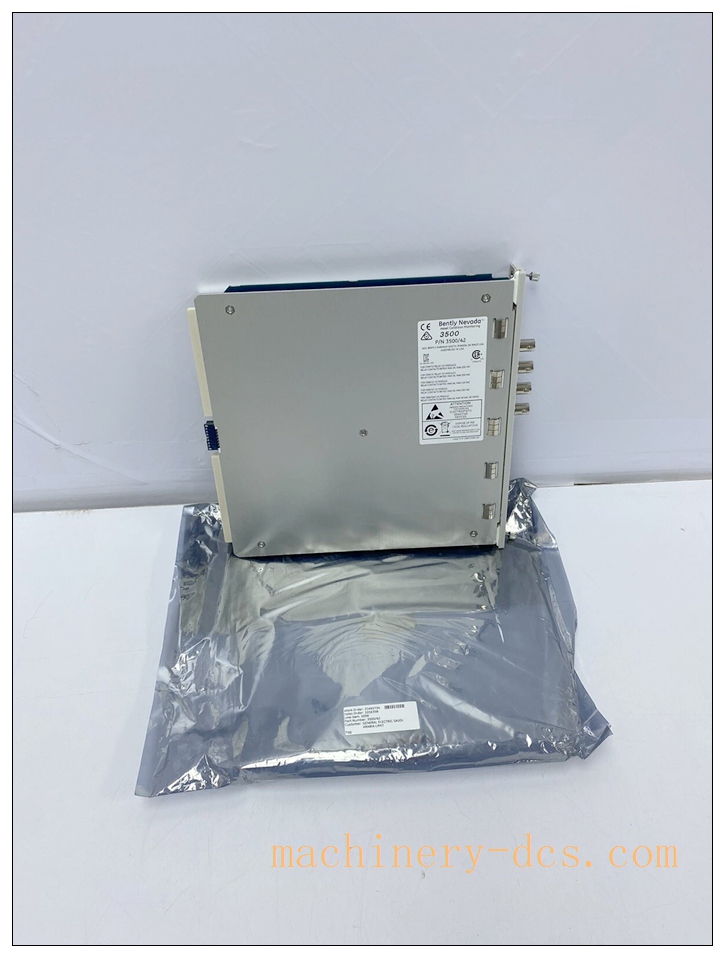

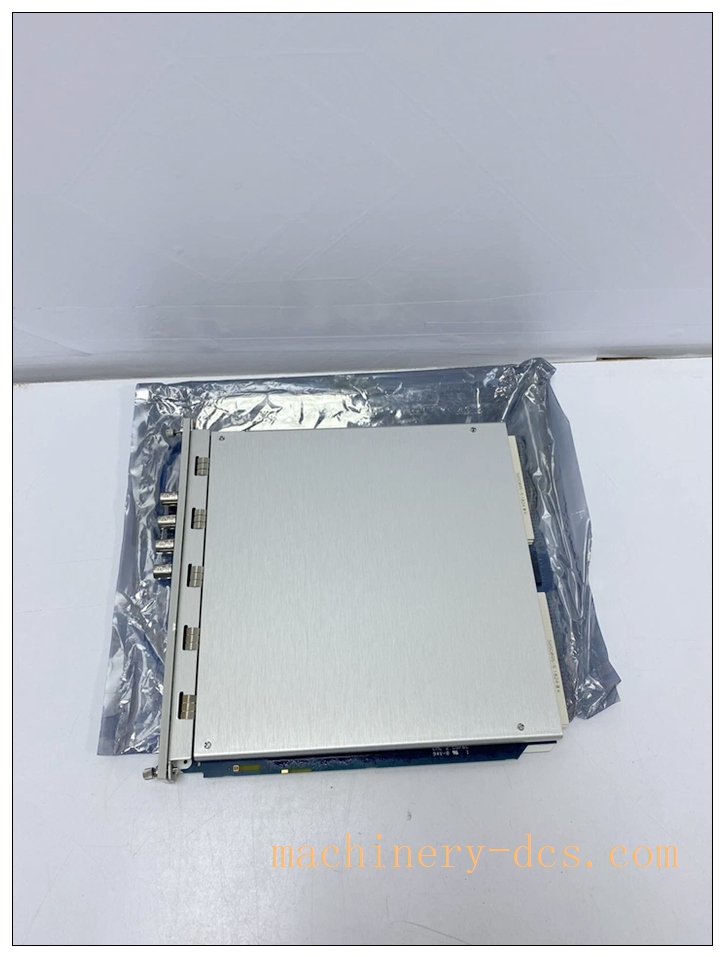

The 176449‑02 corresponds to Bently Nevada 3500/42M monitor module, a hot‑swappable multi‑function protection card for the 3500 rack‑based machinery protection system. Its four channels support independent channel type configuration: each channel may be set for eddy‑current proximity probe inputs or three‑wire piezoelectric accelerometer seismic inputs, eliminating the need for separate dedicated proximitor‑only and seismic‑only monitor cards in one rack.

When configured as proximitor channel, it processes 3300‑XL transducer signals for shaft radial vibration, thrust position and eccentricity. When set to seismic mode, it accepts −24 V DC powered 330400 / 330425 accelerometer signals for casing acceleration, velocity and displacement monitoring. Every channel features user‑programmable Alert and Danger alarm thresholds. All measurement data, status and alarm events are transmitted over the rack backplane bus to system communication modules for HMI visualization, event logging and relay triggering. Widely deployed in power, petrochemical and oil‑gas plants for comprehensive rotating‑machinery protection of turbines, compressors, gearboxes and large pumps.

176449‑02

Main Technical Specifications

Quality Control Procedures

1. Visual & Mechanical Incoming Inspection: Full visual inspection of PCB components, front‑panel hardware, connectors and serial number labeling. Unique serial number is recorded for full‑lifecycle traceability.
2. Backplane Connector Test: Verify pin integrity, continuity and isolation performance for rack backplane interface.
3. Dual‑Mode Channel Calibration: Each channel is calibrated under both proximitor input mode and seismic input mode. Simulated probe gap signals and accelerometer output signals are injected to validate measurement accuracy, scaling and sensitivity parameters.
4. Alarm‑Logic Verification: Simulate over‑range and fault conditions to test Alert / Danger threshold triggering, latching behaviour and alarm reporting via backplane bus.
5. Communication Interface Validation: Confirm stable data exchange between mixed‑input monitor and 3500 system communication module.
6. Environmental Stress Screening: Temperature‑cycle testing across operating temperature range to validate thermal stability.
7. EMC Performance Test: Simulate cabinet‑level electromagnetic interference to guarantee stable operation in noisy industrial control environments.
8. Final End‑of‑Line Validation & Archiving: Complete functional test suite executed before release; all test data is archived linked to unit serial number.

Related Brand Model Recommendations

1. 176449‑01 (3500/40M): 4‑channel pure proximitor monitor, only for 3300‑XL proximity probe systems, no seismic‑input capability.
2. 176449‑09 (3500/70M): Velocity‑dedicated seismic monitor module for velocity‑type transducers.
3. Matched Transducers: 3300‑XL proximity probe series; 330400‑02‑05‑00 / 330425 piezoelectric accelerometers; 138607‑xx accelerometer cables.
4. System Accessories: 3500 communication module, relay output modules, rack power supplies, external termination blocks.

Frequently Asked Questions (FAQ)

Q1: Can individual channels run in different modes on one 176449‑02 module? A: Yes. Each of the four channels can be independently set to either proximitor mode or seismic mode. One card can handle both shaft‑relative and casing‑vibration signals simultaneously.

Q2: Does this module support hot‑swap? A: Yes. Hot‑swap function is supported. Module can be inserted or removed while 3500 rack remains powered. Configuration parameters are stored in rack non‑volatile memory rather than on the module hardware.

Q3: What power is provided for seismic accelerometers? A: When channel is set to seismic mode, the monitor provides −24 V DC excitation power required for 3‑wire built‑in charge‑amplified accelerometers such as 330400 series.

Q4: Can I use velocity‑output seismic sensors directly? A: 3500/42M is optimized for piezoelectric accelerometer inputs. For velocity‑sensor dedicated measurement, select 3500/70M (176449‑09).

Q5: What happens if I mix proximitor and seismic wiring on same channel? A: Improper wiring will cause measurement failure, signal saturation or hardware damage. Confirm channel configuration matches field wiring before power‑on.

Q6: Is on‑site repair permitted? A: No. This is factory‑calibrated integrated PCB assembly. Unauthorized disassembly voids certification and calibration status. Return defective units to authorized service centre.

176449‑02

Installation & Configuration Guide

Pre‑Installation

1. Inspect module for transportation damage. Confirm part number 176449‑02 and serial‑number consistency with purchase order.
2. Confirm available slot in 3500 rack; verify rack power supply and communication module work normally.
3. Prepare field transducers: 3300‑XL proximity probe‑proximitor assemblies or 330400‑series accelerometers with matched factory cables. Prepare external termination wiring.
4. Review machinery protection drawing to define each channel’s measurement type, sensitivity, full‑scale range and alarm set‑points.

Mechanical Installation

1. Insert 176449‑02 into vacant 3500 rack slot, push firmly until backplane connector fully mates. Tighten front‑panel captive screws.

Hot‑swap is allowed; rack power may remain active during replacement.

Electrical Wiring

1. Route transducer cables to external termination blocks. Follow site single‑point grounding specifications to avoid ground‑loop noise.
2. Strictly separate wiring for proximitor channels and seismic channels. Do not cross‑connect transducer types to mismatched channels.
3. Complete continuity and insulation resistance check before applying field signals.

System Configuration & Commissioning

1. Launch 3500 configuration software and connect to rack communication module.
2. Add 3500/42M module to corresponding rack slot position.
3. Configure every channel individually: select input type (proximitor / seismic), set transducer sensitivity, full‑scale measuring range, Alert / Danger alarm thresholds and delay parameters. Download configuration to rack non‑volatile memory.
4. For proximitor channels: perform probe gap adjustment, verify gap reading matches mechanical installation gap.
5. For seismic channels: perform tap / bump test on accelerometer housing to confirm real‑time vibration signal response.
6. Verify alarm trigger logic works as designed. Save and back‑up rack configuration file, then place system into formal machinery‑protection operation.
