Bently Nevada 136719-01 Internal Barrier Ground / Power Module

Description

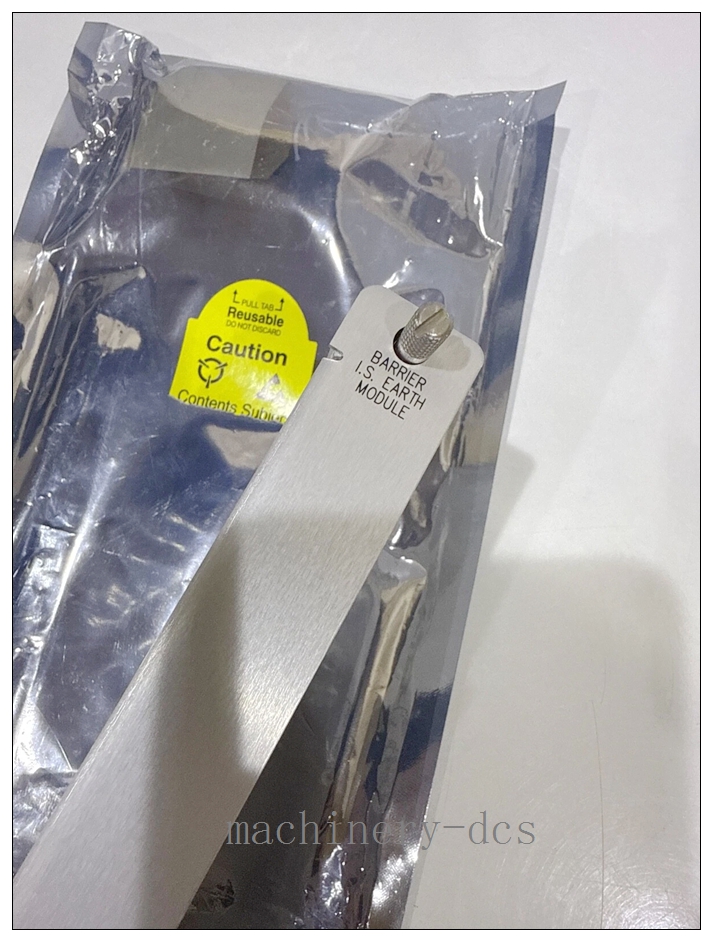

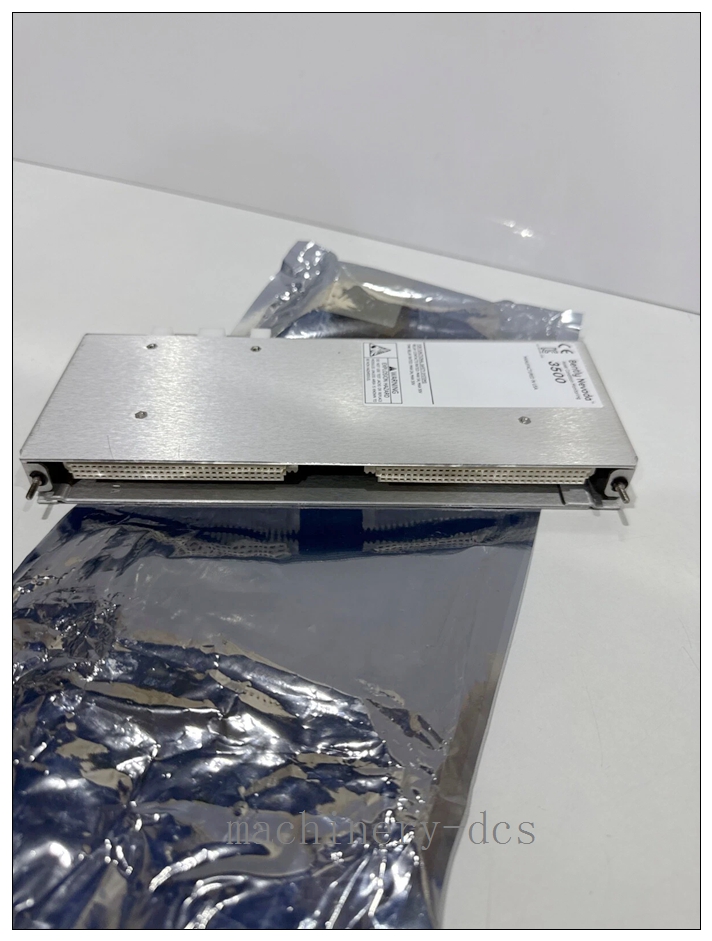

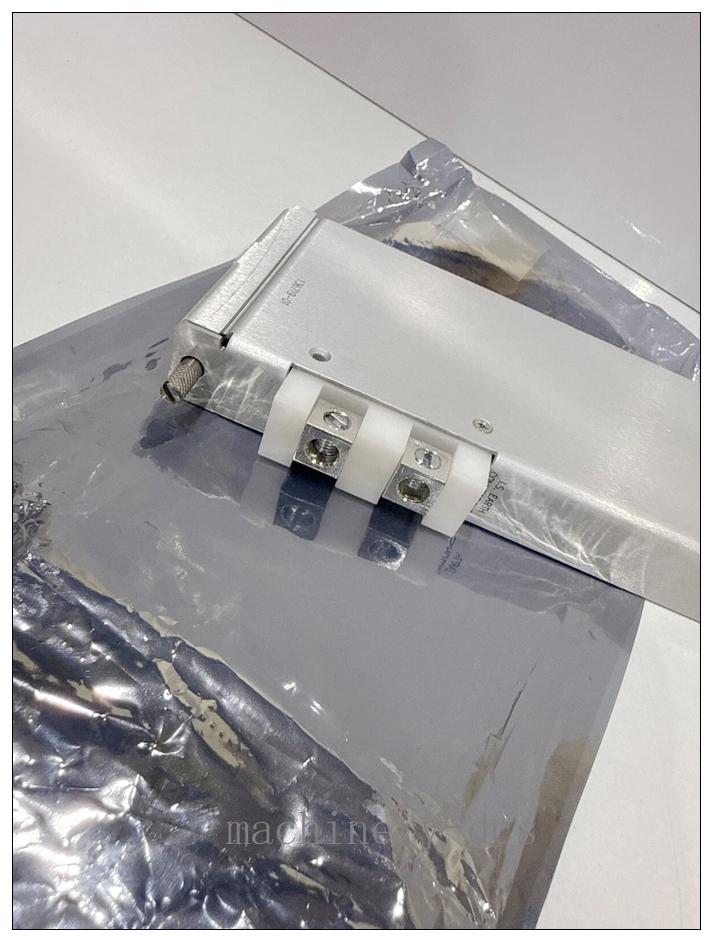

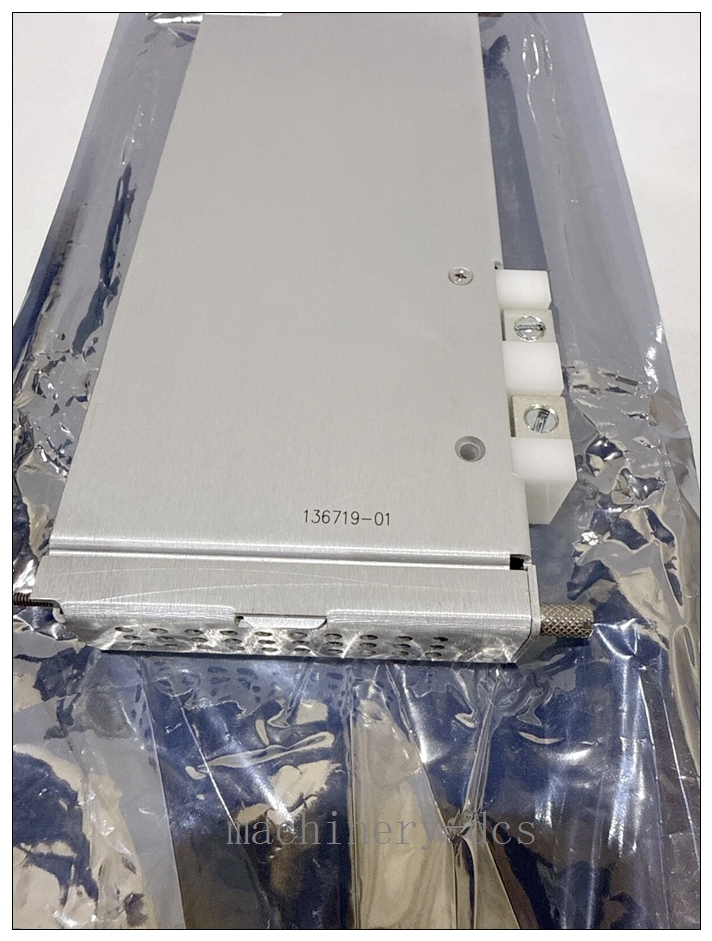

Bently Nevada 136719-01 Internal Barrier Ground / Power Module

Executive Brief

The Bently Nevada 136719-01 is a critical dedicated internal barrier ground and power distribution module for the 3500 Machinery Protection System, specifically designed to provide intrinsic safety barrier grounding and stable power supply for 3500/04 monitor modules deployed in hazardous industrial areas. It ensures the integrity of intrinsically safe installations, making it a core safety component for rotating machinery protection systems in high-risk industrial scenarios.

136719-01

Core Technical Specifications

1. Manufacturer: Bently Nevada (Baker Hughes)
2. Exact Part Number: 136719-01
3. Product Category: Internal Barrier Ground / Power Module (Barrier Earth Module)
4. Product Series: 3500 Machinery Protection System
5. Product Origin: USA
6. Condition: Brand new with original factory packaging
7. Warranty: 12 months official manufacturer warranty
8. Compatible Monitor: 3500/04 and related intrinsically safe I/O modules
9. Operating Temperature Range: -30 °C to +65 °C (extended industrial operating range)
10. Relative Humidity: 0% to 95% non-condensing
11. Maximum Voltage (Um): 250 V
12. Operating Voltage (Uo): 7.71 V
13. Operating Current (Io): 89.17 mA
14. Internal Capacitance (Co): 9.3 μF
15. Internal Inductance (Lo): 4.55 mH
16. Output Power (Po): 132 mW
17. Temperature Accuracy: ±1 °C at +25 °C, ±15 °C across full operating range
18. Phase Accuracy: -11° at 10 kHz
19. Compliance & Certification: API 670 standard, CE certified, intrinsic safety certified
20. Mounting: Directly installed in standard 3500 series system frame

Key Features & Advantages

• Dedicated Intrinsic Safety Protection: Built-in internal safety barrier design strictly limits the energy transmitted to field devices in hazardous areas, eliminating the risk of igniting flammable gases or dust.
• Integrated Grounding & Power Distribution: Combines safety barrier grounding and stable power distribution functions in one unit, simplifying system wiring and reducing installation complexity.
• 3500 System Native Compatibility: Perfectly matches 3500/04 monitor modules and other intrinsically safe I/O units, no additional adaptation work required for system integration.
• Harsh Environment Adaptability: Wide -30 °C to +65 °C operating temperature range and 0-95% non-condensing humidity tolerance enable stable operation in extreme industrial field environments.
• Strict Industry Standard Compliance: Fully compliant with API 670 machinery protection standards and CE intrinsic safety certification, meeting the strict safety requirements of global high-risk industries.
• High Reliability Industrial Design: Robust construction and high-quality components ensure long-term 24/7 continuous operation, consistent with the 3500 system’s mission-critical positioning.

Typical Application Scenarios

1. Oil & Gas Hazardous Area Monitoring: Core safety component for 3500 machinery protection systems deployed in Zone 1/Zone 2 hazardous areas of oil refineries and onshore oil fields.
2. Offshore Oil Platform Protection: Intrinsically safe grounding and power distribution unit for 3500 systems on offshore oil and gas production platforms.
3. Chemical Processing Facilities: Safety barrier module for rotating machinery monitoring systems in chemical plants with flammable and explosive process media.
4. Power Generation Hazardous Zones: Supporting safety component for 3500 turbine protection systems in hazardous areas of thermal power and combined cycle power plants.
5. Mining & Metallurgical Sites: Intrinsically safe protection unit for 3500 monitoring systems in underground mining and metallurgical production facilities with explosive dust environments.

Related Supporting Product Model Display

1. Bently Nevada 3500/04 Monitor Module: The intrinsically safe monitor module that 136719-01 is specifically designed to support, for field signal acquisition in hazardous areas.
2. Bently Nevada 3500 System Rack: Standard 3500 series system frame, providing physical installation slots for 136719-01 and other functional modules.
3. Bently Nevada 3500/15 Power Supply Module: Redundant system power supply unit, providing stable input power for 136719-01 and the entire 3500 system.
4. Bently Nevada 3500/22M Transient Data Interface: System communication and data transmission module, uploading the monitoring data processed by 3500/04 to the upper monitoring platform.

Frequently Asked Questions

Q1: What is the core function of Bently Nevada 136719-01?
A1: It provides internal safety barrier grounding and power distribution for 3500/04 monitor modules in hazardous areas, ensuring intrinsic safety of field installations.

Q2: Which 3500 series modules is 136719-01 compatible with?
A2: It is natively compatible with 3500/04 monitor modules and all related intrinsically safe I/O modules in the 3500 system.

Q3: What is the operating temperature range of this module?
A3: It supports an extended industrial operating temperature range from -30 °C to +65 °C, adapting to extremely harsh industrial site environments.

Q4: Does 136719-01 meet international industry safety standards?
A4: Yes, it fully complies with API 670 machinery protection standards, and has obtained CE certification and intrinsic safety certification.

Q5: What is the standard warranty period for brand new original units?
A5: All brand new original 136719-01 modules come with a 12-month official manufacturer warranty.
