ABB SC520 (3BSE003816R1) Submodule Carrier with Local CPU for Advant OCS / AC400 Controller System

Description

ABB SC520 (3BSE003816R1) Submodule Carrier with Local CPU for Advant OCS / AC400 Controller System

Product Details

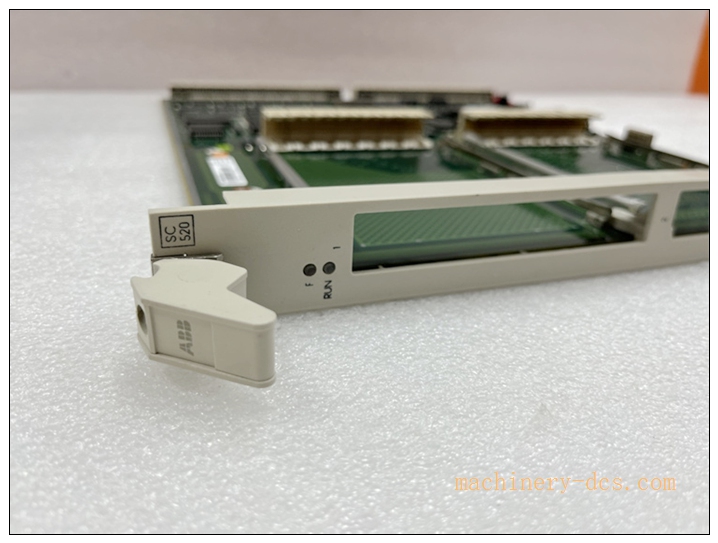

The SC520, part number 3BSE003816R1, is an intelligent submodule carrier board with integrated local CPU for ABB Advant OCS and AC400 controller platforms. This Eurocard‑format rack‑mount module provides dual sub‑slot positions for MB300 / MB300E series communication and I/O sub‑modules, expanding the main controller’s communication and peripheral interface capacity. Equipped with built‑in 32‑bit RISC processor and onboard memory resources, it undertakes local data processing, sub‑module management and distributed data pre‑processing, effectively reducing the computation load of main CPU. It communicates with Advant main controller via backplane bus, supports hot‑swap of installed sub‑modules. Multiple front‑panel LED indicators show power status, running state and fault alarm information. It is an EOL‑obsolete hardware, widely used as spare‑part and retrofit replacement for legacy petrochemical, power and pulp‑paper Advant OCS DCS racks.

Applications

‑ Power plant boiler‑turbine Advant OCS DCS system expansion ‑ Petrochemical and refinery distributed control system interface expansion ‑ Pulp & paper mill legacy AC400 controller peripheral communication extension ‑ Chemical plant process‑control cabinet sub‑module carrier application ‑ Metallurgy industry old‑generation DCS system spare‑part replacement ‑ Water‑wastewater treatment Advant OCS automation retrofit projects ‑ Multi‑protocol communication gateway expansion for Advant controller units

SC520 3BSE003816R1

Related Series Models (6+)

1. SC520M (3BSE016237R1)
2. DSPC172
3. DSCL110A
4. DSCS110A
5. DSBC172
6. DSAX110A
7. DSDX110A

Key Features

1. Dedicated intelligent submodule carrier with integrated local 32‑bit RISC CPU for Advant OCS / AC400 controllers.

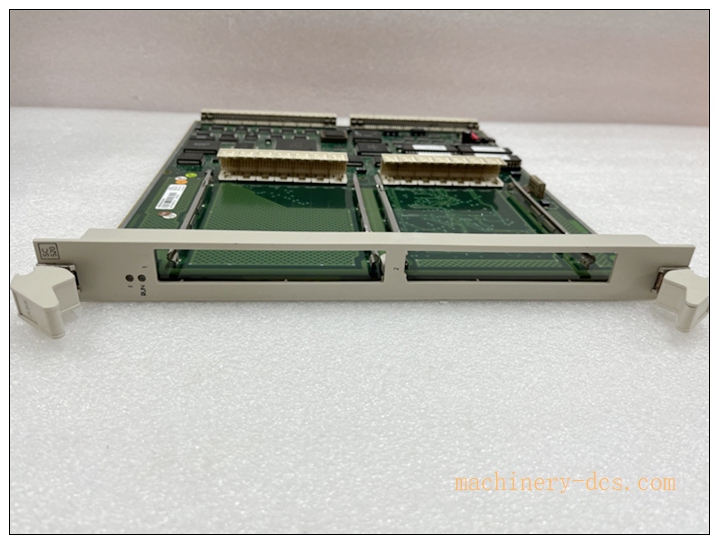

2. Dual sub‑slot hardware design, supports MB300 / MB300E sub‑modules for flexible communication and I/O expansion.
3. Local data pre‑processing capability, offloads partial computing tasks from main CPU to improve overall system response performance.
4. Supports hot‑swap replacement of sub‑modules without interrupting DCS running control logic.
5. Standard Eurocard plug‑in rack‑mount structure, seamlessly installs on Advant OCS backplane bus.
6. Built‑in comprehensive self‑diagnostic function, monitors carrier itself and inserted sub‑module working status.
7. Front‑panel multi‑LED status indicators for quick visual diagnosis of operation and fault conditions.
8. Industrial‑grade hardware, adapts to long‑term 24‑7 continuous‑operation in harsh factory electromagnetic‑interference environment.

SC520 3BSE003816R1

Main Functions

1. Provide physical carrier and signal interface for MB300 / MB300E communication and I/O sub‑modules.
2. Execute local data pre‑processing and logic calculation through integrated local CPU, easing main controller computation burden.
3. Manage and detect status of inserted sub‑modules, realize data exchange between sub‑modules and Advant main CPU via backplane bus.
4. Support hot‑swap operation for sub‑modules, finish maintenance without system shutdown.
5. Collect fault diagnostic information of carrier board and sub‑modules, report alarm events to host DCS controller.
6. Visualize power‑on status, running condition and fault signals by front‑panel LED lamps for on‑site maintenance personnel.
7. Expand multi‑protocol communication capacity for Advant OCS controllers, realize connection with third‑party field devices.
8. Cooperate with DSPC172 and other main processor modules to complete whole‑set Advant OCS distributed control architecture.
