Description

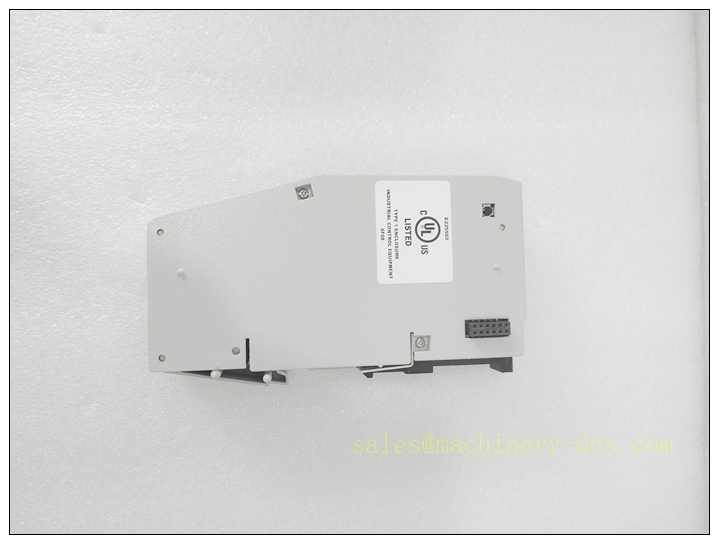

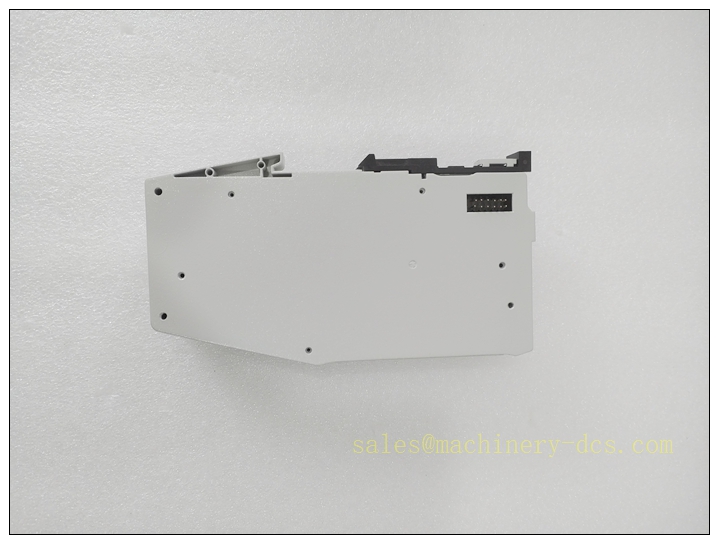

ABB RIO600 Modular DIN‑Rail Remote I/O Unit for Relion IED & IEC 61850 Substation Automation
Product Introduction
The ABB RIO600 is a stackable modular remote I/O platform developed for medium‑voltage substation automation and grid distribution applications. It serves as distributed signal expansion hardware for ABB Relion® protection & control IEDs and COM600 substation gateway. Built on a flexible DIN‑rail stacking architecture, the system combines power supply, communication module and mixed I/O slices to collect field binary status, analog measurement and temperature signals, then transmits real‑time data via high‑speed Ethernet. Native support for IEC 61850 GOOSE and Modbus‑TCP enables fast peer‑to‑peer interlocking between switchgear, protection relays and upper SCADA. It can implement Fault Passage Indication (FPI) for distribution network fault localization, greatly reducing heavy hardwiring inside switchgear cubicles. Widely deployed in primary & secondary substations, RIO600 is commonly stocked as spare assembly and upgrade component for digital substation retrofit projects.
RIO600
Specific Application Information
- Protection relay I/O expansion: Increase binary input & output channels for Relion series IEDs (REC615, REF615 etc.) inside MV switchgear.
- Switchgear status acquisition: Collect circuit breaker, disconnector and earthing switch position feedback signals.
- Remote interlock execution: Receive GOOSE trip/blocking commands from protection relays to drive switchgear auxiliary circuits.
- Distribution fault detection: Directional Fault Passage Indication (FPI) for overhead lines and cable feeders to locate short‑circuit & earth faults.
- Power parameter monitoring: Measure current, voltage, active/reactive power and power quality with lightweight MV sensors.
- Temperature monitoring: RTD Pt100 measurement for cable joints, busbars and transformer auxiliary temperature points.
- Station data forwarding: Upload field signals to COM600, RTU and central SCADA system via Modbus TCP protocol.
- Motorized switch control: Smart control of two‑position / three‑position disconnectors and earthing switches.
Technical Parameters
| Parameter | Specification |
|---|---|
| Product Name | RIO600 Remote I/O Unit |
| Mounting | Standard 35 mm DIN rail horizontal stacking |
| Max I/O Scale | 20 binary I/O (single PSM_H); up to 40 binary I/O (dual redundant PSM_H) |
| Communication Protocols | IEC 61850‑8‑1 GOOSE, Modbus TCP |
| Ethernet Port | Galvanic isolated RJ45 10/100 Mbps; optional multimode LC optical fiber interface |
| Digital Input Modules | DIM8_H (high voltage 8‑channel DI), DIM8_L (low voltage 8‑channel DI), optically isolated |
| Digital Output Module | DOM: 4‑channel potential‑free relay contacts |
| RTD / Analog Module | 4‑channel RTD Pt100 / 0‑20mA analog input module |
| Power Supply Module | PSM_H high voltage, PSM_L low voltage, redundant power configuration supported |
| Operating Temperature | -40°C ~ +70°C |
| Isolation | Galvanic isolation between field circuits and Ethernet communication bus |
| Engineering Tool | PCM600 configuration & diagnostic software |
Main Features
✅ Modular stacking architecture: Mix‑and‑match power, communication, DI, DO and temperature slices to customize I/O quantity. ✅ IEC 61850 Edition 2 compliant: Fast GOOSE peer‑to‑peer signal exchange for substation interlock logic. ✅ Built‑in Fault Passage Indication: Directional fault detection for distribution network to accelerate power restoration. ✅ Redundant power supply option: Dual PSM_H configuration improves system availability for critical feeders. ✅ Optical Ethernet optional: Fiber communication variant achieves long‑distance transmission and strong EMI immunity. ✅ Channel status LED indicators: Visual per‑channel status and module ready LED for fast on‑site troubleshooting. ✅ Lightweight sensor compatibility: Interfaces with ABB low‑power current/voltage sensors for digital MV switchgear. ✅ Reduced cubicle wiring: Distributed I/O installation directly inside switchgear cuts long multi‑core cable runs to central relay room.
Application Scenarios
- Medium‑Voltage Switchgear Cubicles: Distributed I/O for breaker and disconnector status monitoring & control.
- Primary & Secondary Distribution Substations: I/O extension for Relion protection relays.
- Distribution Automation Networks: Fault passage indication for overhead and underground cable feeders.
- Digital Substation Retrofit Projects: Upgrade conventional switchgear into IEC61850 intelligent secondary equipment.
- Ring Main Unit (RMU) Automation: RMU digital transformation for smart grid remote monitoring.
- Transformer Auxiliary Monitoring: RTD temperature collection for busbars and transformer winding auxiliary points.
- Industrial Power Distribution Plants: Substation automation for large chemical, mining and manufacturing sites.
Supporting Components
- PSM_H / PSM_L power supply module

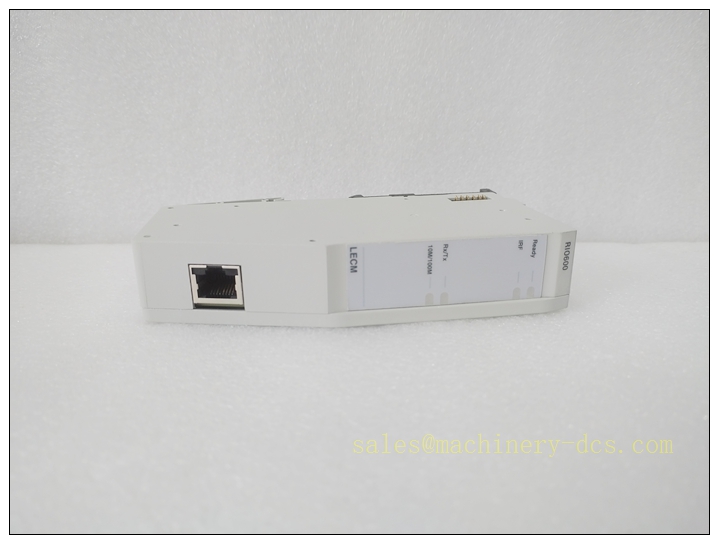

- LECM electrical Ethernet communication module; LECMFO fiber communication variant
- DIM8_H high voltage digital input module
- DIM8_L low voltage digital input module
- DOM digital output relay module
- RTD4 analog temperature input module
- ABB Relion protection IED (REC615, REF615)
- COM600 substation automation gateway
- PCM600 engineering & diagnostic software
- Shielded CAT5e Ethernet cables, fiber patch cords, DIN rail end clamps
Related Series Models (ABB RIO600 & Relion Substation I/O Family, 8 Models)
- PSM_H — RIO600 High‑Voltage Power Supply Module
- LECM — Electrical Ethernet Communication Module
- LECMFO — Multimode Fiber Optic Communication Module
- DIM8_H — 8‑Channel High‑Voltage Digital Input Module
- DIM8_L — 8‑Channel Low‑Voltage Digital Input Module
- DOM — 4‑Channel Digital Relay Output Module
- RTD4 — 4‑Channel RTD & 0‑20mA Analog Input Module
- SMU615 — ABB Substation Merging Unit for IEC61850‑9‑2LE process bus
